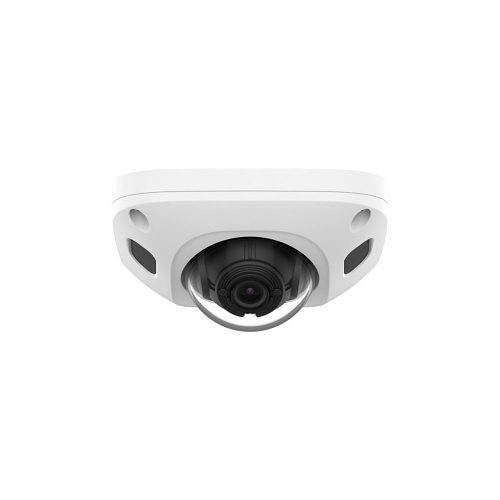

Hanwha TNV-C8034RM 5MP Mobile IR Flat Camera
5MP Mobile IR Flat Camera
$889.00 USD
T Series, Mobile IR vandal dome camera, 5MP, (2592×1944) 30fps, fixed focal Lens 6mm (H:50°/V: 37°), triple codec H.265/H.264/MJPEG with WiseStream III technology, WiseNRⅡ(Based on AI engine), built in mic, 120dB WDR, IR viewable length 30m(98.43ft), Motion detection based on AI engine, Analytics events based on AI engine: Classified object type: [Person/Vehicle]; Attributes: Vehicle [Type and color: (car/bus/truck/motorcycle/bicycle)], Person [upper and bottom clothing color]; BestShot, Virtual line, Virtual area], defocus detection, shock detection, hallway view, Heater, DIS with built-in Gyro sensor, Dynamic privacy masking, built-in SD card slot (1x256GB), IP66, IK10, Operating temperature: -40°C~+55°C(-40°F~+131°F), M12 Network connector (M12 to RJ-45 adaptor is not included). OnCloud Compatible.
Available as Hanwha Vision part number TNV-C8034RM.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps(@5MP Max. 5fps) |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.03 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.003 |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 6.0 |
| Max Aperture Ratio (F number) — Wide | 1.65 |
| Angular Field of View — Horizontal | 50° |
| Angular Field of View — Vertical | 37° |
| Angular Field of View — Diagonal | 64° |
| Min. Object Distance | 2.0m(6.56ft) |
| Focus Control | Fixed |
| Lens Type | Fixed iris |
| Mount Type | M12 |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | ±5° |
| Pan / Tilt / Rotate Range — Tilt | 0°~67° |
| Pan / Tilt / Rotate Range — Rotate | ±90° |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR, ClearHDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter — Speed Range | 1/5~1/25,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Triggers | Analytics, Network disconnect, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in), Built-in mic |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | 30m(98.42ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Vehicle |
| Attributes — Person | Upper/Lower clothes color |
| Attributes — Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Analytics Events — Normal | Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence — Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Specification | Value |
|---|---|
| Ethernet | M12 |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamⅢ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 5 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 2GB |
| Memory — Flash | 1GB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition — Humidity | 0~100% RH(condensing) |
| Operating Condition — Others | Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition — Temperature | -40°C~+55°C(-40°F~+131°F) |
| Storage Condition — Humidity | 0~95% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption — PoE | Max. 7.2W, typical 4.2W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum, Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions | 106x105x55mm(4.17x.4.13×2.17") |
| Product Weight | 466g(1.03 Ib) |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, EN 50121-3-2 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, EN 50155, IEC 62236-4, EN 50121-4, JIS E 4031, EN 50498, IEC/EN 61373, EN 45545, JIS E 5006, IEC 62236-3-2 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 111.2m(364.74ft) |
| Observe (63PPM/ 19PPF) — Wide | 44.5m(145.89ft) |
| Recognize (125PPM/ 38PPF) — Wide | 22.2m(72.95ft) |
| Identify (250PPM/ 76PPF) — Wide | 11.1m(36.47ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202411 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
