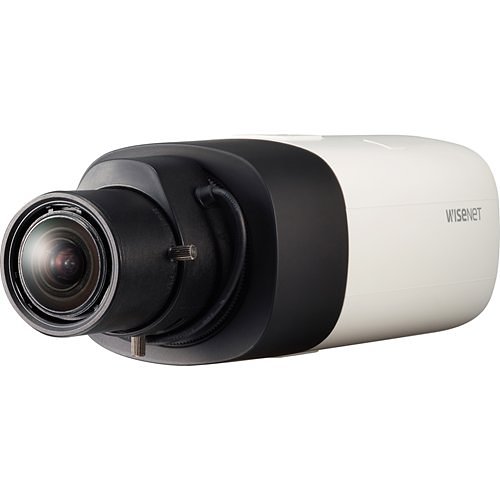

Wisenet X powered by Wisenet 5 network box camera, 2MP, Full HD(1080p) @60fps, simple focus, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, true D/N, dual SD card, hallway view, HLC, defog detection, DIS(Gyro), 12VDC/24VAC/PoE
Available as Hanwha Vision part number XNB-6000.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.01 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.001 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focus Control | Simple focus |
| Lens Type | DC auto iris, Manual, I-CS, P iris |
| Mount Type | C mount, CS mount |
| Optional Lens | SLA-M2890DN, SLA-M2890PN |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm Interface — In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP |
| Audio In | Selectable(mic in/line in), Built-in mic |
| Audio Out | Line out |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamâ…¡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 1GB |
| Memory — Flash | 256MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -10°C~+55°C(+14°F~+131°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC |
| Power Consumption — PoE | Max. 7.5W |
| Power Consumption — 12VDC | Max. 6.5W |
| Power Consumption — 24VAC | Max. 9W |
Mechanical
| Specification | Value |
|---|---|
| Color | Ivory, Black |
| Material | Plastic |
| Product Dimensions | 73.1(W)x66.6(H)x147.8(D)mm(2.88×2.62×5.82") |
| Product Weight | 420g(0.93lb) |
Ver
| Specification | Value |
|---|---|
| Ver | 202506 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
