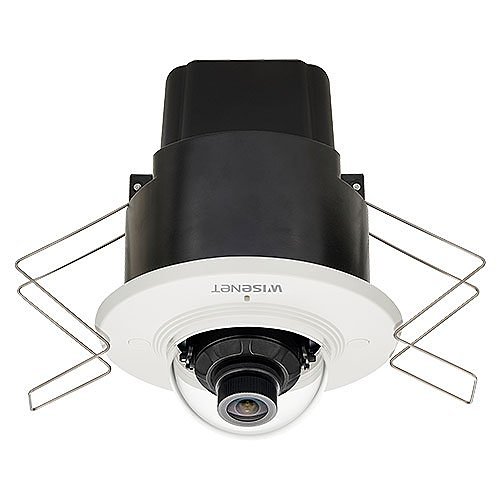

Hanwha XND-8020F 5MP Flush Mount
,

Hanwha XND-8020F 5MP Flush Mount

5MP Flush Mount

$660.00 USD

Request a quote

Wisenet X powered by Wisenet 5 network flush mount dome camera, 5MP @ 30fps, 3.7mm fixed lens (97.5°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, built-in Mic, magnetic cover, electronic D/N, SD card, hallway view, HLC, defog detection, DIS, PoE only

Available as Hanwha Vision part number XND-8020F.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/1.8"
Imaging Device — Type CMOS
Resolution 2560×1920, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.16
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.16
Video Out USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 3.7
Max Aperture Ratio (F number) — Wide 1.6
Angular Field of View — Horizontal 97.5°
Angular Field of View — Vertical 71.9°
Angular Field of View — Diagonal 126.2°
Min. Object Distance 0.4m(1.31ft)
Focus Control Fixed

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~355°
Pan / Tilt / Rotate Range — Tilt 0°~47°
Pan / Tilt / Rotate Range — Rotate 0°~353°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape Polygonal zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — Others Support alarm I/O via optional I/O box
Alarm Triggers Analytics, Network disconnect
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Audio In Built-in mic

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
Business Intelligence — Normal People counting, Queue management, Heatmap

Network

Specification Value
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Access Control IP-based access control
Audit Access / System / Event Log management

General

Specification Value
Memory — RAM 1GB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -10°C~+55°C(+14°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Storage Condition — Temperature -30°C~+60°C(-22°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption — PoE Max 4.7W

Mechanical

Specification Value
Color Ivory
Material Plastic
Product Dimensions Ø98.9×129.1mm(3.9"x5.1")
Product Weight 275g(0.6 lb)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
