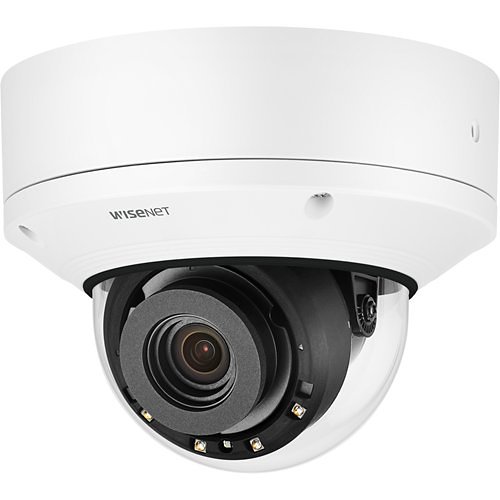

Wisenet 7 X-plus series network IR vandal indoor camera, 6MP @ 30fps, motorized vari-focal lens 3x (2.8~8.4mm), triple codec H.265/H.264/MJPEG with WiseStreamII technology, Extreme WDR, USB and CVBS port for easy installation, advanced video analytics, sound classification and business analytics, high powered IR LEDs range of 131.23′, shock detection, audio playback, true D/N, dual SD cards slots, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, -25°C ~ +60°C (-13°F ~ +140°F). OnCloud Compatible.
Available as Hanwha Vision part number XND-8082RV.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 3328×1872, 3072×1728, 2688×1520, 2592×1944, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps(@6MP Max. 5fps) |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.05 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.005 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 2.8~8.4 |
| Zoom Ratio — Optical | 3x |
| Max Aperture Ratio (F number) — Wide | 1.2 |
| Max Aperture Ratio (F number) — Tele | 2.8 |
| Angular Field of View — Horizontal | 114°~40° |
| Angular Field of View — Vertical | 62°~22° |
| Angular Field of View — Diagonal | 133°~46° |
| Min. Object Distance | 0.7m(2.23ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected), P iris(IR corrected) |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 0°~360° |
| Pan / Tilt / Rotate Range — Tilt | 0°~85° |
| Pan / Tilt / Rotate Range — Rotate | 0°~355° |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in), Built-in mic |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | WiseIR 40m(131.23ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face/upper body detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence — Normal | People counting, Queue management, Heatmap |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 4GB |
| Memory — Flash | 512MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) — Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -25°C~+60°C(-13°F~+140°F) |
| Operating Condition — Humidity | 0~95% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption — PoE | Max. 12.95W, typical 10.7W |
| Power Consumption — 12VDC | Max. 11.5W, typical 9W |
| Power Redundance Failover | Support |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø160x125mm(6.30×4.92") |
| Product Weight | 1,600g(3.53lb) |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 43.2m(141.81ft) |
| Detect (25PPM/ 8PPF) — Tele | 182.9m(599.97ft) |
| Observe (63PPM/ 19PPF) — Wide | 17.3m(56.73ft) |
| Observe (63PPM/ 19PPF) — Tele | 73.1m(239.99ft) |
| Recognize (125PPM/ 38PPF) — Wide | 8.6m(28.36ft) |
| Recognize (125PPM/ 38PPF) — Tele | 36.6m(119.99ft) |
| Identify (250PPM/ 76PPF) — Wide | 4.3m(14.18ft) |
| Identify (250PPM/ 76PPF) — Tele | 18.3m(60.00ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
