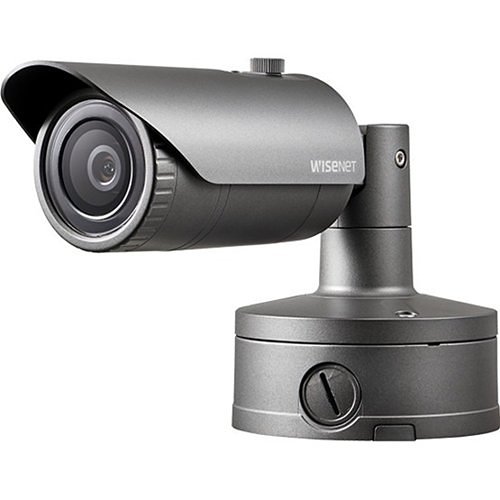

Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 3.7mm fixed lens (97.5°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, high powered IR LEDs range of 98′, true D/N, dual SD card, hallway view, HLC, defog detection, DIS, backbox included, 12VDC/PoE, IP67, IK10, Nema 4X
Available as Hanwha Vision part number XNO-8020R.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.8" |
| Imaging Device — Type | CMOS |
| Resolution | 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.16 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.016 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 3.7 |
| Max Aperture Ratio (F number) — Wide | 1.6 |
| Angular Field of View — Horizontal | 97.5° |
| Angular Field of View — Vertical | 71.9° |
| Angular Field of View — Diagonal | 126.2° |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | Simple focus |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | Polygonal zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | 30m(98.42ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence — Normal | People counting, Queue management, Heatmap |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamâ…¡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification | Value |
|---|---|
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication | HTTPS, SRTP |
| Access Control | IP-based access control |
| Audit | Access / System / Event Log management |
General
| Specification | Value |
|---|---|
| Memory — RAM | 1GB |
| Memory — Flash | 256MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -30°C~+55°C(-22°F~+131°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Operating Condition — Others | Start up should be done at above -20°C |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption — PoE | Max 10.3W |
| Power Consumption — 12VDC | Max 9.3W |
Mechanical
| Specification | Value |
|---|---|
| Color | Dark grey |
| Material | Aluminum |
| Product Dimensions | Ø70x296mm(Ø2.76"x11.65") |
| Product Weight | 1220g(2.69 lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
