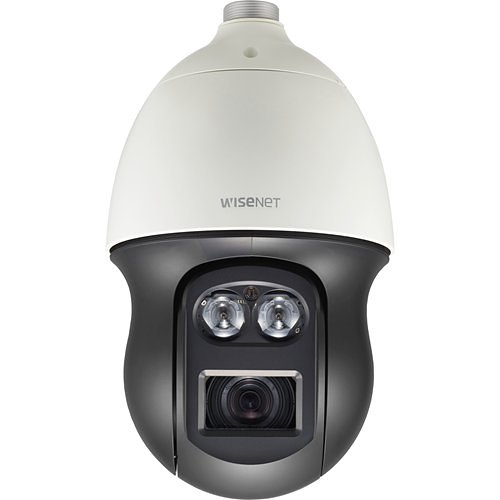

Hanwha XNP-6550RH 2MP IR 55x PTZ
,

Hanwha XNP-6550RH 2MP IR 55x PTZ

2MP IR 55x PTZ

$5,500.00 USD

Request a quote

Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, Full HD(1080p) @ 60fps, 55X optical zoom lens (4.75mm ~ 261.4mm) (58.6º ~ 1.23º), Pan: 360° endless. Tilt: -5°~ 185°, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, built-in IR 1640ft (500m), USB port for easy installation, advanced video analytics and sound classification, true D/N, built-in SD card slot (2x512GB), HLC, defog (optical) DIS(Gyro),24VAC/HPoE, IP66/IK10, -58°F ~ +131°F W/ 24VAC power supply

Available as Hanwha Vision part number XNP-6550RH.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 60fps/50fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.02
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.002
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation

Lens

Specification Value
Focal Length (mm) 4.75~261.4
Zoom Ratio — Optical 55x
Max Aperture Ratio (F number) — Wide 1.6
Max Aperture Ratio (F number) — Tele 6.5
Angular Field of View — Horizontal 58.6°~1.23°
Angular Field of View — Vertical 34.8°~0.71°
Min. Object Distance 5m(16.40ft)
Focus Control Auto, Manual, Oneshot AF
Lens Type DC auto iris

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt -5°~90°
Pan Speed — Preset Max. 400°/sec
Pan Speed — Manual 0.024°/sec~250°/sec
Tilt Speed — Preset Max. 250°/sec
Tilt Speed — Manual 0.024°/sec~250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°

Operational

Specification Value
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 150
Digital Noise Reduction SSNRâ…¤
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape Rectangular zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm Interface — In/Out Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED
Light Viewable Length — IR 500m(1,640.42ft)
IR Wavelength 850nm
Auto Tracking Support

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet SFP, RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamâ…¡
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
Application Programming Interface — ONVIF S, G
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication HTTPS, SRTP
Access Control IP-based access control
Audit Access / System / Event Log management

General

Specification Value
Memory — RAM 1GB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 2slot(Total 512GB)

Environmental & Electrical

Specification Value
Operating Condition — Temperature AC24: -50°C~+55°C(-58°F~+131°F) / HPoE: -40°C~+55°C(-22°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE++(IEEE802.3bt type4, Class7), 24VAC
Power Consumption — PoE Max. 60W, typical : 30W
Power Consumption — 24VAC Max. 92W, typical : 30W

Mechanical

Specification Value
Color Ivory, Black
Material Aluminum, Plastic
Product Dimensions ø236.9×407.7mm(9.33×16.05")
Product Weight 7.1Kg(15.65lb)

Certifications & Standards

Specification Value
Environment IEC 60529 IP66, IEC 62262 IK10

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 68.4m(224.5ft)
Detect (25PPM/ 8PPF) — Tele 3577.4m(11736.7ft)
Observe (63PPM/ 19PPF) — Wide 27.4m(89.8ft)
Observe (63PPM/ 19PPF) — Tele 1430.9m(4694.7ft)
Recognize (125PPM/ 38PPF) — Wide 13.7m(44.9ft)
Recognize (125PPM/ 38PPF) — Tele 715.5m(2347.3ft)
Identify (250PPM/ 76PPF) — Wide 6.8m(22.5ft)
Identify (250PPM/ 76PPF) — Tele 357.7m(1173.7ft)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
