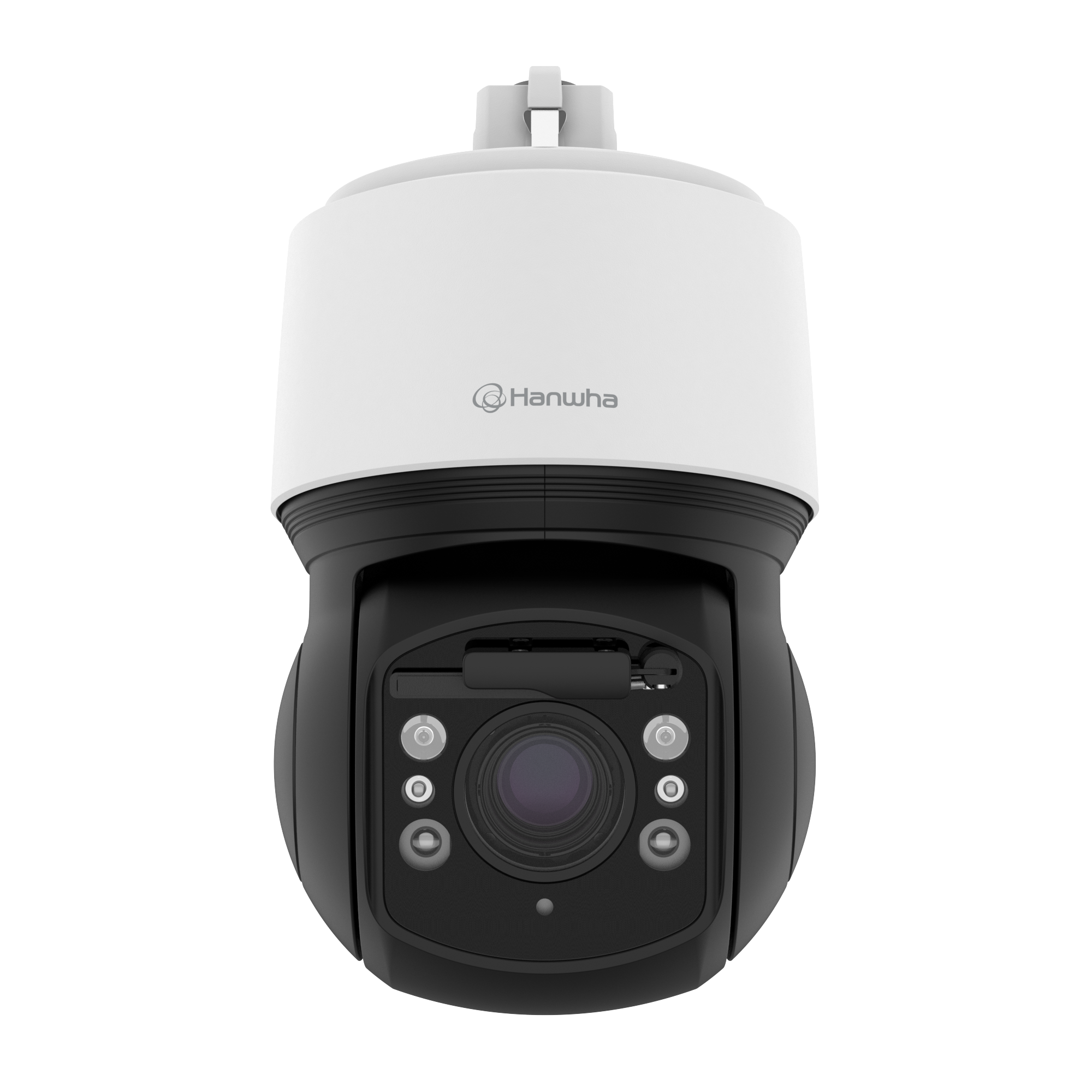

Powered by WN7, 4K @ 30FPS resolution, 5mm~150mm (30x) lens, build in wiper and adaptive Wise IR (200m), extreme WDR 120dB, Day & Night ICR, H.265, H.264, MJPEG codec support, Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock track, BLC, HLC, SSDR, lens heater for water/snow removal, built-in SD card slot (2x512GB), IP66, IK10(Camera body only), NEMA4X, NEMA-TS 2 (2.2.7, 2.2.8, 2.2.9), PoE++/HPoE injector included, Operating Temperature -40°C~+55°C(-40°F ~ +131°F), (Compatible with I/O Box SPM-4210)
Product notes: Limited Stock; Comparable Model; XNP-C9303RW.
Available as Hanwha Vision part number XNP-9300RW.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.1 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.01 |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 5~150 |
| Zoom Ratio — Optical | 30x |
| Zoom Ratio — Digital | 32x |
| Max Aperture Ratio (F number) — Wide | 1.6 |
| Max Aperture Ratio (F number) — Tele | 4.56 |
| Angular Field of View — Horizontal | 57.42°~2.19° |
| Angular Field of View — Vertical | 33.54°~1.25° |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 360° Endless |
| Pan / Tilt / Rotate Range — Tilt | 90°~-20° |
| Pan Speed — Preset | Max. 500°/sec |
| Pan Speed — Manual | 0.024°/sec~250°/sec |
| Tilt Speed — Preset | Max. 350°/sec |
| Tilt Speed — Manual | 0.024°/sec~250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | Up to ±0.1°, Pan/Tilt correction |
Operational
| Specification | Value |
|---|---|
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip&Mirror |
| Alarm Interface — Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Support via optional I/O box |
| Audio Out | Support via optional I/O box |
| Light Type | IR LED |
| Light Viewable Length — IR | Wise IR 200m(656.17ft) |
| IR Wavelength | 850nm |
| Water Removal | Support(with Wiper, Lens heater) |
| Auto Tracking | Support, Object auto tracking(Person/Vehicle), Target lock tracking |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual, WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205 |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 4GB |
| Memory — Flash | 512MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition — Humidity | 0~100% RH(condensing) |
| Operating Condition — Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.048㎡ |
| Input Voltage | PoE++(IEEE802.3bt type3, Class6) |
| Power Consumption — PoE | Max. 42W, Typical 20W |
Mechanical
| Specification | Value |
|---|---|
| Color | White, Black |
| Material | Aluminum, PC(Polycarbonate) |
| RAL Code | RAL9003, RAL9005 |
| Product Dimensions | ø184.9×318.8mm(7.28×12.55") |
| Product Weight | 5,400g(11.90lb) |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 140.2m(460ft) |
| Detect (25PPM/ 8PPF) — Tele | 4018.1m(13182.6ft) |
| Observe (63PPM/ 19PPF) — Wide | 56.1m(184ft) |
| Observe (63PPM/ 19PPF) — Tele | 1607.2m(5273.1ft) |
| Recognize (125PPM/ 38PPF) — Wide | 28.0m(92ft) |
| Recognize (125PPM/ 38PPF) — Tele | 803.6m(2636.5ft) |
| Identify (250PPM/ 76PPF) — Wide | 14.0m(46ft) |
| Identify (250PPM/ 76PPF) — Tele | 401.8m(1318.3ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
