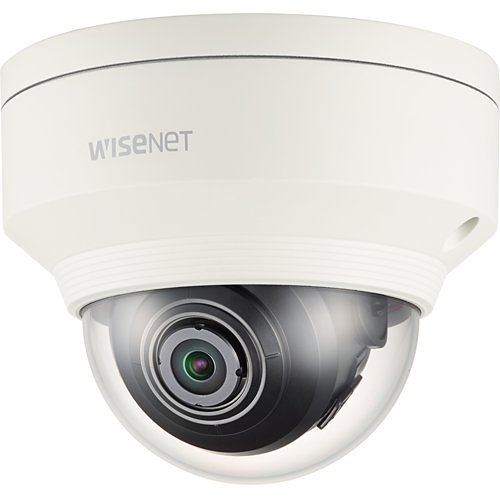

Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps, 2.4mm fixed lens (139°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, true D/N, dual SD card, hallway view, HLC, defog detection, DIS, 12VDC/PoE, IP67, IK10 Available as Hanwha Vision part number XNV-6010.
Technical specifications
Video
| Specification |
Value |
| Imaging Device — Size |
1/2.8" |
| Imaging Device — Type |
CMOS |
| Resolution |
1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 |
60fps/50fps(60Hz/50Hz) |
| Max. Framerate — MJPEG |
30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) |
0.055 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) |
0.0055 |
| Video Out |
CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification |
Value |
| Focal Length (mm) |
2.4 |
| Max Aperture Ratio (F number) — Wide |
2.0 |
| Angular Field of View — Horizontal |
139° |
| Angular Field of View — Vertical |
73° |
| Angular Field of View — Diagonal |
167° |
| Min. Object Distance |
0.4m(1.31ft) |
| Lens Type |
Fixed iris |
Pan / Tilt / Rotate
| Specification |
Value |
| Pan / Tilt / Rotate Range — Pan |
0°~354° |
| Pan / Tilt / Rotate Range — Tilt |
0°~67° |
| Pan / Tilt / Rotate Range — Rotate |
0°~355° |
Operational
| Specification |
Value |
| Day & Night |
Auto(ICR) |
| Backlight Compensation |
BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) |
150 |
| Digital Noise Reduction |
SSNRⅤ |
| Digital Image Stabilization |
Support |
| Defog |
Support |
| Motion Detection — Quantity |
8ea |
| Motion Detection — Shape |
8point Polygonal zones |
| Privacy Masking — Quantity |
32ea |
| Privacy Masking — Shape |
Polygonal zones |
| Privacy Masking — Color / Option |
Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control |
Low, Middle, High |
| White Balance |
ATW, AWC, Manual, Indoor, Outdoor |
| LDC |
Support |
| Electronic Shutter — Mode |
Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range |
2~1/12,000sec |
| Video Rotation |
Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out |
Input 1ea, Output 1ea |
| Alarm Triggers |
Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred |
File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP |
| Audio In |
Selectable(mic in/line in) |
| Audio Out |
Line out |
Analytics
| Specification |
Value |
| Analytics Events — Normal |
Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence — Normal |
People counting, Queue management, Heatmap |
Network
| Specification |
Value |
| Ethernet |
RJ-45(10/100BASE-T) |
| Video Compression |
H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression |
G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec |
Manual, WiseStreamⅡ |
| Bitrate Control |
H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast |
Up to 20 users |
| Streaming — Multicast |
Support |
| Streaming — Multiple Streaming |
Up to 10 profiles |
| Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM |
| Application Programming Interface — ONVIF |
S, G, T |
| Application Programming Interface — Others |
SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification |
Value |
| OS / Firmware Protect |
Encrypted firmware, Secure boot, Signed firmware |
| User authentication |
Digest authentication |
| Network authentication |
IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication |
HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control |
IP-based access control |
| Data Protect |
Encryption credentials, Encrypt compress for live recording file export |
| Audit |
Access / System / Event Log management |
| Secure Storage |
SDcard partition encrypt(AES-256) |
General
| Specification |
Value |
| Memory — RAM |
1GB |
| Memory — Flash |
256MB |
| Edge Storage — Micro SD/SDHC/SDXC |
Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Specification |
Value |
| Operating Condition — Temperature |
-30°C~+55°C(-22°F~+131°F) |
| Operating Condition — Humidity |
0~90% RH(non-condensing) |
| Operating Condition — Others |
Start up should be done at above -20°C |
| Storage Condition — Temperature |
-50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity |
0~90% RH(non-condensing) |
| Input Voltage |
PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption — PoE |
Max 5.5W |
| Power Consumption — 12VDC |
Max. 6W |
Mechanical
| Specification |
Value |
| Color |
Ivory |
| Material |
Aluminum |
| Product Dimensions |
Ø120×97.5mm(4.72×3.84") |
| Product Weight |
625g(1.37lb) |
Certifications & Standards
| Specification |
Value |
| Environment |
IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10 |
Ver
| Specification |
Value |
| Ver |
202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
