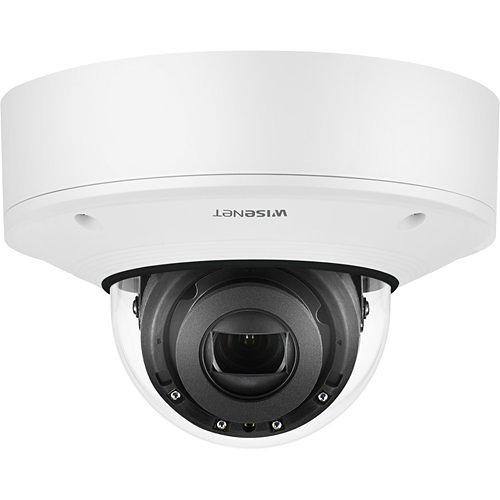

Wisenet X series Plus powered by Wisenet 5 IR network outdoor vandal dome camera, modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, high powered IR LEDs range of 164′, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, Nema 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover
Available as Hanwha Vision part number XNV-6081R.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.015 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.0015 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 2.8~12 |
| Zoom Ratio — Optical | 4.3x |
| Max Aperture Ratio (F number) — Wide | 1.4 |
| Max Aperture Ratio (F number) — Tele | 3.6 |
| Angular Field of View — Horizontal | 119.5°~27.9° |
| Angular Field of View — Vertical | 62.8°~15.7° |
| Angular Field of View — Diagonal | 142.1°~32.0° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | DC auto iris(IR corrected), P iris(IR corrected) |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 0°~360° |
| Pan / Tilt / Rotate Range — Tilt | -45°~85° |
| Pan / Tilt / Rotate Range — Rotate | 0°~355° |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | Polygonal zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | 50m(164.04ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence — Normal | People counting, Queue management, Heatmap |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 1GB |
| Memory — Flash | 256MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Operating Condition — Others | Start up should be done at above -35°C |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC |
| Power Consumption — PoE | Max 12.95W, typical 10.30W |
| Power Consumption — 12VDC | Max 10.8W, typical 8.40W |
| Power Consumption — 24VAC | Max 13.3W, typical 10.40W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø180x125mm(7.09×4.92") |
| Product Weight | 1750g(3.86lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| Environment | IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
