AXIS A1610-B Network Door Controller

AXIS A1610-B Network Door Controller

AXIS network camera

  • Barebone version of A1610 Network Door Controller
  • Sold without a top cover, it offers easy installation with Axis or 3rd party cabinet
  • You can store up to 250k credentials and 250k event logs on the device itself
  • With built-in cybersecurity features, this smart door controller can internally handle all tasks related to door access—even if the network is down
  • | AXIS Product Number: 02654-001

$839.00 USD

Request a quote

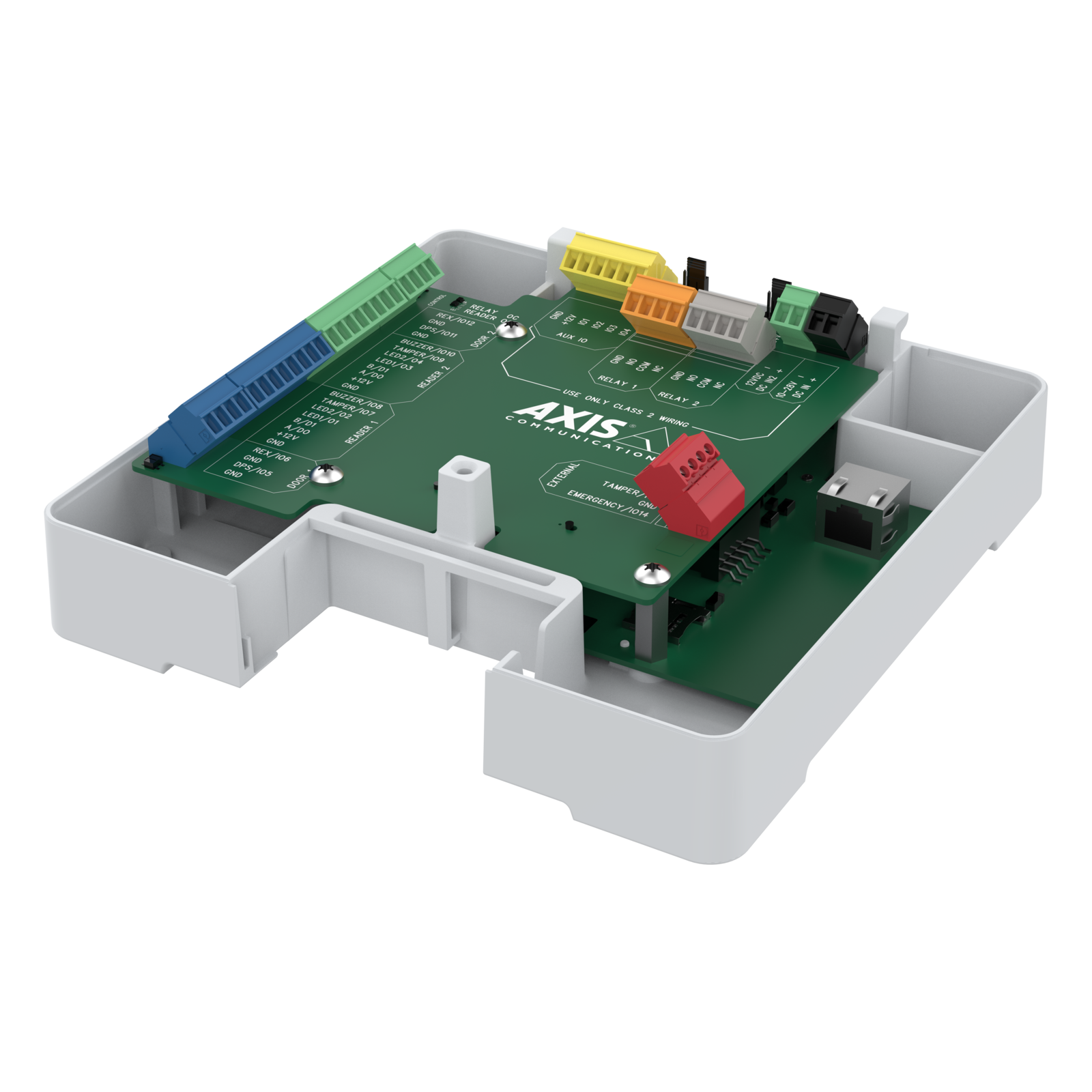

Barebone version of A1610 Network Door Controller. Sold without a top cover, it offers easy installation with Axis or 3rd party cabinet.
This advanced door controller includes everything needed to control two doors–all powered by one PoE cable, featuring four reader connections as well as two Form C relays to power the onboard lock. You can store up to 250k credentials and 250k event logs on the device itself. With built-in cybersecurity features, this smart door controller can internally handle all tasks related to door access—even if the network is down.

AXIS Product Number: 02654-001

Technical specifications

Key specifications: operating range -40 to 70 °C; PoE Class 4 powered. Manufacturer part number 02654-001.

Spec

Specification Value
Power over Ethernet Yes
PoE Class 4
DC input voltage 10-28 V
DC Output – Max 24
Relays 2
Digital I/O Yes
Alarm inputs/outputs 6
Operating temperature -40 to 70 °C
Plenum rating UL 2043
Access control standards UL294
ONVIF Profile –
Eligible for five year warranty Yes

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 02654-001 Category: Tag: Brand:
