Access Control

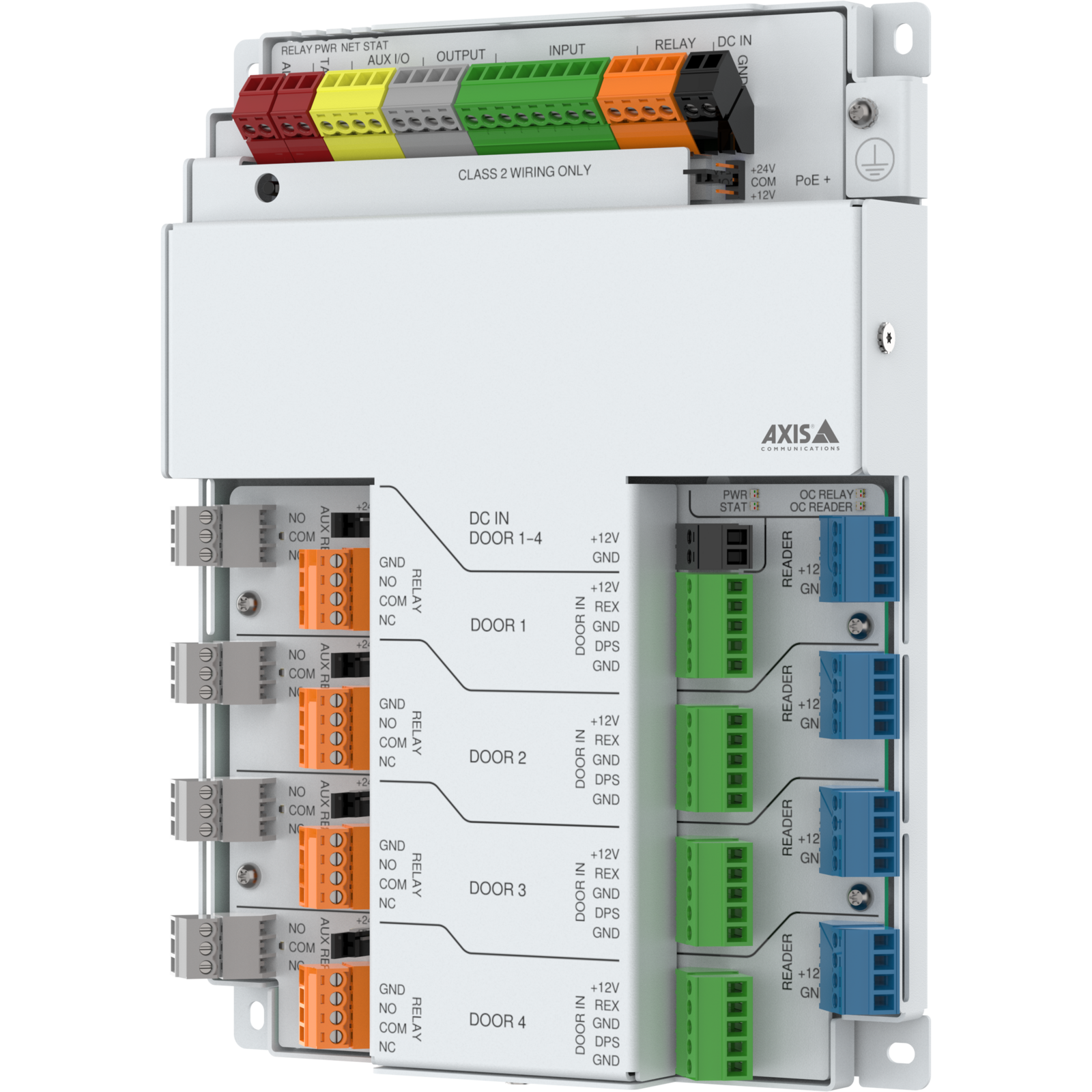

AXIS A1710-B Network Door Controller
AXIS network access control
- This compact, cost-efficient door controller gives you full control for up to four doors including support for up to eight OSDP readers and eight locks
- With onboard lock power, this all-in-one multi-door controller simplifies complex installations
- AXIS Product Number: 03078-001
$1,489.00 USD
This compact, cost-efficient door controller gives you full control for up to four doors including support for up to eight OSDP readers and eight locks. With onboard lock power, this all-in-one multi-door controller simplifies complex installations
AXIS Product Number: 03078-001
Technical specifications
Key specifications: operating range -40 to 55 °C; PoE Class 4 powered. Manufacturer part number 03078-001.
Spec
| Specification | Value |
|---|---|
| Power over Ethernet | Yes |
| PoE Class | 4 |
| DC input voltage | 12-12 V |
| DC Output – Max | 24 |
| Relays | 9 |
| Digital I/O | Yes |
| Alarm inputs/outputs | 2/13/3 |
| Operating temperature | -40 to 55 °C |
| Plenum rating | UL 2043 |
| Access control standards | – |
| ONVIF Profile | – |
| Eligible for five year warranty | Yes |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
