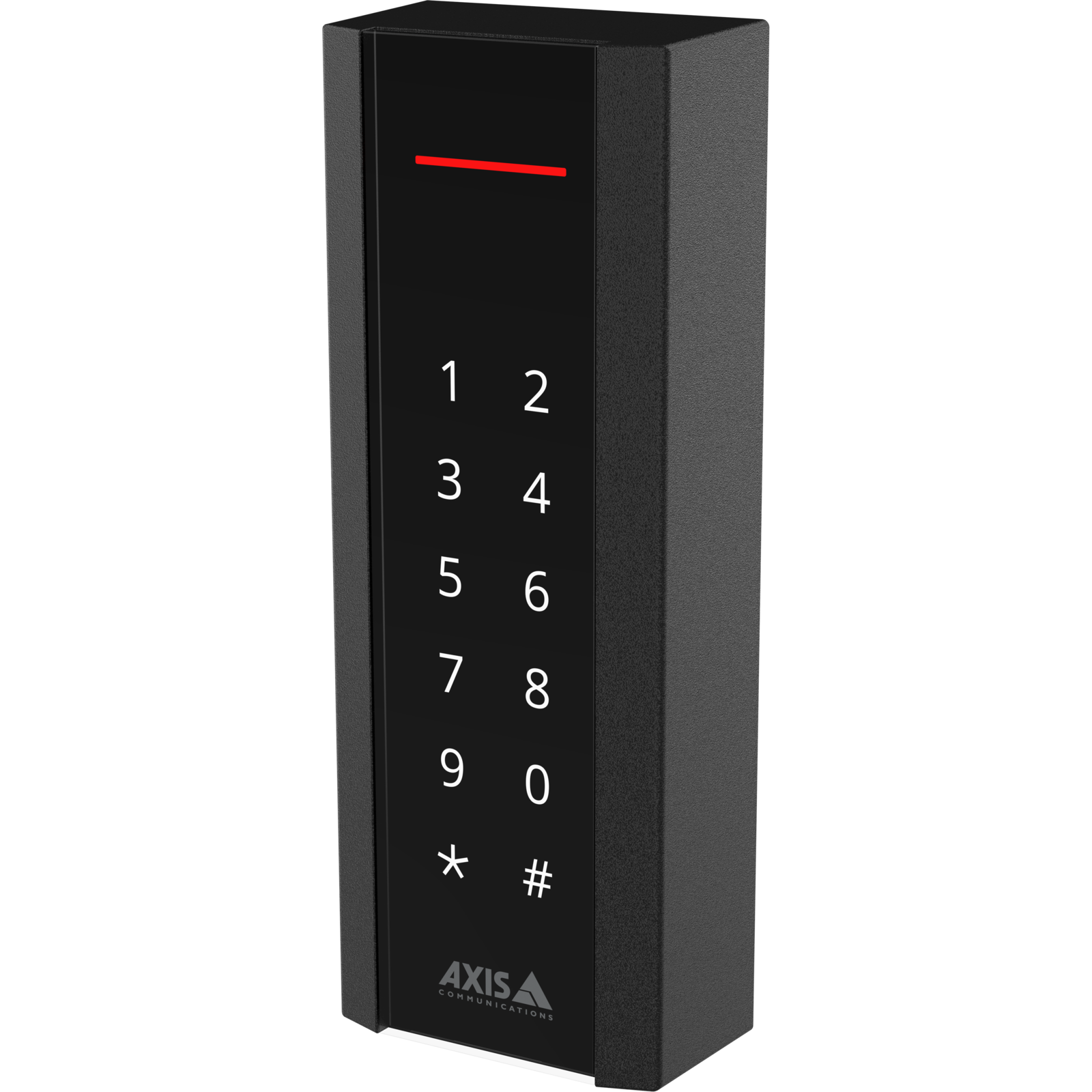

AXIS A4611 Network Reader with Keypad

AXIS A4611 Network Reader with Keypad

All-in-one network reader with touch keypad

  • Intelligent network reader with intuitive touch keypad
  • Manages complete door control including lock and position sensors
  • Single PoE cable for power and data — reduces cabling and cost
  • Remote management of access rights, software updates, and configuration
  • Simplified architecture for easy system scaling

$469.00 USD

Request a quote

AXIS A4611 is an intelligent, all-in-one network reader with an intuitive touch keypad that manages complete door control — including the lock and position sensors. It streamlines installation by using a single Power over Ethernet (PoE) cable for both power and data, reducing cabling and cost.

The simplified architecture makes it easy to scale your system. With remote management capabilities, you can grant access rights, update software, and manage the device from anywhere.

AXIS Product Number: 03503-001

Technical specifications

Key specifications: IP54 rated; operating range -40 to 60 °C. Manufacturer part number 03503-001.

Spec

Specification Value
Reader protocol IP
Credential technologies MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE DESFire EV3, MIFARE Plus
Credentials CardNr, PIN, Tag
Integrated keypad Yes
DC input voltage 12-12 V
Power over Ethernet Yes
DC Output – Max 12
Cable (length) 2900 mm
IP rating IP54
Alarm inputs/outputs 2/0
Relays 1
Height 133 mm
Width 50 mm
Depth/length 27 mm
Weight of sales unit (without box) 270g
Safety approvals EN: 62311, IEC/EN 62368-1 ed.3
Product label markings CE, FCC, ICES
Sustainability –
Operating temperature -40 to 60 °C
Outdoor Ready –

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 03503-001 Category: Brand:
Weight 1.1 lbs
Dimensions 1.06 × 1.97 × 5.24 in
Product Number

03503-001
Manufacturer

Axis Communications
