Final-stock model. AXIS has announced the end of AXIS M3128-LVE White (02920-001). It remains orderable while stock lasts and carries the full AXIS warranty.

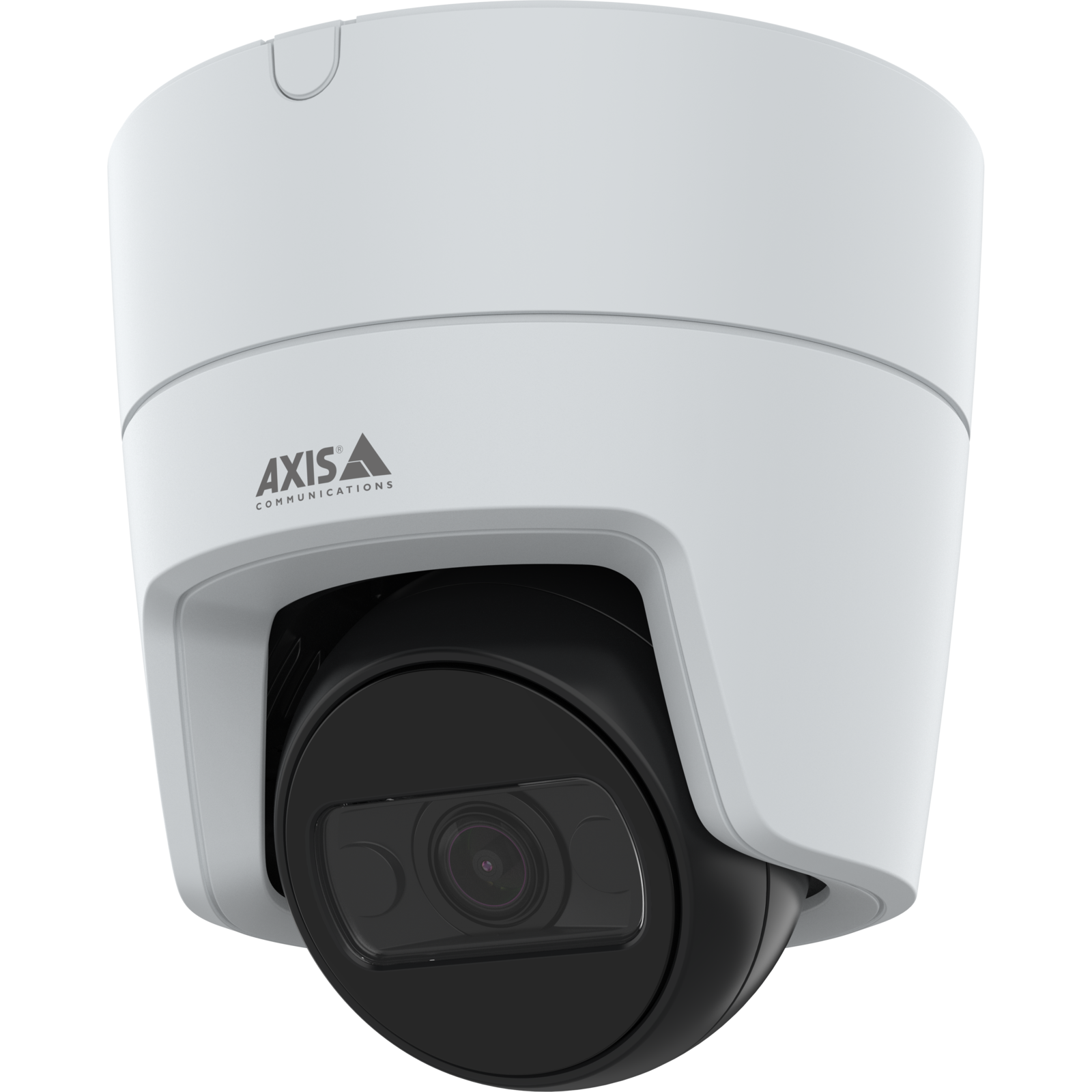

AXIS M3128-LVE is a compact, turret style outdoor-ready dome camera. IP66 and IK08 impact-resistant design with built-in IR illumination. Fixed lens, 110° horizontal field of view. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 8MP at up to 15 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced AI-based analytics. Axis Object Analytics, video motion detection and active tampering alarm. Audio and I/O with compatible Axis portcast accessories. MicroSD memory card slot for local video storage. AXIS Edge Vault with FIPS 140-3 level 3 for increased cyber security. White color.
AXIS Product Number: 02920-001
Technical specifications
Key specifications: video resolution up to 3840×2160; IP66 rated; IK08 vandal-resistant; operating range -30 to 50 °C; PoE Class 3 powered; WDR. Manufacturer part number 02920-001.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2.8" |
| Lightfinder |
– |
| Wide dynamic range |
WDR |
| Min illumination/ light sensitivity (Color) |
0.22 lux |
| Min illumination/ light sensitivity (B/W) |
0.05 lux |
Video
| Specification |
Value |
| Max video resolution |
3840×2160 |
| Max frames per second |
12.5/15 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
– |
Lens
| Specification |
Value |
| Focal length |
2.9 mm |
| Horizontal field of view |
110 ° |
| Vertical field of view |
60 ° |
Pan Tilt Zoom
| Specification |
Value |
| Remote PTRZ |
– |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
High, Main |
| H.265 |
Yes |
| AV1 |
– |
Audio
| Specification |
Value |
| Audio Support |
– |
| Built-in microphone |
– |
Network
| Specification |
Value |
| PoE Class |
3 |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| Secure keystore |
Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
| Axis Edge Vault |
Yes |
General
| Specification |
Value |
| Remote focus |
– |
| Remote zoom |
– |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-30 to 50 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK08 |
| IP rating |
IP66 |
| Designed for repaint |
Yes |
| Sustainability |
PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
