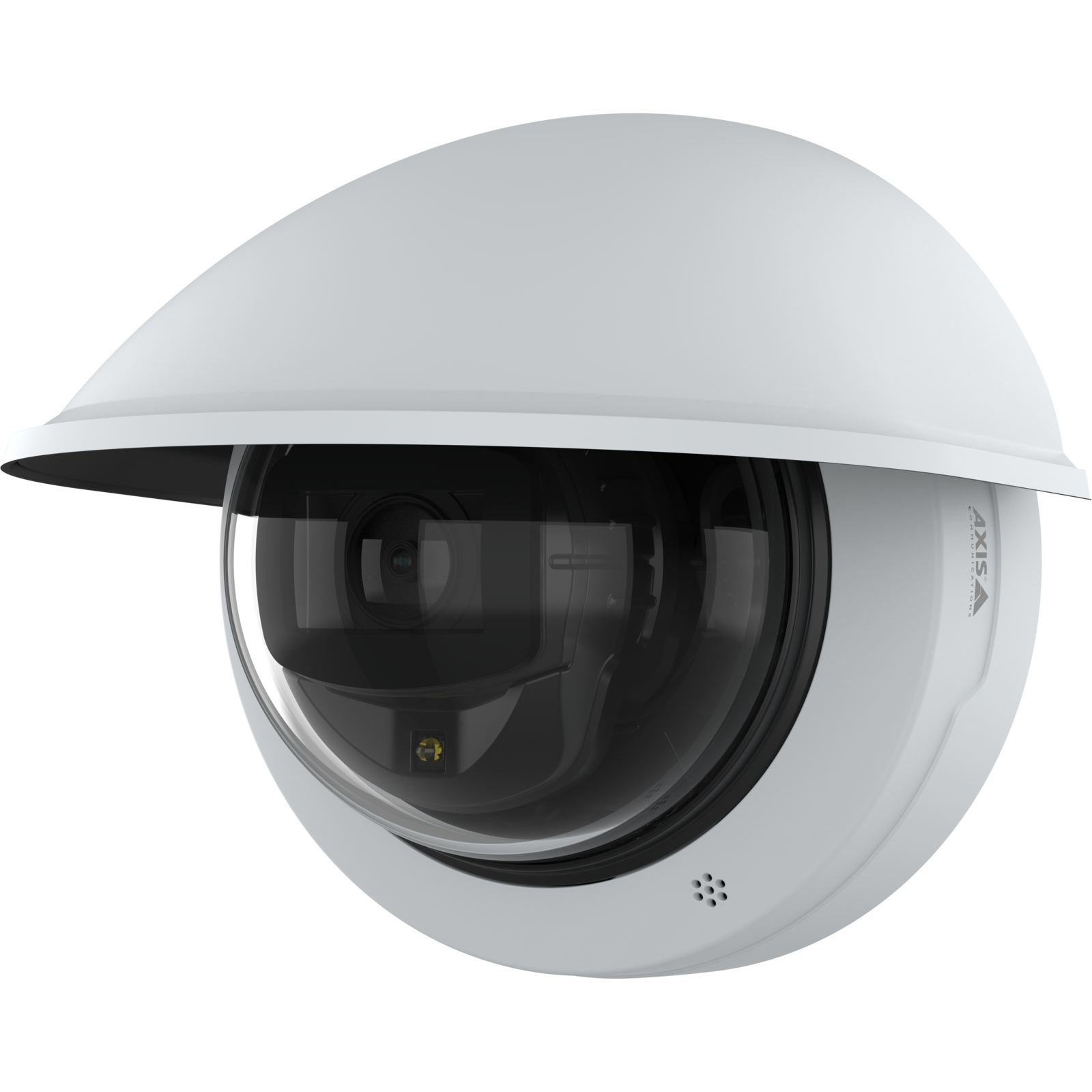

Compact, varifocal 2 MP dome with AI analytics. Great image quality thanks to Forensic WDR, Lightfinder 2.0 and Optimized IR

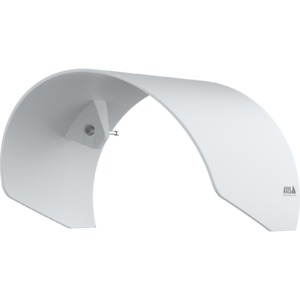

Sleek, IP66/IK10 polycarbonate casing and included weather shield.
Varifocal 3.2–7.2 mm lens
Multiple, individually configurable streams, H.264/H.265 with zipstream in up to 2MP @ 30fps.
Acoustic sensors for audio analytics.
Axis Edge Vault with FIPS 140-3 level 3 certified. Support for SD card storage.
Advanced AI analytics for object classification, counting, audio detection, masking and more.
Powered by IEEE 802.3af/802.3at Type 1 Class 3.
AXIS Product Number: 02814-001
Technical specifications
Key specifications: video resolution up to 1920×1080; IP66 rated; IK10 vandal-resistant; operating range -30 to 50 °C; PoE Class 3 powered; WDR. Manufacturer part number 02814-001.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2.8" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
WDR |
| Min illumination/ light sensitivity (Color) |
0.12 lux |
| Min illumination/ light sensitivity (B/W) |
0.03 lux |
Video
| Specification |
Value |
| Max video resolution |
1920×1080 |
| Max frames per second |
25/30 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
– |
Lens
| Specification |
Value |
| Focal length |
3.2 – 7.2 mm |
| Horizontal field of view |
100-38 ° |
| Vertical field of view |
52-20 ° |
Pan Tilt Zoom
| Specification |
Value |
| Remote PTRZ |
– |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
– |
Audio
| Specification |
Value |
| Audio Support |
Yes |
| Built-in microphone |
– |
Network
| Specification |
Value |
| PoE Class |
3 |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| Secure keystore |
Secure Element (CC EAL6+) |
| Axis Edge Vault |
Yes |
General
| Specification |
Value |
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-30 to 50 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66 |
| Designed for repaint |
Yes |
| Sustainability |
BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
