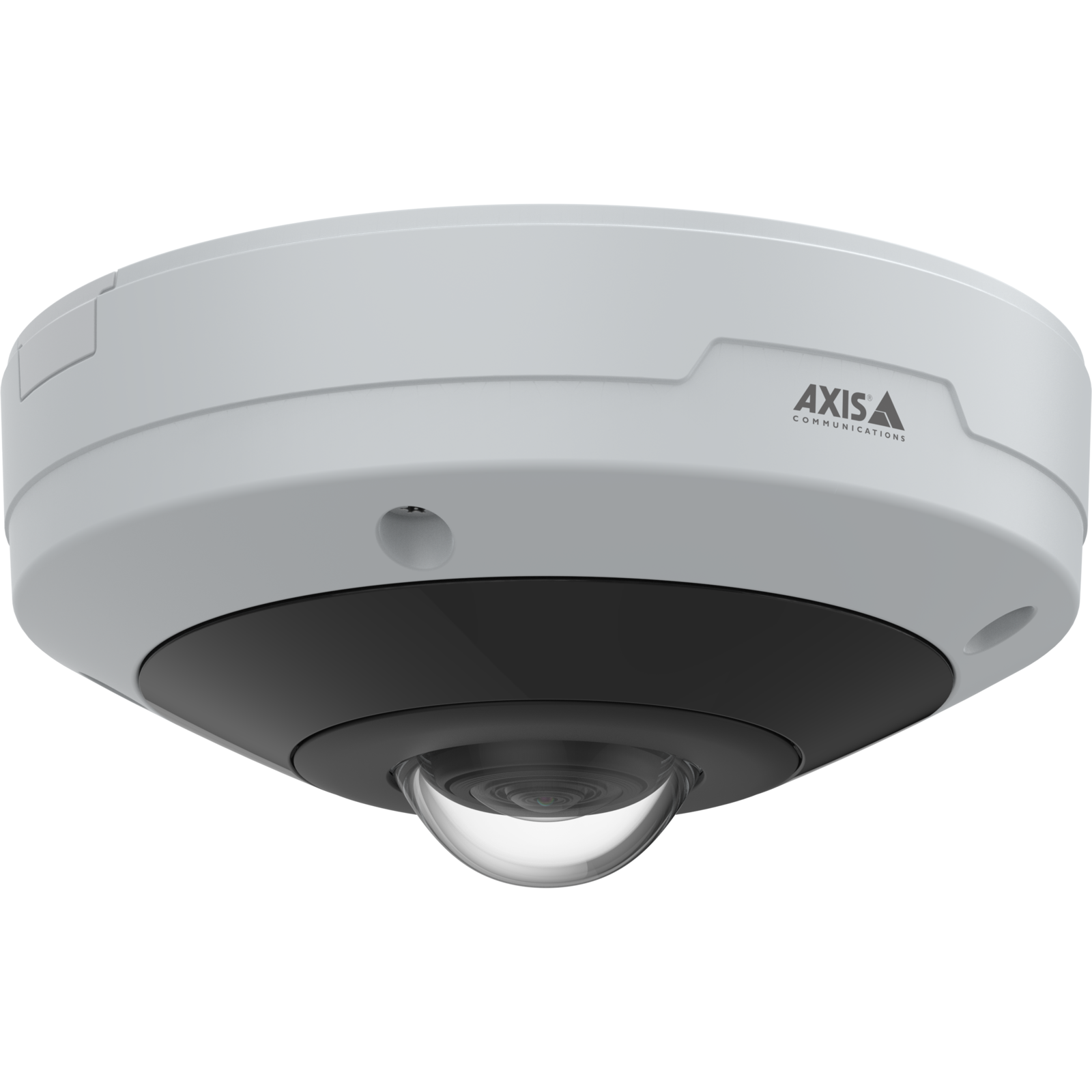

AXIS M4347-PLVE Fisheye Camera with Audio
,

AXIS M4347-PLVE Fisheye Camera with Audio

6 MP fisheye with built-in microphones and audio analytics

  • Up to 2464 × 2464 pixels (6 MP) at up to 60 fps
  • Built-in microphones with AXIS Audio Analytics pre-installed
  • Day/night with built-in IR illumination
  • AXIS Object Analytics pre-installed, trained for 360° fisheye view
  • AXIS Edge Vault with FIPS 140-3 Level 3 certified key storage

$899.00 USD

Request a quote

AXIS M4347-PLVE is a fisheye camera with built-in microphones and AXIS Audio Analytics pre-installed, delivering 180°/360° views. The latest sensor technology brings 30% higher resolution than previous generations — up to 2464 × 2464 pixels (6 MP) at up to 60 fps. Day/night functionality and built-in IR illumination ensure excellent images even in complete darkness.

It is AI-powered with AXIS Object Analytics pre-installed and AI models trained for 360° fisheye view. A range of camera-side dewarped views is available. AXIS Edge Vault offers FIPS 140-3 Level 3 certified secure key storage and operations.

AXIS Product Number: 03132-001

Technical specifications

Key specifications: video resolution up to 2464×2464; IP66 rated; IK10 vandal-resistant; operating range -40 to 50 °C; Forensic WDR. Manufacturer part number 03132-001.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/1.6"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.08 lux
Min illumination/ light sensitivity (B/W) 0 lux

Video

Specification Value
Max video resolution 2464×2464
Max frames per second 60
Day and Night functionality Yes
Electronic image stabilization –

Lens

Specification Value
Focal length 1.7 mm
Horizontal field of view 185 °
Vertical field of view 185 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes

Audio

Specification Value
Audio Support Yes

Security

Specification Value
Signed OS Yes
Secure boot Yes

General

Specification Value
Remote focus –
Remote zoom –
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 03132-001 Categories: , Brand:
Weight 2.4 lbs
Dimensions 6.89 × 6.5 × 3.74 in
Product Number

03132-001
Manufacturer

Axis Communications
