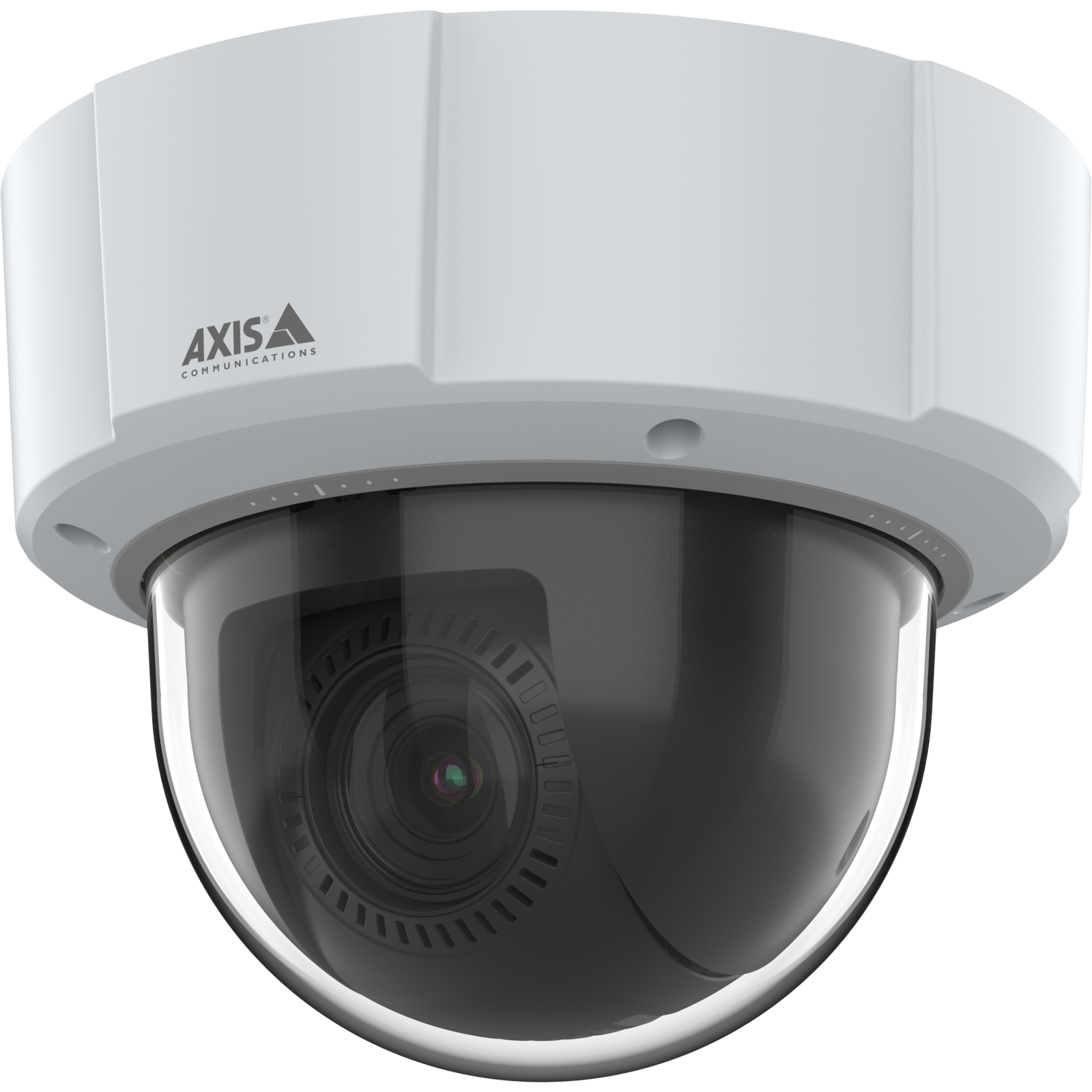

AXIS M5526-E 60 Hz 4 pcs
,

AXIS M5526-E 60 Hz 4 pcs

AXIS network camera

  • Industrial four pack of AXIS M5526-E 60Hz
  • Not including bayonet adapter
  • AXIS Product Number: 02769-021

$6,368.60 CAD

Request a quote

Industrial four pack of AXIS M5526-E 60Hz. Not including bayonet adapter

AXIS Product Number: 02769-021

Technical specifications

Key specifications: video resolution up to 2688×1512; 10x optical zoom; IP66 rated; IK09 vandal-resistant; operating range -20 – 50 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 02769-021.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/3"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.25 lux
Min illumination/ light sensitivity (B/W) 0.01 lux

Security

Specification Value
Signed OS Yes
Secure boot Yes
TPM –

General

Specification Value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -20 – 50 °C
Outdoor Ready Yes
Vandal rating IK09
IP rating IP66
Designed for repaint Yes

Analytics

Specification Value
Autotracking version –
Orientation aid –

Video

Specification Value
Max video resolution 2688×1512
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –

Lens

Specification Value
Focal length 4.7 – 47 mm
Horizontal field of view 59.1 – 6.5 °
Vertical field of view 35 – 3.67 °

Pan Tilt Zoom

Specification Value
Pan range 360 endless
Tilt range 0 to 90
Guard tour limited guard tour
Optical zoom 10
Digital zoom 12

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 –

Audio

Specification Value
Audio Support Yes
Built-in microphone –

Sys

Specification Value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4

Network

Specification Value
PoE Class 3

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 02769-021 Categories: , Tag: Brand:
