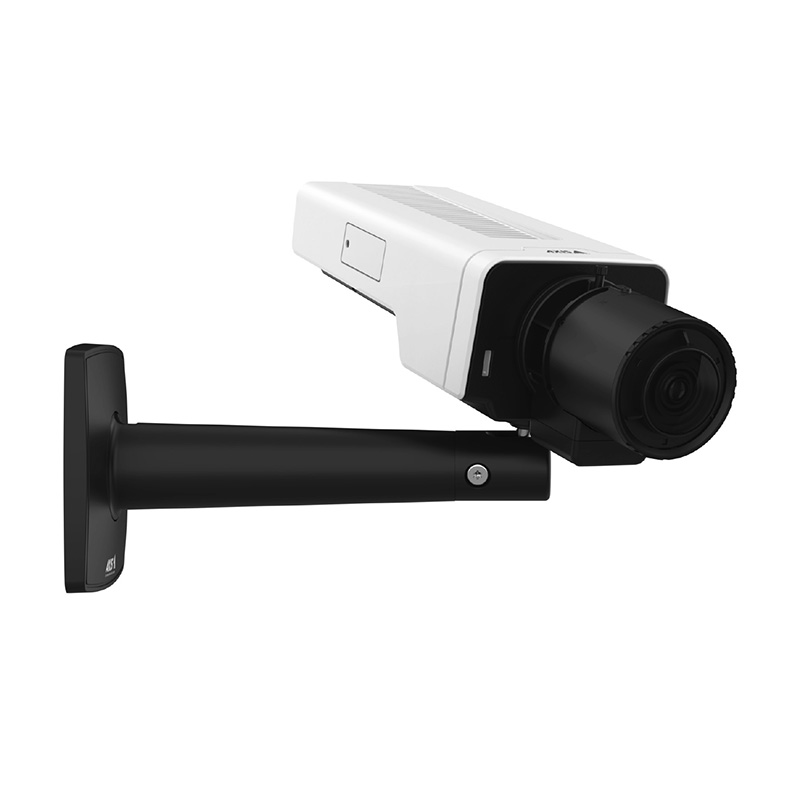

AXIS P1385 Box Camera

Reliable 2 MP indoor surveillance

Excellent image quality in HDTV 1080p
Lightfinder 2.0 and Forensic WDR
Exchangeable lens
Analytics with deep learning
Built-in cybersecurity with Axis Edge Vault

This box camera delivers excellent HDTV 1080p image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it’s designed for use outdoors in housing.

$869.00 USD

1/2.8” image sensor, 2 MP / 1080p resolution, day/night box camera with Deep Learning Processing Unit (DLPU). Forensic WDR and Lightfinder 2.0. Varifocal IR corrected CS-mount 2.8-13 mm P-iris lens with remote focus. Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 2 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either built-in microphone or optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type1 Class 3 (PoE) or 10-28 V DC power with redundancy. Includes black stand for wall and ceiling. Midspan or power supply not included.

Product Number: 02733-001
SKU: 7331021082663

AXIS P1385 Box Camera

Technical specifications

Key specifications: video resolution up to 1920×1080; operating range -10 to 55 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 02733-001.

Camera

Specification	Value
Image sensor	CMOS
Image sensor size	1/2.8"
Lightfinder	Lightfinder 2.0
Wide dynamic range	Forensic WDR
Min illumination/ light sensitivity (Color)	0.05 lux
Min illumination/ light sensitivity (B/W)	0.01 lux

Video

Specification	Value
Max video resolution	1920×1080
Max frames per second	50/60
Electronic image stabilization	Yes

Lens

Specification	Value
Focal length	2.8 – 13 mm
Horizontal field of view	121 – 26 °
Vertical field of view	64 – 15 °
Lens mount	CS
Replaceable lens	Yes

Compression

Specification	Value
Zipstream	Yes
H.264	Baseline, High, Main
H.265	Yes
AV1	–

Audio

Specification	Value
Audio Support	Yes

Network

Specification	Value
PoE Class	3
Wireless	–

Security

Specification	Value
Signed OS	Yes
Secure boot	Yes
Secure keystore	Secure Element (CC EAL6+)

General

Specification	Value
Remote focus	Yes
Remote zoom	–
Built-in IR	–
Local storage (memory card slot)	Yes
Operating temperature	-10 to 55 °C
Outdoor Ready	–
Vandal rating	–
IP rating	–
Designed for repaint	–
Sustainability	BFR/CFR free, PVC free

Power

Specification	Value
Power (max)	7.8 W
Power (average)	3.2 W
DC input voltage	10-28 V

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 02733-001 Category: Video Cameras Brand: AXIS

Weight	2.37 lbs
Dimensions	10.43 × 8.66 × 4.13 in
Product Number	02733-001
Warranty	5 Year Warranty
Manufacturer	Axis Communications
