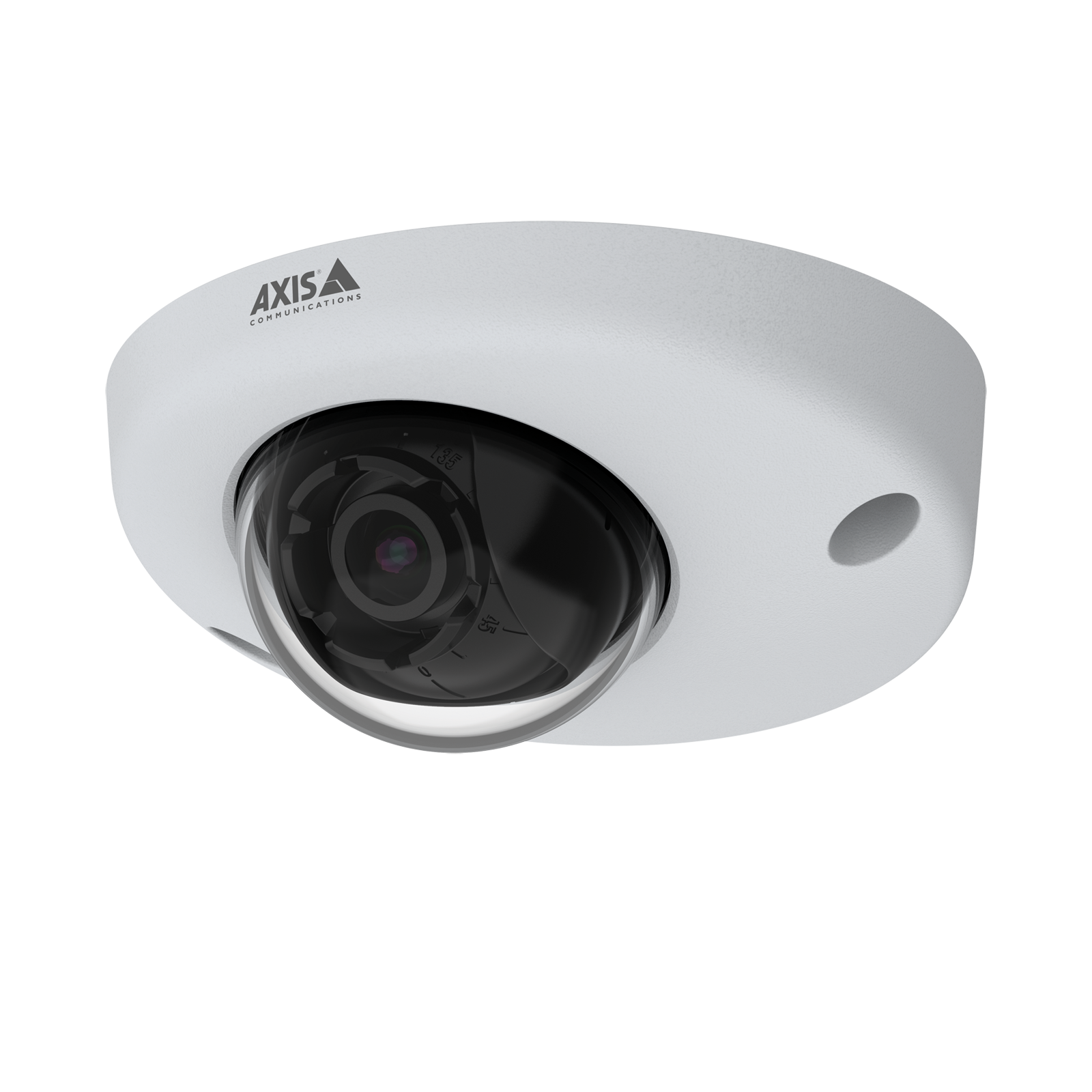

AXIS P3925-R M12 2.8mm 10P is a bulk pack 10x AXIS P3925-R. Full HDTV 1080p fixed dome onboard camera with female M12 connector for rolling stock and vehicles. Equipped with 2.8mm, F1.6 lens in ruggedized IP66/IP67 and IK10 rated metal casing. Multiple, individually configurable H.264, H.265 and Motion JPEG streams. Forensic WDR, Lightfinder technology and removable IR-cut filter for day/night functionality. Axis Zipstream technology for reduced bandwidth and storage needs, microSD/microSDHC/microSDXC memory card slot for optional local video storage.
AXIS Product Number: 01933-021
Technical specifications
Key specifications: video resolution up to 1920×1080; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 55 °C; PoE Class 2 powered; Forensic WDR. Manufacturer part number 01933-021.
Camera
| Specification |
Value |
| Lightfinder |
Lightfinder |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.06 lux |
| Min illumination/ light sensitivity (B/W) |
0.01 lux |
Video
| Specification |
Value |
| Max video resolution |
1920×1080 |
| Max frames per second |
25/30 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
Yes |
Power
| Specification |
Value |
| Power (max) |
– |
| Power (average) |
– |
Lens
| Specification |
Value |
| Focal length |
2.8 mm |
| Aperture |
1.6 |
| Horizontal field of view |
110 ° |
| Vertical field of view |
62 ° |
| Lens mount |
M12 |
| Replaceable lens |
Yes |
Pan Tilt Zoom
| Specification |
Value |
| Digital Pan/Tilt |
Yes |
| Digital zoom |
Yes |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
Audio
| Specification |
Value |
| Audio Support |
– |
| Two-way audio |
– |
| Built-in microphone |
– |
System Integration
| Specification |
Value |
| Audio detection |
– |
| Active tampering |
Yes |
| Alarm inputs/outputs |
– |
| AXIS Camera Application Platform |
Yes |
| Digital I/O |
– |
Network
| Specification |
Value |
| PoE Class |
2 |
Security
| Specification |
Value |
| HTTPS encryption |
Yes |
| IEEE 802.1X |
Yes |
| Signed OS |
Yes |
General
| Specification |
Value |
| Built-in IR |
– |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-40 to 55 °C |
| Outdoor Ready |
– |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
