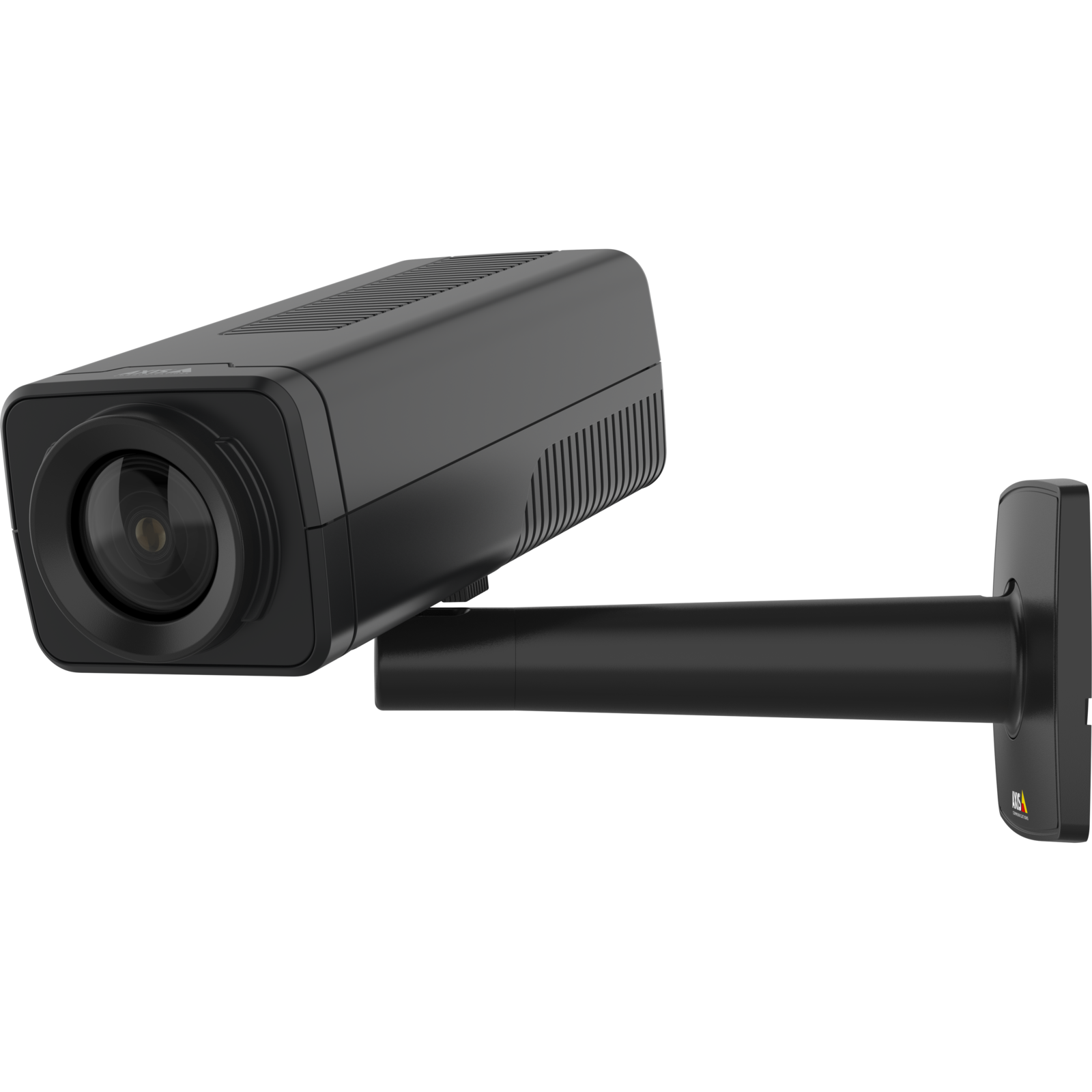

1/1.8” image sensor, 4 MP resolution, day/night, block camera with Deep Learning Processing Unit (DLPU). ARTPEC-9 SoC. Forensic WDR and Lightfinder 2.0. Varifocal IR corrected 4.7-10 mm F1.1 lens, 102°-44° HFOV with remote zoom and autofocus. Multiple, individually configurable H.264/H.265/AV1 with Zipstream and Motion JPEG. 4 MP stream up to 100/120 fps. AXIS Object Analytics, shock detection and active tampering alarm. AXIS Edge Vault with FIPS 140-3 Level 3 for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Audio in and supervised I/O port, microSD memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type1 Class 3 (PoE) or 10-28 V DC power with redundancy. Includes black stand for wall and ceiling. Midspan or power supply not included.
AXIS Product Number: 03392-001
Technical specifications
Key specifications: video resolution up to 2688×1512; operating range -10 to 60 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 03392-001.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/1.8" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.01 lux |
| Min illumination/ light sensitivity (B/W) |
0.002 lux |
Video
| Specification |
Value |
| Max video resolution |
2688×1512 |
| Max frames per second |
100/120 |
| Electronic image stabilization |
Yes |
Lens
| Specification |
Value |
| Focal length |
4.7 – 10 mm |
| Horizontal field of view |
101.8 – 44.0 ° |
| Vertical field of view |
54.0 – 24.6 ° |
| Lens mount |
– |
| Replaceable lens |
– |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
On |
Audio
| Specification |
Value |
| Audio Support |
Yes |
Network
| Specification |
Value |
| PoE Class |
3 |
| Wireless |
– |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| Secure keystore |
Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
General
| Specification |
Value |
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
– |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-10 to 60 °C |
| Outdoor Ready |
– |
| Vandal rating |
– |
| IP rating |
– |
| Designed for repaint |
– |
| Sustainability |
BFR/CFR free, PVC free |
Power
| Specification |
Value |
| Power (max) |
13.0 W |
| Power (average) |
– |
| DC input voltage |
10-28 V |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
