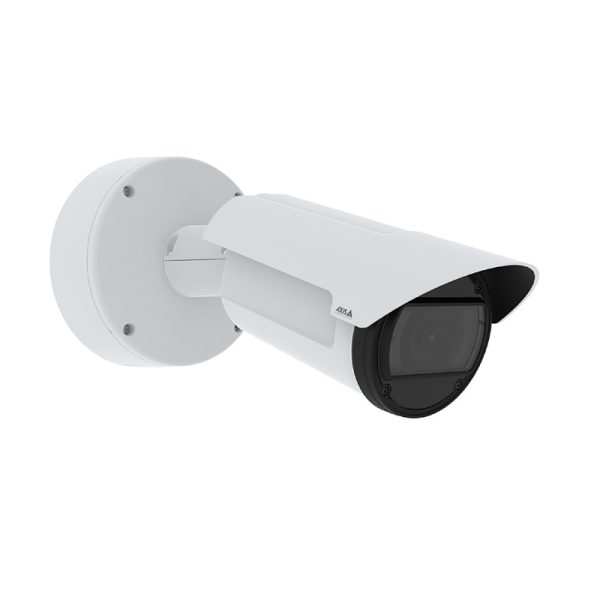

AXIS Q1805-LE Camera


First-class surveillance in 2 MP with 32x zoom

  • Outstanding image quality in 1080p
  • PoE out to power an additional device
  • Analytics with deep learning
  • Electronic image stabilization
  • Built-in cybersecurity with Axis Edge Vault

This high-performance bullet camera offers 2 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.

$1,669.00 USD

Request a quote

Robust, outdoor, NEMA 4X, IP66, IP67 and IK10-rated, 2 MP/1080p resolution, day/night, fixed bullet camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0 and OptimizedIR, a power-efficient 850 nm IR LED technology. Varifocal 4.3-137 mm, 32x optical zoom lens, 60°–2.3° HFOV with remote zoom and autofocus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 2MP up to 90 fps, 25/30 fps with WDR. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault with FIPS certified TPM for added cyber security. Corridor format, barrel distortion correction, defogging, electronic imaging stabilization and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. Integrated bracket for easy mounting on wall and ceiling. Operation in -40°C to +60°C (-40 °F to 140 °F). Powered by PoE class 4 (IEEE 802-3at), 10-28 V DC or 20-24 V AC. Includes a removable sunshield, IP66/67- rated cable glands and optional IDC punch connectors. 30 W PoE out to power an additional device, requires Axis Midspan 60 W, IEEE 802.3bt Type 3 Class 6. Power supply or midspan not included.

Product number: 02504-001
SKU: 7331021078482

AXIS Q1805-LE Camera

Technical specifications

Key specifications: video resolution up to 1920×1080; 32x optical zoom; IP66, IP67 rated; IK10 body, IK08 glass vandal-resistant; operating range -40 to 60 °C; PoE Class 4 powered; Forensic WDR. Manufacturer part number 02504-001.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/2.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) 0 lux

Video

Specification Value
Max video resolution 1920×1080
Max frames per second 90
Electronic image stabilization Yes

Lens

Specification Value
Focal length 4.3 – 137 mm
Optical zoom 32
Horizontal field of view 60 – 2.3 °
Vertical field of view 39 – 1.3 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes

Audio

Specification Value
Audio Support Yes

Network

Specification Value
PoE Class 4

Security

Specification Value
Signed OS Yes
Secure boot Yes
Secure keystore Secure Element (CC EAL6+)

General

Specification Value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10 body, IK08 glass
IP rating IP66, IP67
Designed for repaint Yes
Sustainability BFR/CFR free

Power

Specification Value
Power (max) 29.0 W
Power (average) 11.0 W

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 02504-001 Categories: , Tag: Brand:
Weight 8.58 lbs
Dimensions 15.55 × 7.87 × 8.27 in
Product Number

02504-001

Warranty

5 Year Warranty

Manufacturer

Axis Communications
