AXIS Q2802-E Bispectral Camera
Bispectral fixed camera combining a VGA thermal detection channel (NETD <20mK) with a 4K visual verification channel in one outdoor-ready device. AXIS Object Analytics preinstalled, AXIS Perimeter Defender compatible, Axis Edge Vault cybersecurity. Four lens variants — 17° (03046-001), 24° (03604-001), 31° (03602-001) and 63° (03600-001) HFoV at 30 fps.
Price range: $6,999.00 through $7,499.00 USD

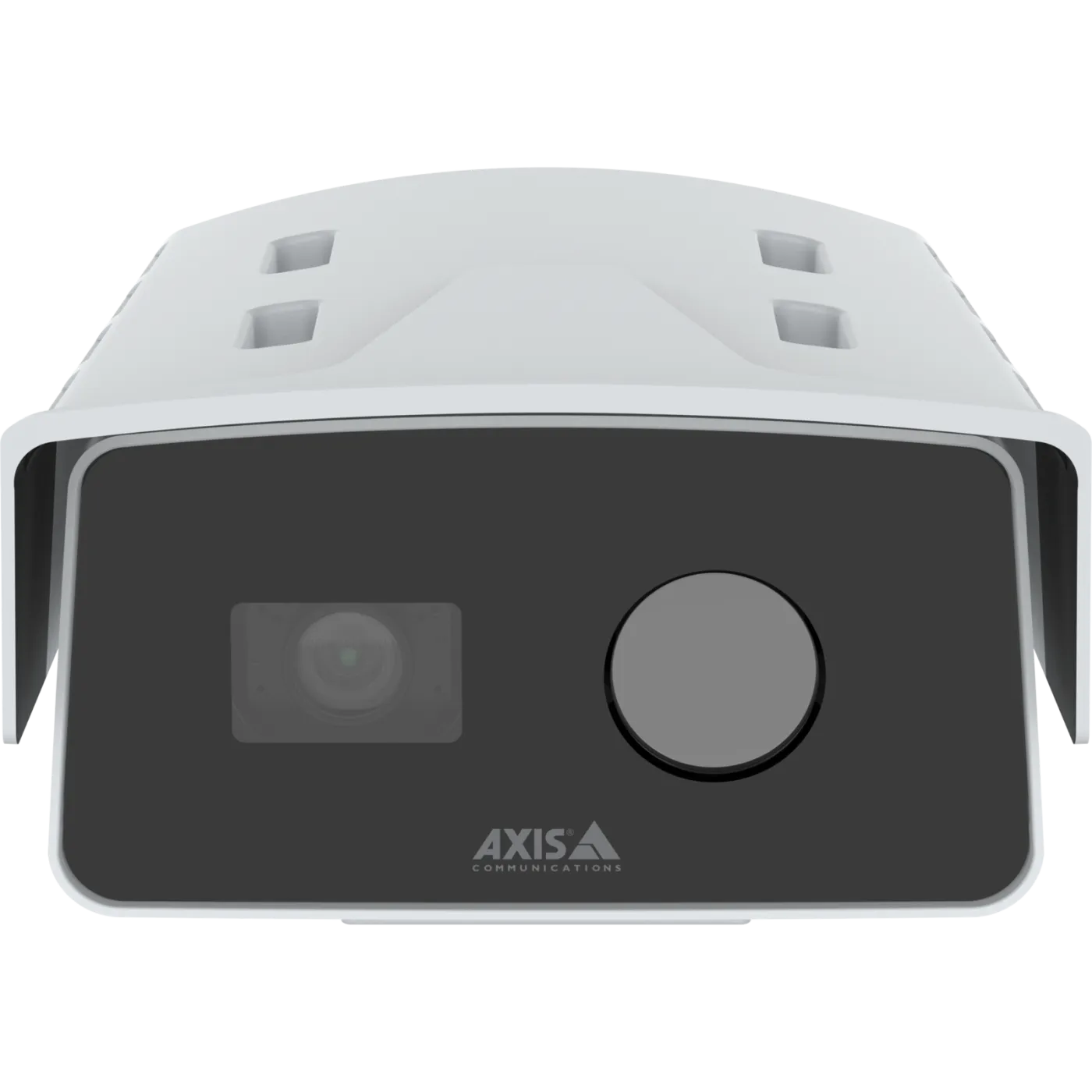

The AXIS Q2802-E Bispectral Camera is engineered to deliver robust, 24/7 detection and verification in a single, powerful device. This bispectral camera seamlessly combines two video streams: a high-performance VGA thermal channel for reliable detection of intruders and events in any weather or light condition, and a 4K visual channel for detailed identification. With thermal sensitivity of NETD <20mK, it offers extremely high detection performance with a low false alarm rate, and supports thermal-visual image fusion so operators can overlay both streams for complete situational awareness.
Ideal for perimeter protection and border surveillance, AXIS Q2802-E ships with AXIS Object Analytics preinstalled and is compatible with AXIS Perimeter Defender. Built-in cybersecurity features with Axis Edge Vault protect the device and simplify secure onboarding.

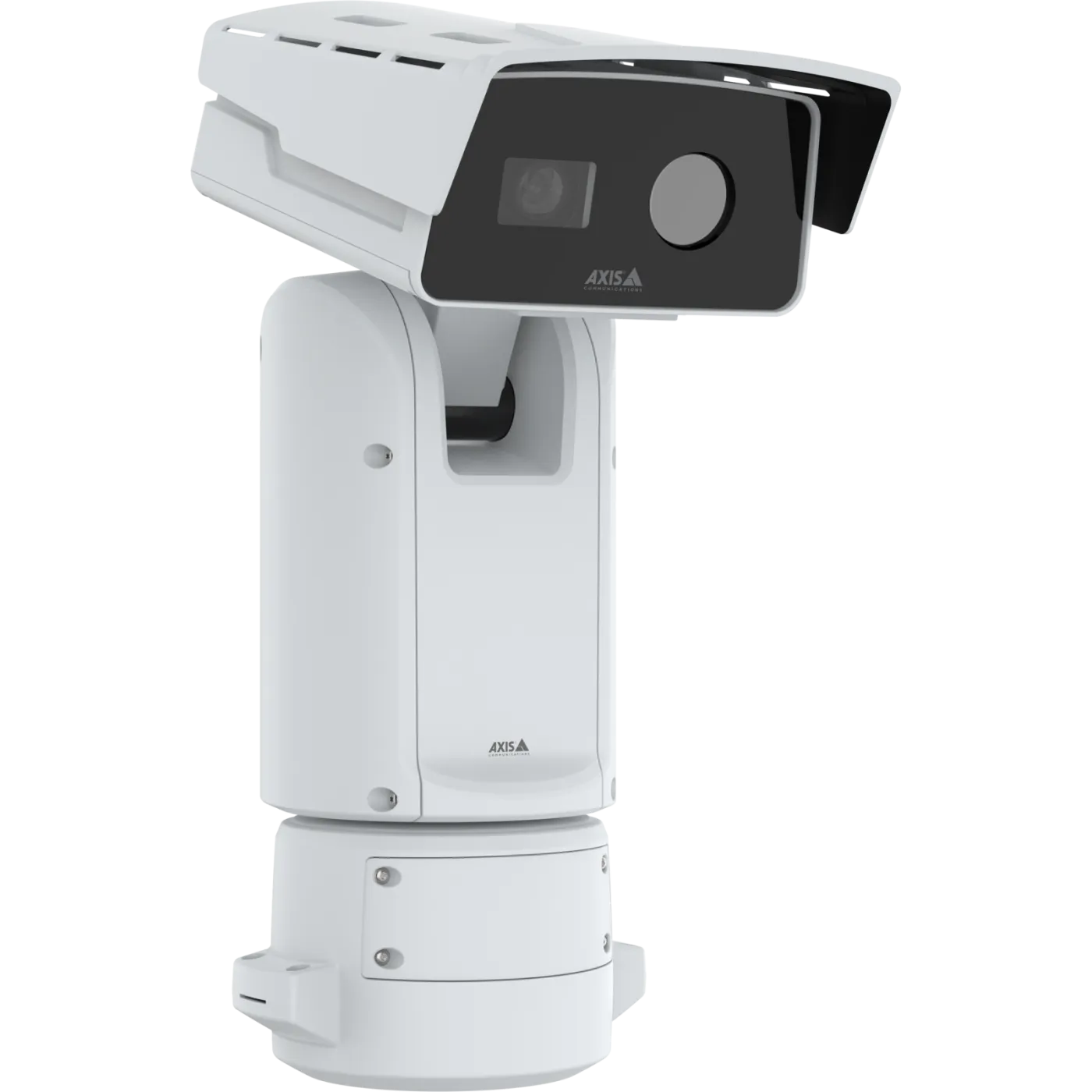

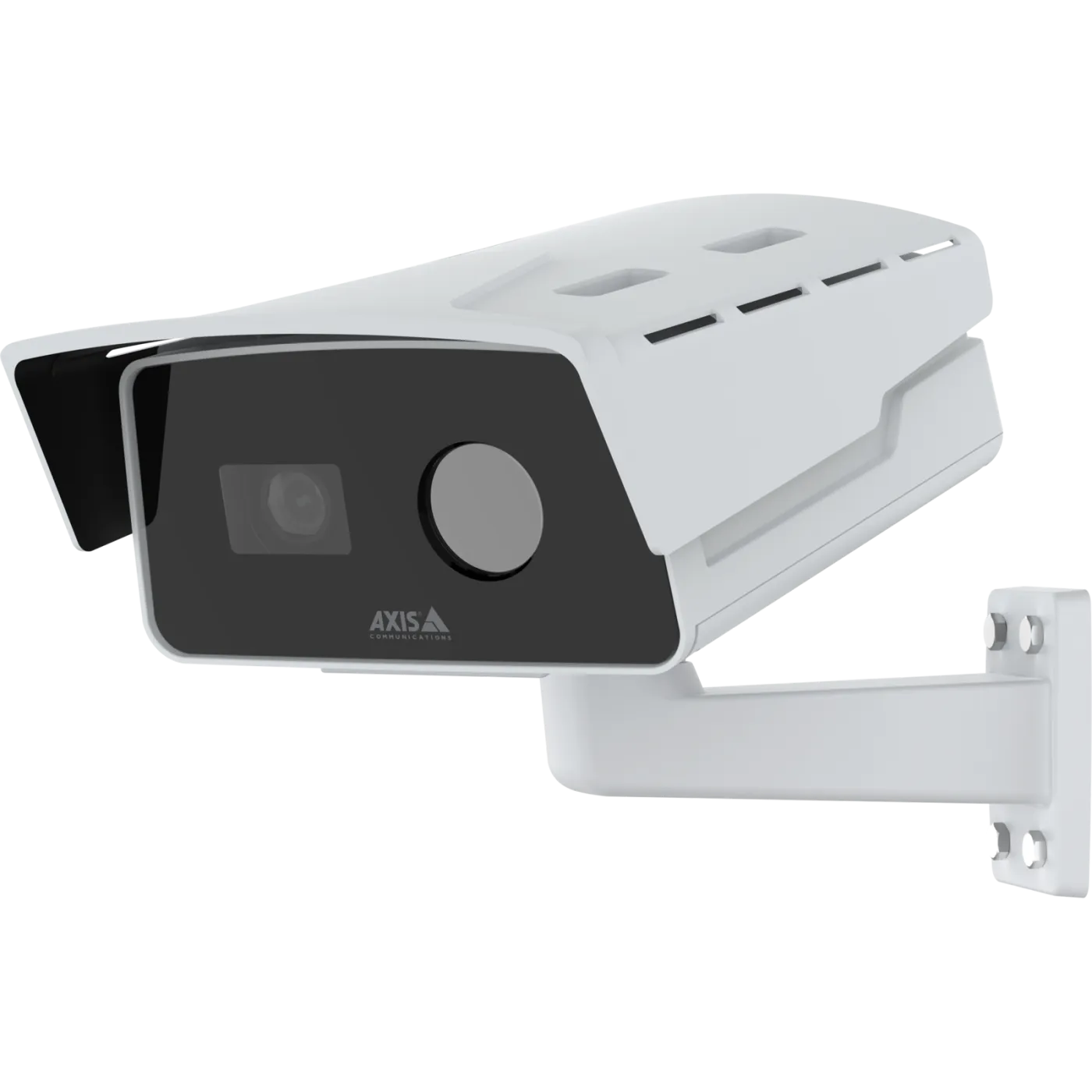

AXIS Q2802-E can be mounted on a standard or AXIS fixed arm mount, or PT-mounted for positioning coverage — the recommended PT unit is AXIS TQ1818. No mount is included; order the mount separately. The camera is available in four lens variants: 17° HFoV (part number 03046-001), 24° HFoV (03604-001), 31° HFoV (03602-001) and 63° HFoV (03600-001), all in 30 fps versions.
This product contains U.S.-origin controlled technology/components; the US Export Administration Regulations (EAR) apply at all times, and all applicable national and international (re-)export control regulations must be complied with.
Technical specifications
Key specifications: video resolution up to 3840×2160; IP66,IP67 rated; operating range -40 to 60 °C; PoE Class 4 powered. Manufacturer part number Q2802-E.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Thermal sensitivity (NETD) | – |
| Thermal sensor resolution | – |
Video
| Specification | Value |
|---|---|
| Max video resolution | 3840×2160 |
| Max frames per second | 25/30 |
| Electronic image stabilization | – |
| Thermal palettes | – |
Lens
| Specification | Value |
|---|---|
| Focal length * | 13.8 / 13.8 / 13.8 / 5.85 / 13.8 / 13.8 / 5.85 / 13.8 mm |
| Horizontal field of view * | 45.5 / 45.5 / 45.5 / 113.8 / 45.5 / 45.5 / 113.8 / 45.5 ° |
| Vertical field of view * | 25.8 / 25.8 / 25.8 / 61.9 / 25.8 / 25.8 / 61.9 / 25.8 ° |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
Sys
| Specification | Value |
|---|---|
| Audio detection | Yes |
| Active tampering | Yes |
| Alarm inputs/outputs | 2 |
| Serial connectors | Yes |
| Video motion detection | Yes |
Network
| Specification | Value |
|---|---|
| PoE Class | 4 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
General
| Specification | Value |
|---|---|
| Local storage (memory card slot) | Yes |
| Operating temperature | -40 to 60 °C |
| Outdoor Ready | Yes |
| IP rating | IP66,IP67 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Lens | 17 HFoV, 24 HFoV, 31 HFoV, 63 HFoV |
| Product Number | 03046-001, 03600-001, 03602-001, 03604-001 |
| Manufacturer | Axis Communications |
