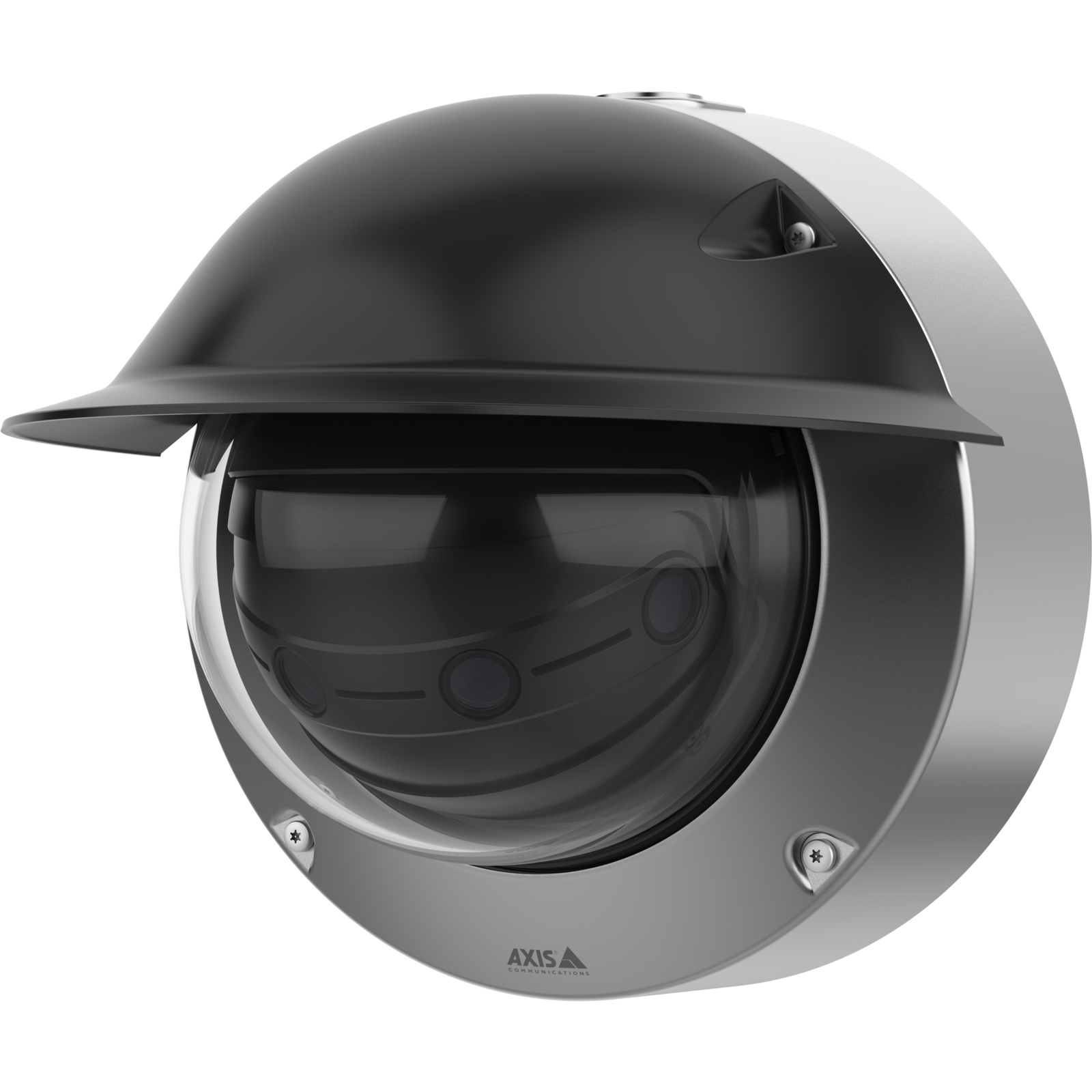

AXIS Q3839-SPVE

AXIS Q3839-SPVE

AXIS panoramic network camera

  • With Deep Learning Processing Unit (DLPU)
  • | Weathershield has to be bought seperately
  • With 29 MP resolution and seamless stitching of all four images, it offers 180° horizontal and 90° vertical coverage at 25/30 FPS
  • The camera is perfect for complete situational awareness without any blind spots
  • The product’s powerful AI solution is made possible by a dual ARTPEC-8 chipset and gives a comprehensive analytics experience over the whole 180° field of view

$2,899.00 USD

Request a quote

Advanced fixed dome camera focusing on the maritime environment, NSF/ANSI Standard 169 Special Purpose Food Equipment and Devices electropolished stainless steel (SS 316L) outdoor casing, offering high corrosion resistance and IK11/ IP 66/67/68/ Nema 4X. With Deep Learning Processing Unit (DLPU).

Weathershield has to be bought seperately.

AXIS Q3839-SPVE delivers a 180º panoramic overview of extensive areas. With 29 MP resolution and seamless stitching of all four images, it offers 180° horizontal and 90° vertical coverage at 25/30 FPS. The camera is perfect for complete situational awareness without any blind spots. The product’s powerful AI solution is made possible by a dual ARTPEC-8 chipset and gives a comprehensive analytics experience over the whole 180° field of view. AXIS Q3839-PVE comes with pan/tilt/roll installation motors for ease of installation and offers the Horizon Straightening feature for natural 180° views.

AXIS Product Number: 03201-001

Technical specifications

Key specifications: video resolution up to 7552×3776; IP66, IP67, IP68, IP6K9K rated; IK10 vandal-resistant; operating range -40 to 50 °C; Forensic WDR. Manufacturer part number 03201-001.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.03 lux

Video

Specification Value
Max video resolution 7552×3776
Max frames per second 30
Day and Night functionality Yes
Electronic image stabilization –

Lens

Specification Value
Focal length 4.6 mm
Horizontal field of view 180 °
Vertical field of view 90 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes

Audio

Specification Value
Audio Support Yes

Security

Specification Value
Signed OS Yes
Secure boot Yes

General

Specification Value
Remote focus –
Remote zoom –
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67, IP68, IP6K9K
Sustainability BFR/CFR free, PVC free

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 03201-001 Category: Tags: , , Brand:
