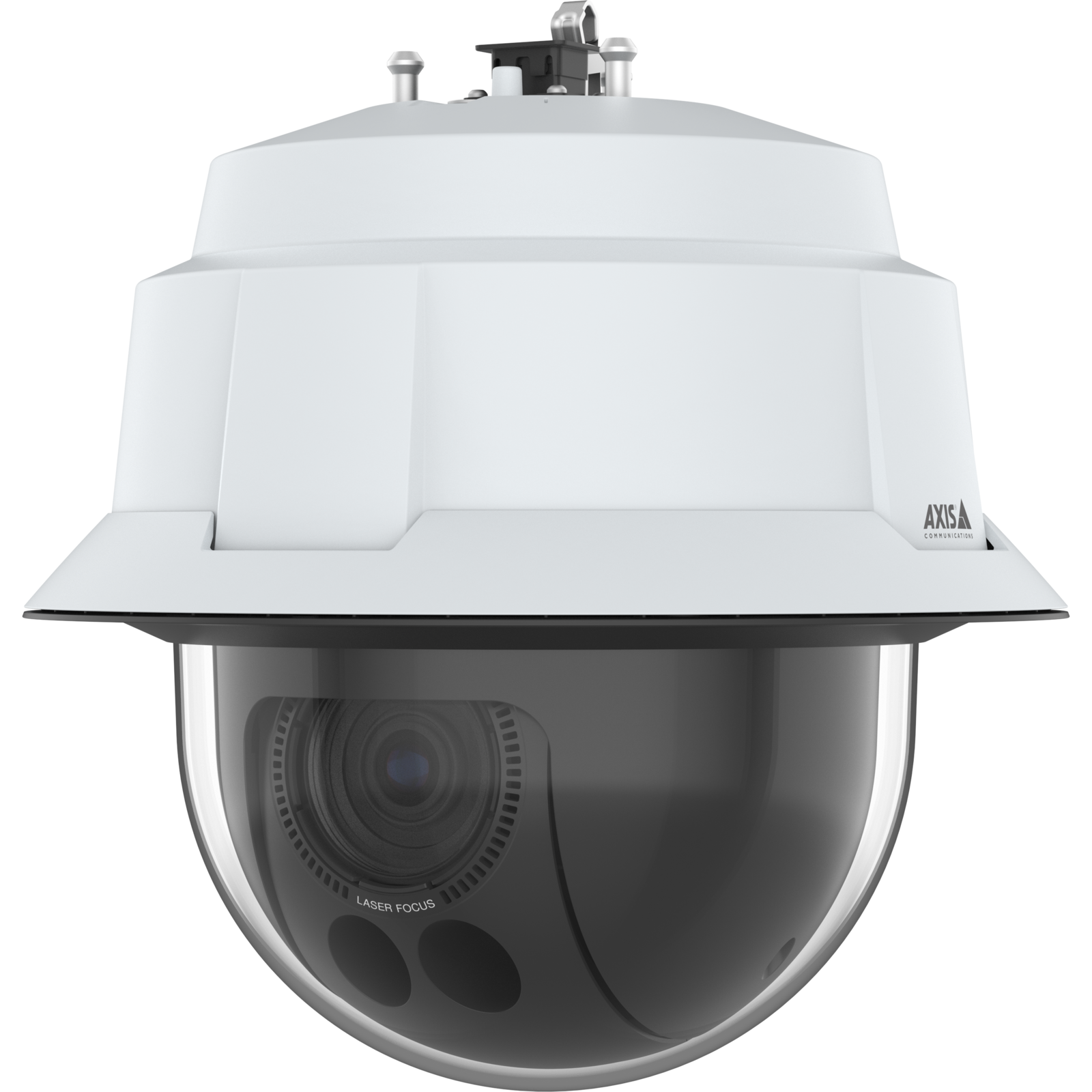

High-end PTZ camera, 4MP @50/60fps, High sensitive ½” RGB sensor, 34x optical Quick zoom and Laser focus. Outdoor-ready, IP66, IK10 and NEMA 4x-rated, NEMA TS2 for temperature up to 74C (165F). Zipstream with new AV1 and H.264/ H.265, Arctic Temperature Control enables start up from -40 °C/F. Auto day/night functionality. Continuous 360º rotation. Shock detection, Autotracking 2, Tour recording and Active Gatekeeper. Compass ruler overlay, Privacy mask with chameleon and mosaic masking. Artpec 9 with DLPU including AOA for clasification. Clear transparent dome cover and High PoE midspan with fiber slot, two-way audio and I/O. No mounting bracket included (several different accessories available).
AXIS Product Number: 03188-004
Technical specifications
Key specifications: video resolution up to 2688×1512; 34x optical zoom; IP66, IP67 rated; IK10 vandal-resistant; operating range -50 to 55 °C; PoE Class 6 powered; Forensic WDR. Manufacturer part number 03188-004.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.08 lux |
| Min illumination/ light sensitivity (B/W) |
0.009 lux |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| TPM |
– |
General
| Specification |
Value |
| Built-in IR |
– |
| OptimizedIR |
– |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-50 to 55 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67 |
| Designed for repaint |
Yes |
Analytics
| Specification |
Value |
| Autotracking version |
Autotracking 2 |
| Orientation aid |
orientation aid PTZ |
Video
| Specification |
Value |
| Max video resolution |
2688×1512 |
| Max frames per second |
60 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
Yes |
Lens
| Specification |
Value |
| Focal length |
6.64 – 225.50 mm |
| Horizontal field of view |
61.5 – 2.0 ° |
| Vertical field of view |
37.3 – 1.1 ° |
Pan Tilt Zoom
| Specification |
Value |
| Pan range |
360 endless |
| Tilt range |
0 to -90 |
| Guard tour |
preset position tour |
| Optical zoom |
34 |
| Digital zoom |
12 |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
On |
Audio
| Specification |
Value |
| Audio Support |
Yes |
| Built-in microphone |
– |
Sys
| Specification |
Value |
| Audio detection |
– |
| Active tampering |
Yes |
| Alarm inputs/outputs |
– |
Network
| Specification |
Value |
| PoE Class |
6 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
