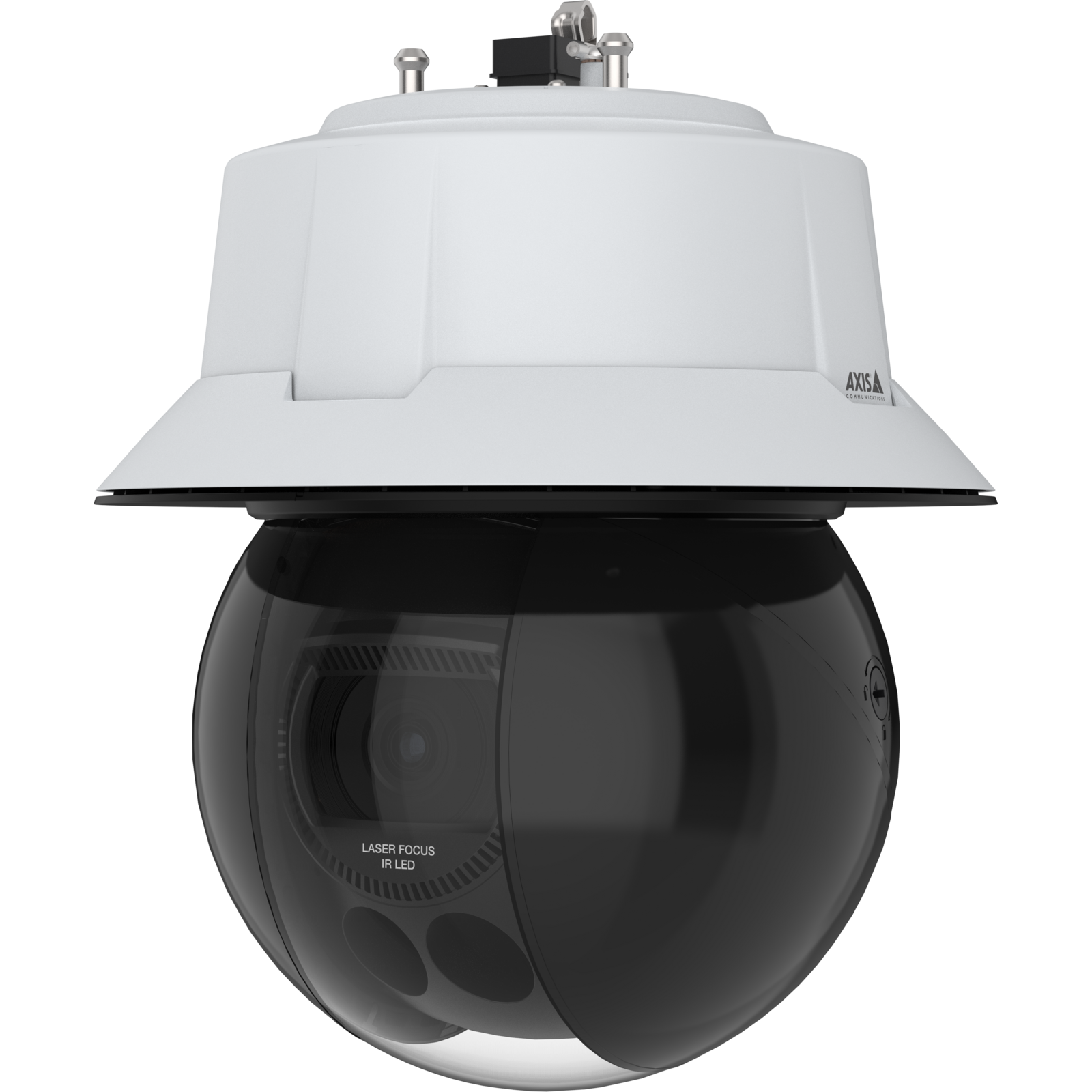

High-end PTZ camera with 4K UHD @50/60fps, High sensitive ½” RGB sensor, 31x optical Quick zoom and Laser focus. Outdoor-ready, IP66, IK10 and NEMA 4x-rated, NEMA TS2 for temperature up to 74C (165F). Zipstream with new compression AV1 and H.264/ H.265, Arctic Temperature Control enables operation and start up from -40 °C/F. Auto day/night functionality, IR illumination up to 250M (820Feet). Continuous 360º rotation. Shock detection, Autotracking 2, Tour recording and Active Gatekeeper. Compass ruler overlay, Privacy mask with chameleon and mosaic masking. Build in AI with DLPU including AOA. Clear transparent dome cover. No Midspan or mounting bracket included (several different accessories available).
AXIS Product Number: 02977-301
Technical specifications
Key specifications: video resolution up to 3840×2160; 31x optical zoom; IP66,IP67 rated; IK10 vandal-resistant; operating range -50 to 55 °C; PoE Class 6 powered; Forensic WDR. Manufacturer part number 02977-301.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.11 lux |
| Min illumination/ light sensitivity (B/W) |
0.001 lux |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| TPM |
– |
General
| Specification |
Value |
| Built-in IR |
Yes |
| OptimizedIR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-50 to 55 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66,IP67 |
| Designed for repaint |
Yes |
Analytics
| Specification |
Value |
| Autotracking version |
Autotracking 2 |
| Orientation aid |
orientation aid PTZ |
Video
| Specification |
Value |
| Max video resolution |
3840×2160 |
| Max frames per second |
50/60 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
Yes |
Lens
| Specification |
Value |
| Focal length |
6.91 – 214.64 mm |
| Horizontal field of view |
58.5 – 2.3 ° |
| Vertical field of view |
34.9 – 1.4 ° |
Pan Tilt Zoom
| Specification |
Value |
| Pan range |
360 endless |
| Tilt range |
+20 to -90 |
| Guard tour |
preset position tour |
| Optical zoom |
31 |
| Digital zoom |
12 |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
On |
Audio
| Specification |
Value |
| Audio Support * |
Yes / – |
| Built-in microphone |
– |
Sys
| Specification |
Value |
| Audio detection |
– |
| Active tampering |
Yes |
| Alarm inputs/outputs |
– |
Network
| Specification |
Value |
| PoE Class |
6 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
