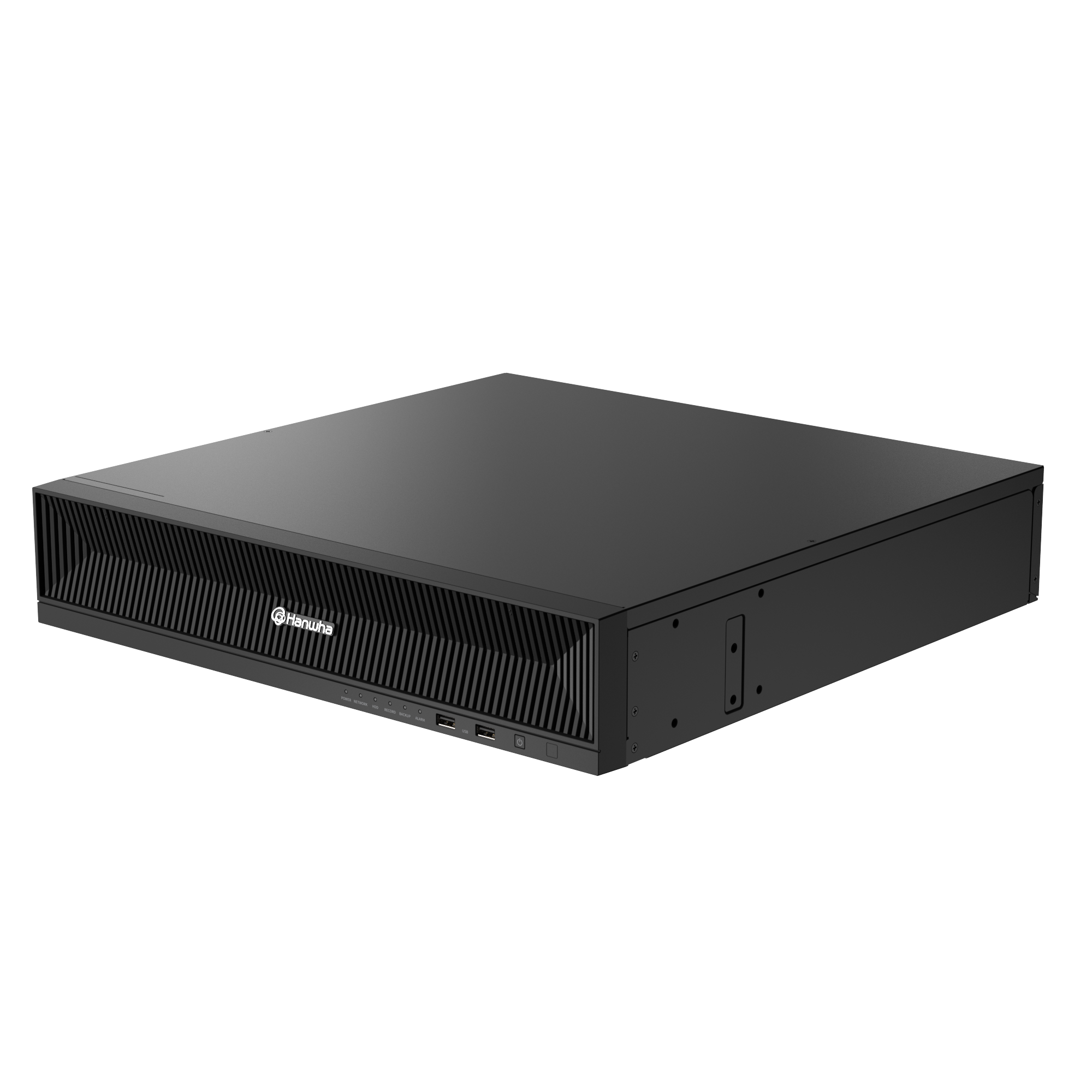

Hanwha BRR-X3210A2E BLAZE Recording Server (Hardened OS)
BLAZE Recording Server (Hardened OS)
Price range: $14,870.00 through $21,910.00 USD
2U BLAZE Network Video Recorder, BLAZE VMS pre-installed, 32 x BLAZE Premium Licenses included, up to 32 channels, 8TB raw (~7TB usable after disk formatting, no RAID), 520 Mbps recording B/W, 8 x SATA HDD Bays, 12th Gen Intel Core-S Pentium, 16GB DDR4 RAM, 256GB SSD OS drive, Hardened OS, RAID not supported, 1 x HDMI (FHD) output, 1 x HDMI (4K) output, 3 x 1GbE NICs, IPMI not supported, Keyboard and mouse included
Available as Hanwha Vision part numbers: BRR-X3210A2E-8TB; BRR-X3210A2E-16TB; BRR-X3210A2E-20TB; BRR-X3210A2E-32TB; BRR-X3210A2E-40TB; BRR-X3210A2E-64TB; BRR-X3210A2E-80TB.
Technical specifications
System
| Specification | Value |
|---|---|
| Video Management Software | BLAZE VMS |
| Licenses | 32 x BLAZE Premium License |
| Available Channels | Up to 32 channels |
| Recording Rate | Up to 250Mbps |
| OS Drive Bays | SSD 128GB |
| Data Drive Bays | SATA 8ea |
| Data Storage | Up to 80TB |
| Network Interface | 3 x RJ-45 (1Gbps) |
| Processor | 12th Intel Core-S Pentium |
| Memory | 16GB DDR4 |
| Operating System | Hardened OS |
| Decoding — Video Outputs | 1 x HDMI(FHD), 1 x HDMI(4K) |
| USB Ports | Front 2 x USB 2.0 Rear 2 x USB 3.0 |
| Audio — Output | 1x Audio output |
| Audio — Audio Communication | 2-Way (Audio In: USB Mic) |
| Keyboard & Mouse | Keyboard, Mouse |
Security
| Specification | Value |
|---|---|
| Security Certificate | FIPS 140-3 Level3 |
Mechanical
| Specification | Value |
|---|---|
| Form Factor | 2U rack |
| Color / Material | Black / Metal |
| Dimensions (WxHxD) | 17.24"(438mm) x 3.39"(86mm) x 17.12"(434.9mm) |
| Weight | 19.62lbs (8.90Kg) |
Electrical
| Specification | Value |
|---|---|
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz |
| Power Consumption | 203W (692.7BTU, Max) |
Environmental
| Specification | Value |
|---|---|
| Operating Temperature | 32°F to 104°F(0°C to 40°C) |
| Operating Humidity | 20% to 85% RH (non-condensing) |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
