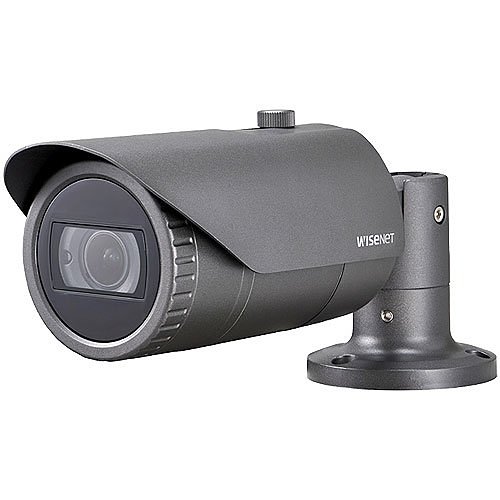

Hanwha HCO-6080R 2MP Analog HD IR Bullet
,

Hanwha HCO-6080R 2MP Analog HD IR Bullet

2MP Analog HD IR Bullet

$367.00 USD

Request a quote

Wisenet HD+ 2MP, Full HD(1080p) 30fps IR outdoor bullet camera, AHD/TVI/CVI/CVBS, motorized vari-focal lens (3.1X) (3.2-10mm), 120 dB true WDR, true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10

Available as Hanwha Vision part number HCO-6080R.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080
Max. Framerate(NTSC/PAL) 30fps/25fps
Min. Illumination — Color(1/30sec, 30IRE) 0.11
Min. Illumination — BW(1/30sec, 30IRE) 0.011
Video Out BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance 500m(5C2V Coaxial Cable)

Lens

Specification Value
Focal Length (mm) 3.2~10
Optical Zoom Ratio 3.1x
Max Aperture Ratio (F number) — Wide 1.6
Angular Field of View — Horizontal 110.2° ~ 32°
Angular Field of View — Vertical 55.4° ~ 18°
Angular Field of View — Diagonal 128.4° ~ 36.6°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris(IR corrected)

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection — Quantity 4ea
Privacy Masking — Quantity 8ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High, Very High
White Balance ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Speed Range 1~1/12,000sec
Video Rotation Flip, Mirror
Alarm Interface — In/Out Output 1ea
Alarm Triggers Analytics
Alarm Events When Alarm Trigger Occurred Alarm output
IR Viewable Length 30m(98.43ft)
Coaxial Protocol ACP, TCP, CCP, CVBS

Analytics

Specification Value
Analytics Events — Normal Motion detection

Environmental & Electrical

Specification Value
Operating Condition — Temperature -30°C~+60°C(-22°F~+140°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Operating Condition — Others Start up should be done at above -10°C
Storage Condition — Temperature -30°C~+60°C
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage 24VAC, 12VDC
Power Consumption — 12VDC Max 5.8W
Power Consumption — 24VAC Max 5.8W

Mechanical

Specification Value
Color Dark grey
Material Aluminum
Product Dimensions ø78.0×259.8mm(3.07×10.23")
Product Weight 948g(2.09 lb)

Certifications & Standards

Specification Value
Environment IEC 60529 IP66, IEC 62262 IK10

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
