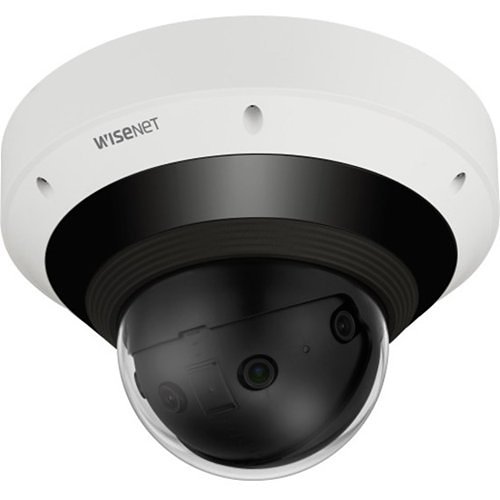

Hanwha PNM-9031RV 15MP Panoramic Camera
,

Hanwha PNM-9031RV 15MP Panoramic Camera

15MP Panoramic Camera

$3,100.00 USD

Request a quote

Network vandal outdoor Multi-sensor dome camera, panoramic view with stitched image, (5MP X 4 sensors) 15MP @ 20fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, IR viewable length 20m (65.5′), built in video analytics and sound classification, Heatmap, Bi-directional audio support, Micro SD 2 slots, IP66/IK10/NEMA4X, TPM 2.0 (FIPS 140-2 level 2), PoE+/12VDC

Available as Hanwha Vision part number PNM-9031RV.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 6720×2240, 5952×1984, 4992×1664, 3840×1280, 3072×1024, 1920×640, 1152×384
Max. Framerate — H.265/H.264 20fps/20fps(60Hz/50Hz)
Max. Framerate — MJPEG 15fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.1
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.01
Video Out USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 4.3
Max Aperture Ratio (F number) — Wide 1.6
Angular Field of View — Horizontal 195.3°~197.0°
Angular Field of View — Vertical 63.6°
Min. Object Distance 5m(16.4ft)
Focus Control Fixed

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt 0°~60°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅤ
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape Rectangular zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror
Alarm Interface — In/Out 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED
Light Viewable Length — IR WiseIR 20m(65.62ft) 4 individual zones with Automatic and Manual level adjustment
IR Wavelength 850nm

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual area(Appear/Disappear), Virtual line(Crossing, Direction)
Business Intelligence — Normal Heatmap

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 15 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 5 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PIM-SM
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API)

Security

Specification Value
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication HTTPS
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security Certificate TPM 2.0 with FIPS 140-2 level2

General

Specification Value
Memory — RAM 8GB
Memory — Flash 4GB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 2slot(Total 512GB)

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+55°C(-40°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Operating Condition — Others Start up should be done at above -30°C
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption — PoE Max. 23.5W, typical 18W
Power Consumption — 12VDC Max. 20.5W, typical 16W

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions ø253x170mm(9.96×6.69")
Product Weight 2,900g(6.39lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
Environment IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
