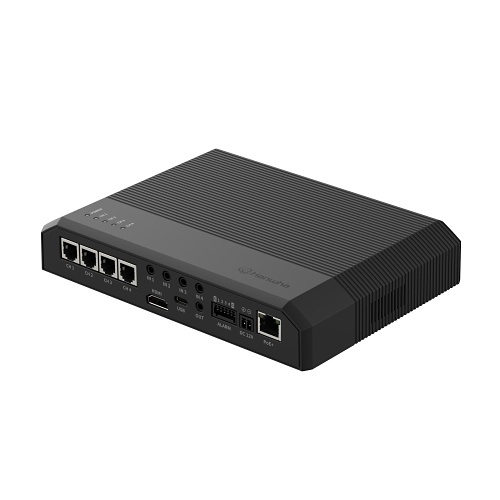

Hanwha PNM-C20000QB AI Remote head 2MP/5MP x 4CH camera
AI Remote head 2MP/5MP x 4CH camera
$1,600.00 USD
Wisenet P series network remote head camera 4CH x 2MP @ 30FPS or 4CH x 5MP @ 15FPS, Triple codec H.265/H.264/MJPEG, 120dB WDR, Analytics events based on AI engine: Classified object type: Person/Face/Vehicle/License plate, Attributes: Vehicle(Type and color: car/bus/truck/motorcycle/bicycle), Person (upper and bottom clothing color), IVA (Virtual line/Area, Enter/Exit, Loitering, Intrusion), Appear/Disappear, Business intelligence based on AI engine: People counting, Vehicle counting, Queue management, Heatmap, WiseNR â…¡(Based on AI engine), WiseStreamâ…¢(Based on AI engine), USB-C for easy installation, 4 x Selectable I/O, 4 x Audio inputs, 1 Audio Out, TPM with FIPS 140-3 level3, Built-in microSD card slots (Up to 512GB x2), 12VDC/PoE+, Compatible with 2MP lenses: SLA-T4680A/T4680VA, SLA-T2480A/T2480VA, SLA-T1080FA / 5MP Lenses: SLA-F2480BA, SLA-F2480WA, SLA-F2480WDA, SLA-F4780A, SLA-F4780VA, SLA-F2480A, SLA-F2480VA, SLA-F1080FA
Product notes: Compatible with 2MP/5MP “A” revision lenses only.
Available as Hanwha Vision part number PNM-C20000QB.
Technical specifications
Video
| Specification | Value |
|---|---|
| Resolution | 2592×1944, 2560×1440, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240, 320×180 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle., HDMI(Single/Quad view) |
Lens
| Specification | Value |
|---|---|
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2480WDA, SLA-T2480WA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780VA, SLA-F2480WDA, SLA-F2480WA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480HA |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRâ…¡(Based on AI engine), SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 16ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) – Each channel separately |
| Alarm Interface — In/Out | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | 4 x Selectable(mic in/line in) |
| Audio Out | Line out |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes — Person | Upper/Lower clothes color |
| Attributes — Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Audio detection, Shock detection |
| Business Intelligence — Based on AI Engine | People counting, Vehicle counting |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 4 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
General
| Specification | Value |
|---|---|
| SoC — Type | NT98690 |
| Memory — RAM | 8GB |
| Memory — Flash | 8GB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -10°C~+45°C(+14°F~+113°F) |
| Operating Condition — Humidity | 0~95% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | Max. 25.5W, typical 23.8W |
| Power Consumption — 12VDC | Max. 23.1W, typical 21.5W |
Mechanical
| Specification | Value |
|---|---|
| Color | Black |
| Material | Plastic |
| Material Management — Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9005 |
| Product Dimensions | 200(W)x37(H)x146(D)mm(7.87×1.46×5.75") |
| Product Weight | 1,015g(2.24lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000 |
Ver
| Specification | Value |
|---|---|
| Ver | 202508 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
