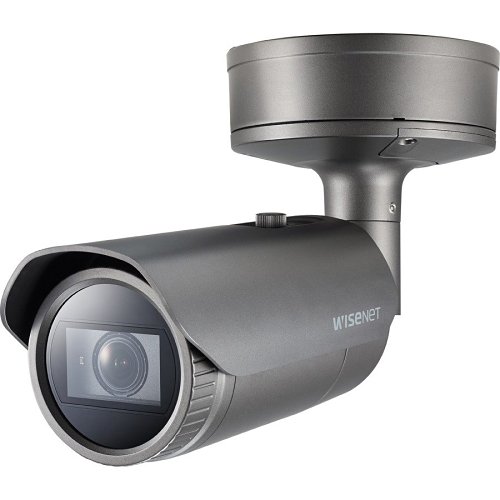

Hanwha PNO-A9081RLP 4K IR Bullet AI camera with Wisenet Road AI
4K IR Bullet AI camera with Wisenet Road AI
$3,000.00 USD
4K Low-Moderate Speed LPR Bullet Camera with Wisenet Road AI. Max. 4K resolution, 4.5~10mm(2.2x) M-Varifocal(4K) lens, 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on), Day & Night(ICR), WDR(120dB), H.265, H.264, MJPEG codec, WiseStream III, POE+, IP66/67/IP6K9K, IK10+, NEMA4X
LPR + MMCR: Make, Model & Color* Recognition on the Edge. 32GB Micro SD storage for up to 10,000 LPR/Vehicle images, Licensed open platform application for multiple regions/countries.
(* Color recognition only during day time)
Product notes: Care is required in selecting the install location – See product selector and quick reference guide for details.
Available as Hanwha Vision part number PNO-A9081RLP.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.8" |
| Imaging Device — Type | CMOS |
| Resolution | 3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.05 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.005 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 4.5~10 |
| Zoom Ratio — Optical | 2.2x |
| Max Aperture Ratio (F number) — Wide | 1.6 |
| Max Aperture Ratio (F number) — Tele | 2.65 |
| Angular Field of View — Horizontal | 101.4°~45.5° |
| Angular Field of View — Vertical | 53.6°~25.5° |
| Angular Field of View — Diagonal | 120.7°~52.3° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | P iris(IR corrected) |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 6ea |
| Privacy Masking — Shape | Rectangular zones |
| Privacy Masking — Color / Option | Gray, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 1/5~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | Input 1ea, Output 1ea |
| Alarm Interface — Others | 12VDC output |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | WiseIR 30m(98.42ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 6 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API) |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 4GB |
| Memory — Flash | 512MB |
| Edge Storage — Micro SD/SDHC/SDXC | 1slot (32GB card preinstalled) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Operating Condition — Others | Start up should be done at above -30°C |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | Max 20.00W, typical 17.00W |
| Power Consumption — 12VDC | Max 18.00W, typical 16.00W |
Mechanical
| Specification | Value |
|---|---|
| Color | Dark grey |
| Material | Aluminum |
| Product Dimensions | Ø91.0×368.6mm(3.58"x14.51")(Without sunshield) |
| Product Weight | 2.48kg(5.47lb) |
Wisenet Road AI LPR/ANPR/MMCR
| Specification | Value |
|---|---|
| App Type | CNN (Convolutional Neural Network) AI |
| LPR Usage Condition — NA | Community Traffic, Parking Application |
| LPR Usage Condition — EU | Community Traffic, Parking Application |
| Speed Description by Region — NA | Low to Moderate Speed |
| Speed Description by Region — EU | Low to Moderate Speed |
| Lane Coverage_NA — 1 Lane | 3.6m/12ft wide (with built in IR) |
| Lane Coverage_NA — 2 Lanes | 8.1m/26ft wide (with built in IR) |
| Lane Coverage_EU — 1 Lane | 3.6m/12ft wide (with built in IR) |
| Lane Coverage_EU — 2 Lanes | 8.1m/26ft wide (with built in IR) |
| Lane Coverage_EU — 3 Lanes | 16.2m/53ft wide (with built in IR) |
| Plate Capture Resolution_NA — 1 Lane | 4K |
| Plate Capture Resolution_NA — 2 Lanes | 4K |
| Plate Capture Resolution_EU — 1 Lane | 4K |
| Plate Capture Resolution_EU — 2 Lanes | 4K |
| Plate Capture Resolution_EU — 3 Lanes | 4K |
| Speed Limit_NA — 1 Lane | Up to 90km/h (56mph) |
| Speed Limit_NA — 2 Lanes | Up to 70km/h (43mph) |
| Speed Limit_EU — 1 Lane | Up to 110km/h (68mph) |
| Speed Limit_EU — 2 Lanes | Up to 100km/h (62mph) |
| Speed Limit_EU — 3 Lanes | Up to 45km/h (28mph) |
| Min. Forward Distance_NA — 1 Lane | 6m (19.7ft) |
| Min. Forward Distance_NA — 2 Lanes | 8m (26.2ft) |
| Min. Forward Distance_EU — 1 Lane | 6m (19.7ft) |
| Min. Forward Distance_EU — 2 Lanes | 6m (19.7ft) |
| Min. Forward Distance_EU — 3 Lanes | 9m (29.5ft) |
| Max. Forward Distance_NA — 1 Lane | 15m (49.2ft) |
| Max. Forward Distance_NA — 2 Lanes | 15m (49.2ft) |
| Max. Forward Distance_EU — 1 Lane | 20m (65.6ft) |
| Max. Forward Distance_EU — 2 Lanes | 20m (65.6ft) |
| Max. Forward Distance_EU — 3 Lanes | 20m (65.6ft) |
| Max. Horizontal Angle by Region — NA | 30° for highway, 45° for traffic observation |
| Max. Horizontal Angle by Region — EU | 30° for highway, 45° for traffic observation |
| Max. Vertical Angle by Region — NA | 30° |
| Max. Vertical Angle by Region — EU | 30° |
| Vehicle Recognition | Make: 100+ makes Model: 4700+ models Color: 11 colors |
| Available Countries | Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United Stat |
| Integration Options | JSON over HTTP, UTMC 1, UTMC 2, NVR, Wisenet WAVE |
| VMS Support | Wisenet WAVE, Wisenet SSM, Genetec Security Center, Milestone Xprotect, Genetec AutoVu |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
