Bullet Cameras, Video Cameras

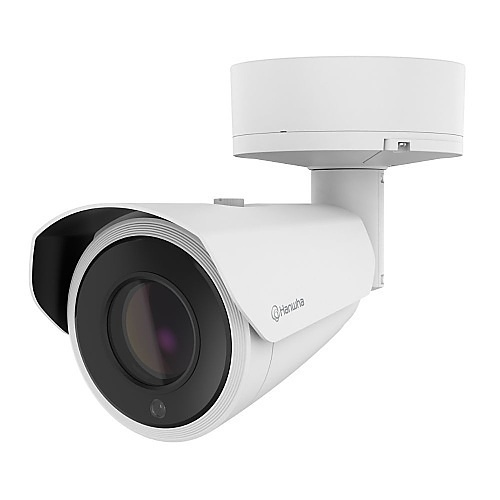

Hanwha PNO-A9311RLP 4K, AI IR Zoom (31x), Bullet Camera with Wisenet Road AI
4K, AI IR Zoom (31x), Bullet Camera with Wisenet Road AI
$3,500.00 USD
4K Low- Moderate Speed dedicated LPR Bullet Camera with Wisenet Road AI, Max. 4K resolution @ 30FPS, 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on), WiseIR for LPR plate reads for approx. 200ft (61m), Day & Night(ICR), 6.91~214.64mm (31x) zoom lens, WDR(120dB) H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStream Ⅲ (Using AI engine). Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+/12VDC, Metal shielded RJ-45, IP66/IP67, IK10, NEMA4X
Road AI, LPR application is pre-installed and licensed on the camera that provides LPR + MMCR (Make, Model & Color*) Recognition on the Edge.
(* Color recognition only during day time)
Product notes: Care is required in selecting the install location – Refer to the quick reference guide for details.
Available as Hanwha Vision part number PNO-A9311RLP.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.8" |
| Imaging Device — Type | CMOS |
| Resolution | 3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.075 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.0075 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 6.91~214.7 |
| Zoom Ratio — Optical | 31x |
| Max Aperture Ratio (F number) — Wide | 1.36 |
| Max Aperture Ratio (F number) — Tele | 4.6 |
| Angular Field of View — Horizontal | 60.92°~2.2° |
| Angular Field of View — Vertical | 35.26°~1.24° |
| Angular Field of View — Diagonal | 69.18°~2.52° |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Simple focus |
| Lens Type | P iris(IR corrected) |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 3ea |
| Privacy Masking — Shape | Rectangular zones |
| Privacy Masking — Color / Option | Gray, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 1/5~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | 2 configurable I/O ports |
| Alarm Interface — Others | 12VDC output |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | WiseIR 70m(229.66ft) |
| IR Wavelength | 850nm |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamâ…¡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 6 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 6 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2, TPM 2.0 with FIPS 140-2 level2 |
General
| Specification | Value |
|---|---|
| Memory — RAM | 4GB |
| Memory — Flash | 1GB |
| Edge Storage — Micro SD/SDHC/SDXC | 1slot (32GB card preinstalled) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Operating Condition — Others | Start up should be done at above -30°C |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | PoE+: Max 25.5W, typical 14.0W |
| Power Consumption — 12VDC | 12VDC: Max 24.0W, typical 12.7.W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø136.2×358.7mm(ø5.36×14.12")(Without sunshield) |
| Product Weight | 3200g(7.05lb) |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 130.6m(428.4ft) |
| Detect (25PPM/ 8PPF) — Tele | 4,000m(13,122ft) |
| Observe (63PPM/ 19PPF) — Wide | 52.2m(171.4ft) |
| Observe (63PPM/ 19PPF) — Tele | 1,600m(5,249ft) |
| Recognize (125PPM/ 38PPF) — Wide | 26.1m(85.7ft) |
| Recognize (125PPM/ 38PPF) — Tele | 800m(2,625ft) |
| Identify (250PPM/ 76PPF) — Wide | 13.1m(42.8ft) |
| Identify (250PPM/ 76PPF) — Tele | 400m(1,312ft) |
Wisenet Road AI LPR/ANPR/MMCR
| Specification | Value |
|---|---|
| App Type | CNN (Convolutional Neural Network) AI |
| LPR Usage Condition — NA | City Traffic |
| LPR Usage Condition — EU | City Traffic |
| Speed Description by Region — NA | High Speed |
| Speed Description by Region — EU | High Speed |
| Lane Coverage_NA — 1 Lane | 3.6m/12ft wide (with built in IR) |
| Lane Coverage_NA — 2 Lanes | 8.1m/26ft wide (with built in IR) |
| Lane Coverage_EU — 1 Lane | 3.6m/12ft wide (with built in IR) |
| Lane Coverage_EU — 2 Lanes | 8.1m/26ft wide (with built in IR) |
| Lane Coverage_EU — 3 Lanes | 16.2m/53ft wide (with built in IR) |
| Plate Capture Resolution_NA — 1 Lane | 4K |
| Plate Capture Resolution_NA — 2 Lanes | 4K |
| Plate Capture Resolution_EU — 1 Lane | 4K |
| Plate Capture Resolution_EU — 2 Lanes | 4K |
| Plate Capture Resolution_EU — 3 Lanes | 4K |
| Speed Limit_NA — 1 Lane | Up to 250km/h (155mph) |
| Speed Limit_NA — 2 Lanes | Up to 160km/h (99mph) |
| Speed Limit_EU — 1 Lane | Up to 250km/h (155mph) |
| Speed Limit_EU — 2 Lanes | Up to 200km/h (124mph) |
| Speed Limit_EU — 3 Lanes | Up to 150km/h (93mph) |
| Min. Forward Distance_NA — 1 Lane | 13m (42.6ft) |
| Min. Forward Distance_NA — 2 Lanes | 33m (108.2ft) |
| Min. Forward Distance_EU — 1 Lane | 7m (22.9ft) |
| Min. Forward Distance_EU — 2 Lanes | 20m (65.6ft) |
| Min. Forward Distance_EU — 3 Lanes | 33m (108.2ft) |
| Max. Forward Distance_NA — 1 Lane | 70m (229.6ft) |
| Max. Forward Distance_NA — 2 Lanes | 70m (229.6ft) |
| Max. Forward Distance_EU — 1 Lane | 70m (229.6ft) |
| Max. Forward Distance_EU — 2 Lanes | 70m (229.6ft) |
| Max. Forward Distance_EU — 3 Lanes | 70m (229.6ft) |
| Max. Horizontal Angle by Region — NA | 30° for highway, 45° for traffic observation |
| Max. Horizontal Angle by Region — EU | 30° for highway, 45° for traffic observation |
| Max. Vertical Angle by Region — NA | 30° |
| Max. Vertical Angle by Region — EU | 30° |
| Vehicle Recognition | Make: 100+ makes Model: 4700+ models Color: 11 colors |
| Available Countries | Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United Stat |
| Integration Options | JSON over HTTP, UTMC 1, UTMC 2, NVR, Wisenet WAVE |
| VMS Support | Wisenet WAVE, Wisenet SSM, Genetec Security Center, Milestone Xprotect, Genetec AutoVu |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
