Hanwha QNO-7082R 4MP IR Bullet
,

Hanwha QNO-7082R 4MP IR Bullet

4MP IR Bullet

$650.00 USD

Request a quote

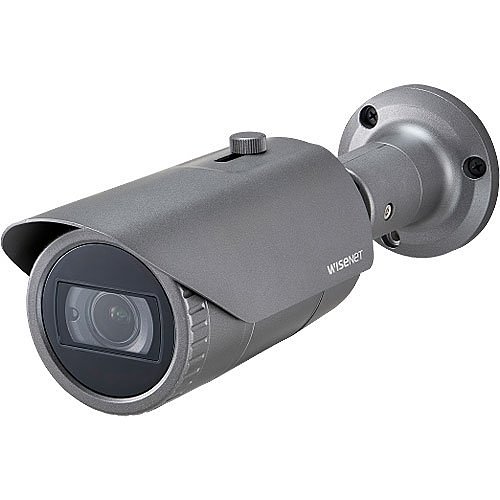

Wisenet Q network outdoor vandal bullet camera, 4MP @30fps, motorized vari-focal lens 3.1x (3.2 ~ 10.0mm) (109°~33.2°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 30m (98.42′), Motion detection, Tampering, Defocus detection, Hallway view, LDC support, One way audio – Line in, built-in SD card slot (1x128GB), IP66, IK10, PoE/12VDC

Available as Hanwha Vision part number QNO-7082R.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/3"
Imaging Device — Type CMOS
Resolution 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 15fps(@4MP Max. 2fps)
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.1
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.01
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation

Lens

Specification Value
Focal Length (mm) 3.2~10
Zoom Ratio — Optical 3.1x
Max Aperture Ratio (F number) — Wide 1.6
Max Aperture Ratio (F number) — Tele 2.9
Angular Field of View — Horizontal 99°~30°
Angular Field of View — Vertical 53°~17°
Angular Field of View — Diagonal 116°~35°
Focus Control Simple focus
Lens Type DC auto iris

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt 0°~100°
Pan / Tilt / Rotate Range — Rotate 0°~360°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNR
Motion Detection — Quantity 4ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 1/5~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
Audio In Selectable(mic in/line in)
Light Type IR LED
Light Viewable Length — IR 30m(98.42ft)
IR Wavelength 850nm

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 6 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 3 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PPPoE, PIM-SM
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API)
Direct Cloud Connection Optional (needs gateway)

Security

Specification Value
OS / Firmware Protect Encrypted firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt(AES-256)

General

Specification Value
Memory — RAM 512MB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 128GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+55°C(-40°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Operating Condition — Others Start up should be done at above -30°C
Storage Condition — Temperature -40°C~+60°C(-40°F~+140°F)
Storage Condition — Humidity 0~95% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption — PoE Max 11.4W, typical 8W
Power Consumption — 12VDC Max 9.6W, typical 7W

Mechanical

Specification Value
Color Dark grey
Material Aluminum
Product Dimensions ø78.0×259.8mm(3.07×10.23")
Product Weight 900g(1.98lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
Environment IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 27m(89.86ft)
Detect (25PPM/ 8PPF) — Tele 129m(422.61ft)
Observe (63PPM/ 19PPF) — Wide 11m(35.95ft)
Observe (63PPM/ 19PPF) — Tele 52m(169.04ft)
Recognize (125PPM/ 38PPF) — Wide 6m(17.97ft)
Recognize (125PPM/ 38PPF) — Tele 26m(84.52ft)
Identify (250PPM/ 76PPF) — Wide 3m(8.99ft)
Identify (250PPM/ 76PPF) — Tele 13m(42.26ft)

Ver

Specification Value
Ver 202407

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
