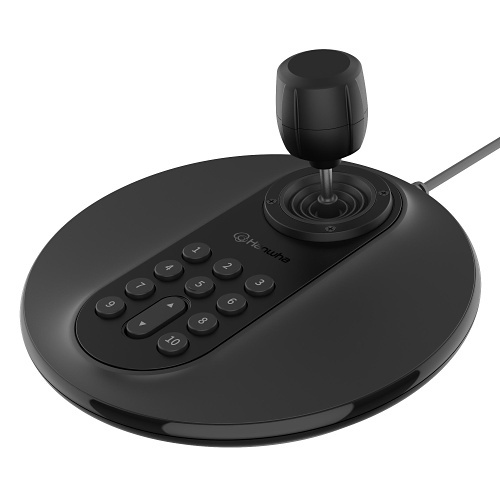

Controller, USB 3D joystick
Available as Hanwha Vision part number SPC-2001.
Technical specifications
Communication
| Specification | Value |
|---|---|
| Interface | 4-pin USB Type A Port |
Operational
| Specification | Value |
|---|---|
| Joystick | Hall-effect 3 Axis |
| Button | 12ea |
Performance
| Specification | Value |
|---|---|
| Range of Movement — X/Y-Axis | -28° ~ +28° |
| Range of Movement — Z Axis | -23.5° ~ +23.5° |
| Center | Two Spring, Two Directions |
| Minimum Power | 0.109 [N·m] |
| Operating Power | 0.151 [N·m] |
| Maximum Power | 0.169 [N·m] |
Environmental
| Specification | Value |
|---|---|
| Operating Temperature | 0℃ to +40℃ (20% ~ 85% RH) |
Electrical
| Specification | Value |
|---|---|
| Operating Voltage | (DC 5 [V]), Vdd = 5 [V] (±0.5 [V]) via USB |
| Operating Current | 50 [mA] |
Mechanical
| Specification | Value |
|---|---|
| Dimensions (WxhxD) | 182x182x106mm |
| Weight | 405g |
Materials
| Specification | Value |
|---|---|
| Housing | ABS |
| Handle | Poly Carbonate |
| Cover | Rubber (Button) |
| Shaft | SUM24L + Ni plating |
| Cable Length | 2 [m] |
| Color | Black |
Software
| Specification | Value |
|---|---|
| Drivers | Standard DirectX Drivers (DirectInput) |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
