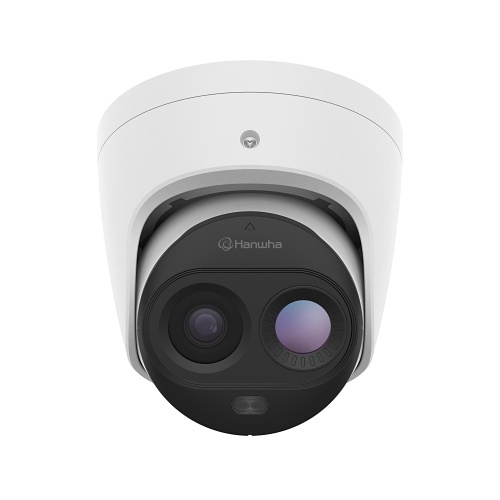

Hanwha TNM-C2712TDR Bi-spectrum Early Fire Detection Camera
, ,

Hanwha TNM-C2712TDR Bi-spectrum Early Fire Detection Camera

Bi-spectrum Early Fire Detection Camera

$2,574.00 USD

Request a quote

Wisenet T network Bi-spectrum Early Fire Detection Camera, Thermal: 160 x 120 (uncooled) @ 8fps, <50mK (NETD), built-in 1.2mm fixed lens (95° HFoV / 69° VFoV), Visible: 3MP, built-in 3.06mm fixed lens (100° HFoV / 73° VFoV), Max. 2048 x 1536 resolution @ 30fps, Triple codec H.265/H.264/MJPEG with Wisestream II support, Analytics (thermal): temperature detection, temperature difference detection, motion detection, Analytics (visible): early fire detection, motion detection, audio detection, tampering, Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset, HTTP/HTTPS/TCP message), Audio clip playback, MQTT (publication), Early fire detection: 3 user programmable quadrangle ROIs, Radiometric: 2 user programmable quadrangle ROIs, temperature detection range from -10°C to 450°C (-14°F to 842°F), micro SD card (512GB x1), PoE (802.3af)

Product notes: Thermal cameras with frame rates under 9fps versions do not require end user export documentation.

Available as Hanwha Vision part number TNM-C2712TDR.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS / Uncooled micro bolometer (160×120)
Resolution 2048×1536, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 / 640×480, 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz) / 8fps
Max. Framerate — MJPEG 5fps
Spectral Range 8~14㎛
NETD ≤50mK
Pixel Size 12㎛
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.06
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.06

Lens

Specification Value
Focal Length (mm) 3.06 / 1.2
Max Aperture Ratio (F number) — Wide F1.6 / F1.1
Angular Field of View — Horizontal 100 / 95
Angular Field of View — Vertical 73 / 69
Angular Field of View — Diagonal 129 / 119
Min. Object Distance 1.1m(3.6ft) / 0.15m(0.49ft)
Focus Control Fixed

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt 0°~70°
Pan / Tilt / Rotate Range — Rotate 0°~360°

Operational

Specification Value
Day & Night Auto(Electrical)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅤ
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape Rectangular zones
Privacy Masking — Color / Option Gray, Black, White
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 1/5~1/12,000sec
Video Rotation Flip, Mirror
Alarm Interface — In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input, MQTT subscription
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication, Light alarm
Audio In Selectable(mic in/line in)
Audio Out Line out
Color Pallettes Whitehot, Sepia, Red, Custom

Radiometry

Specification Value
Temperature Detect Range -10°C~450°C
Temperature Accuracy Greater of ±10°C or 10%
Temperature Detection ROI Zones — Quantity 2ea
Temperature Detection ROI Zones — Shape / Option Rectangle
Spot Temperature Reading Support
ROI Condition Monitoring Above, Below, Increase, Decrease

Security

Specification Value
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt(AES-256)

General

Specification Value
Memory — RAM 2GB
Memory — Flash 512MB
Edge Storage — Micro SD/SDHC/SDXC Max. 512GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -30°C~+55°C(-22°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Operating Condition — Others Start up should be done at above -10°C
Storage Condition — Temperature -40°C~+60°C(-40°F~+140°F)
Storage Condition — Humidity 0~95% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption — PoE Max 10.8W, typical 6.2W

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions Ø110x97mm(ø4.33×3.82")
Product Weight 650g(1.43lb)
Compatible Gang Box Single

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK09

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 34.4m(112.8ft)
Observe (63PPM/ 19PPF) — Wide 13.7m(44.9ft)
Recognize (125PPM/ 38PPF) — Wide 6.9m(22.6ft)
Identify (250PPM/ 76PPF) — Wide 3.4m(11.1ft)

Thermal Detection Range

Specification Value
Temperature Detection 7m(22.96ft)
Early Fire Detection 7m(22.96ft)

Ver

Specification Value
Ver 20250829

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
