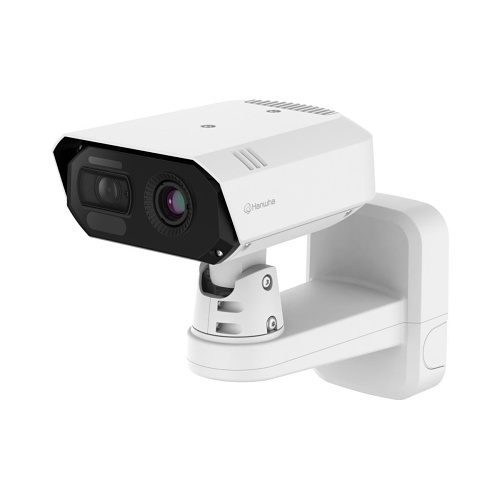

Hanwha TNM-C4940TDR Bi-spectrum AI Radiometric Camera VGA thermal / 4K visible
Bi-spectrum AI Radiometric Camera
VGA thermal / 4K visible
$12,020.00 USD
Wisenet T network Bi-spectrum AI Radiometric Camera, Thermal: 640 x 480 (uncooled) @ 30fps, <60mK (NETD), built-in 9.1mm fixed lens (HFoV: 50°),Visible: 4K, built-in 4.4~9.3mm motorized varifocal lens (HFoV: 112.1°~47.5°), Max. 3840 x 2160 resolution @ 30fps, Triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support, WDR 120dB, IR viewable length 30m (98ft), AI object detection (thermal): Person/Vehicle, AI object detection (visible): Person/Face/Vehicle (car,bus,truck, motorcycle, bicycle)/License Plate, Analytics events based on AI engine: Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Additional analytics events (thermal): Motion detection, Additional analytics events (visible): Motion detection, Defocus detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset, HTTP/HTTPS/TCP message), Audio clip playback, MQTT (publication), Radiometric: whole FoV area or up 10 user programmable quadrangle ROIs, temperature detection range from -20°C to 130°C (-4°F to 266°F), FIPS 140-2, 2x micro SD card (512GB x2), IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9), PoE+/12VDC
This product is subject to the Thermal agreement.
Product notes: Special Order; Non-cancellable; Non-returnable.
Available as Hanwha Vision part number TNM-C4940TDR.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.8" |
| Imaging Device — Type | Uncooled micro bolometer (640×480) / CMOS |
| Resolution | 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 / 3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 3fps / 1fps |
| Max. Framerate — Others | Max. 15fps when both channel AI on |
| Spectral Range | 8~14㎛ |
| NETD | ≤60mK |
| Pixel Size | 12㎛ |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.06 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.004 |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 9.1 / 4.4~9.3 |
| Max Aperture Ratio (F number) — Wide | 1.0 / 1.3 |
| Max Aperture Ratio (F number) — Tele | 2.15 |
| Angular Field of View — Horizontal | 50.0° / 112.1°~47.5° |
| Angular Field of View — Vertical | 37.0° / 58.0°~26.6° |
| Angular Field of View — Diagonal | 63.8° / 137.5°~54.6° |
| iFoV | 1.319mRad |
| Min. Object Distance | 3.5m(11.48ft) / 1.75m(5.74ft) |
| Focus Control | Fixed / Simple focus |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | -170° ~+170° |
| Pan / Tilt / Rotate Range — Tilt | -40°~50° |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 6ea |
| Privacy Masking — Shape | Rectangular zones |
| Privacy Masking — Color / Option | Gray, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter — Speed Range | 1/5~1/12,000sec |
| Alarm Interface — In/Out | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | 30m(98.42ft) |
| IR Wavelength | 850nm |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Vehicle / Person, Face, Vehicle, License plate |
| Attributes — Vehicle | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Analytics Events — Normal | Motion detection, Temperature detection / Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear) |
Radiometry
| Specification | Value |
|---|---|
| Temperature Detect Range | -20°C~130°C |
| Temperature Accuracy | ±5°C(≤100°C), ±20%(>100°C) |
| Temperature Detection ROI Zones — Quantity | 10ea |
| Temperature Detection ROI Zones — Shape / Option | Polygonal |
| Hybrid Pallettes | Support |
| Spot Temperature Reading | Support |
| ROI Condition Monitoring | Above, Below, Increase, Decrease |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | WiseStreamⅡ / Manual, WiseStreamⅢ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 6 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface — ONVIF | S, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Specification | Value |
|---|---|
| Memory — RAM | 4GB |
| Memory — Flash | 512MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition — Humidity | 0~95% RH(non-condensing) |
| Operating Condition — Others | Start up should be done at above -30°C |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | Max. 25.5W, Typical 16.0W |
| Power Consumption — 12VDC | Max. 21.5W, Typical 14.0W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | 353.4(W)x287.5(H)x191.2(D)mm(13.92×11.32×7.53") |
| Product Weight | 4.53kg(9.99lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X, NEMA TS 2-2013 (2.2.8, 2.2.9) |
DRI (Johnson's Criteria)
| Specification | Value |
|---|---|
| Detection — Person(1.67PPM) | 412m(1,351ft) |
| Detection — Vehicle(0.65PPM) | 1,052m(3,452ft) |
| Recognition — Person(6.67PPM) | 103m(338ft) |
| Recognition — Vehicle(2.61PPM) | 263m(863ft) |
| Identification — Person(13.33PPM) | 51m(169ft) |
| Identification — Vehicle(5.22PPM) | 132m(432ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
