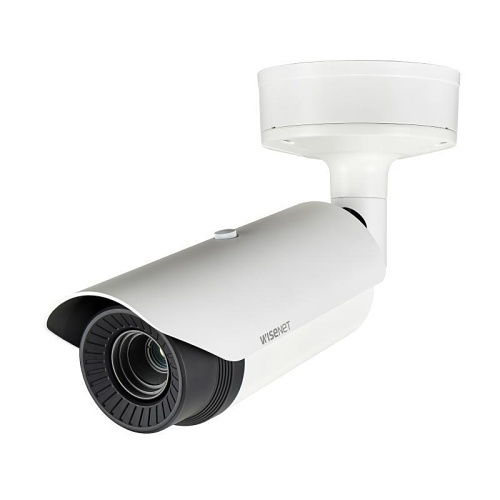

Hanwha TNO-L4040TR VGA Radiometric Bullet
VGA Radiometric Bullet
$9,240.00 USD
Wisenet T network outdoor vandal Radiometric bullet camera (uncooled), 640×480 @ 8fps, 19mm fixed focal lens (32°), triple codec H.265/H.264/MJPEG with Wisestream II, built-in SD card slot (1x256GB), advanced video analytics and sound classification, PTZ handover, up to 6 user programmable temperature detection areas, temperature detection range is from (-4°F ~ 266°F) , open platform, DIS(Gyro), integrated back box, IP66, IK10, PoE/12VDC/24VAC, white color
Product notes: Thermal cameras with frame rates under 9fps versions do not require end user export documentation.
Available as Hanwha Vision part number TNO-L4040TR.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Type | Uncooled micro bolometer (640×480) |
| Resolution | 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 8fps |
| Max. Framerate — MJPEG | 8fps |
| NETD | ≤50mK |
| Pixel Size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 19 |
| Max Aperture Ratio (F number) — Wide | 1.0 |
| Angular Field of View — Horizontal | 32° |
| Angular Field of View — Vertical | 24.3° |
| Angular Field of View — Diagonal | 39.2° |
| Min. Object Distance | 11m(36.09ft) |
| Focus Control | Fixed |
Operational
| Specification | Value |
|---|---|
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 24ea |
| Privacy Masking — Shape | Polygonal zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | Input 1ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection |
Radiometry
| Specification | Value |
|---|---|
| Temperature Detect Range | -20°C~130°C |
| Temperature Accuracy | ±5°C(≤100°C), ±20%(>100°C) |
| Temperature Detection ROI Zones — Quantity | 6ea |
| Temperature Detection ROI Zones — Shape / Option | Quadrangle |
| Hybrid Pallettes | Support |
| Spot Temperature Reading | Support |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamâ…¡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT, PIM-SM |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication | HTTPS, SRTP |
| Access Control | IP-based access control |
| Audit | Access / System / Event Log management |
General
| Specification | Value |
|---|---|
| Memory — RAM | 1GB |
| Memory — Flash | 256MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC |
| Power Consumption — PoE | Max. 10W, typical 8.6W |
| Power Consumption — 12VDC | Max. 9W, typical 7.5W |
| Power Consumption — 24VAC | Max. 10.5W, typical 8.9W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø101.97×401.8mm(4.01×15.82") |
| Product Weight | 3175g(7.01lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
