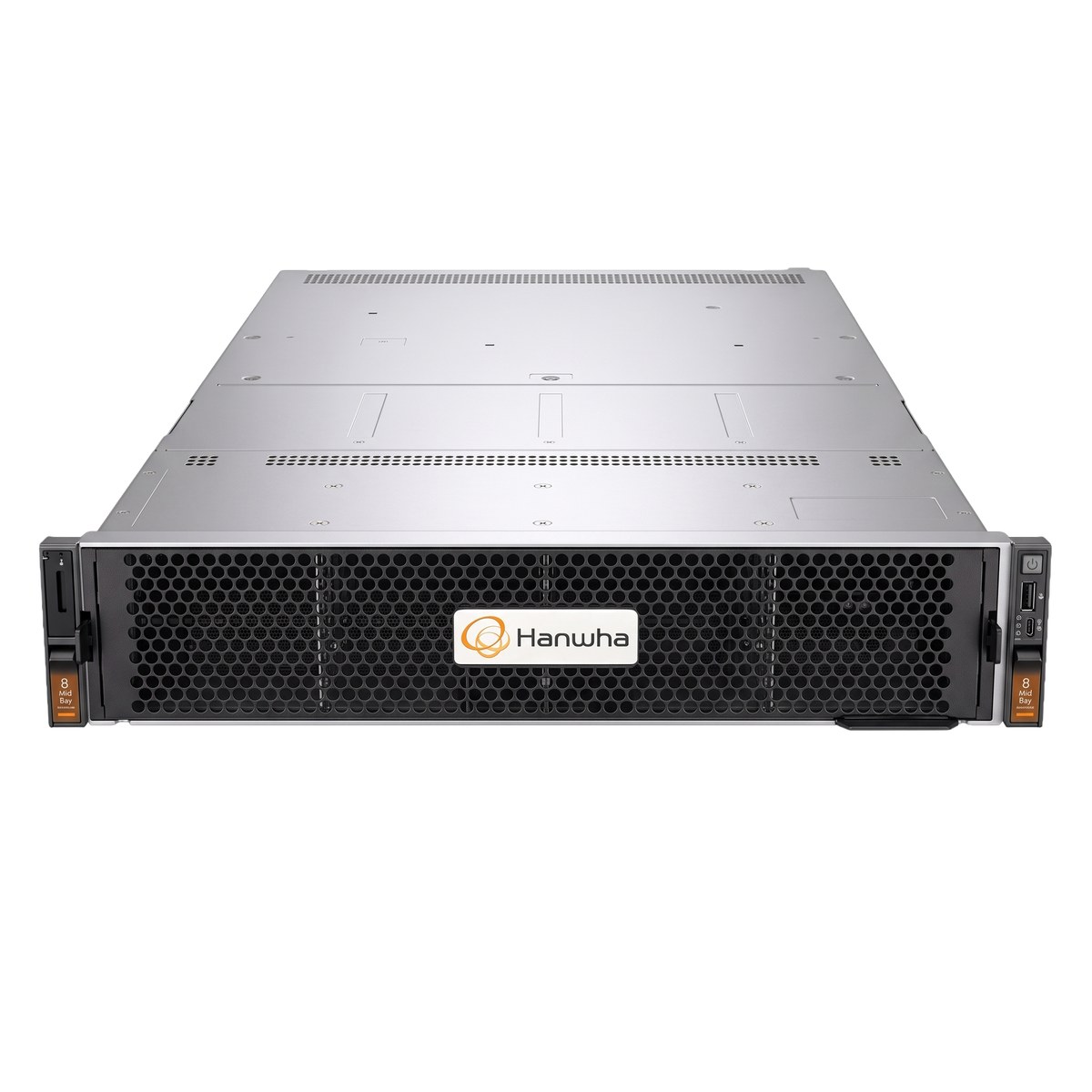

Hanwha WRR-P-S206S2 WAVE Recording Server (Windows Server OS), front view

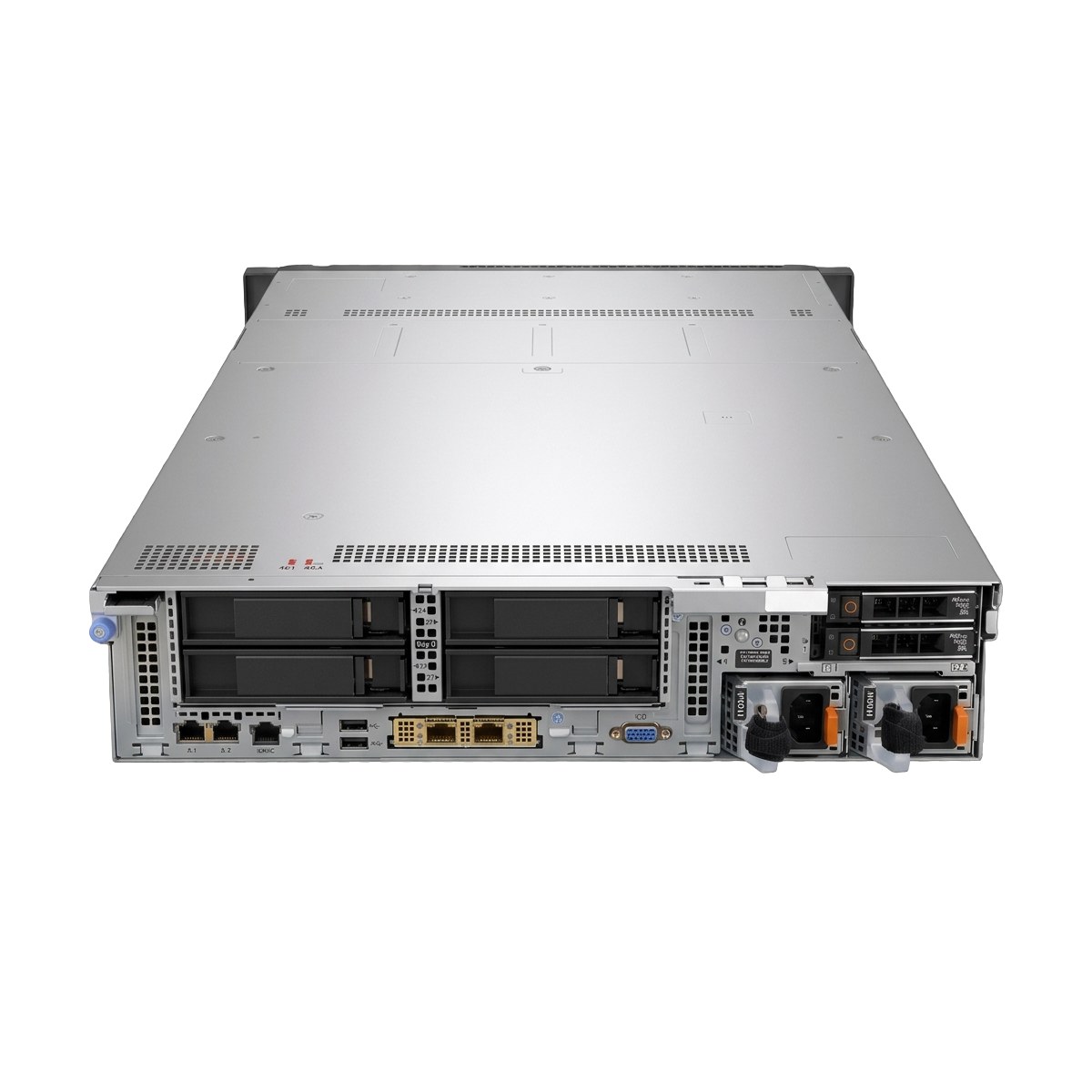

Hanwha WRR-P-S206S2 WAVE Recording Server (Windows Server OS), rear view
Hanwha WRR-P-S206S2 WAVE Recording Server (Windows Server OS), front view
Hanwha WRR-P-S206S2 WAVE Recording Server (Windows Server OS), rear view
,

Hanwha WRR-P-S206S2 WAVE Recording Server (Windows Server OS)

WAVE Recording Server (Windows Server OS) with Wisenet WAVE pre-installed, in 8 capacities from 280 TB to 560 TB raw. Part numbers WRR-P-S206S2-280TB to WRR-P-S206S2-560TB.

Price range: $127,020.00 through $180,370.00 USD

Request a quote

The Hanwha WRR-P-S206S2 is a 2U Wisenet WAVE Network Video Recorder with 4 Professional licenses supplied with Wisenet WAVE VMS pre-installed. It is offered in 8 storage capacities from 280 TB to 560 TB raw; choose a capacity above to see its part number and price.

The WRR-P-S206S2 follows the earlier WRR-P-S206S1, which Hanwha discontinued in October 2026.

Hardware and software

  • Wisenet WAVE pre-installed
  • 1100 Mbps recording B/W
  • 28 HDD Bay (3.5″)
  • Dual Intel Xeon Silver 4514Y
  • 64GB RAM
  • Dual 960GB SSD OS drives (RAID 1)
  • Windows Server 2022 Standard
  • Support RAID 0/1/5/6 + 8GB NV cache
  • Nvidia A400 GPU
  • MiniDP output
  • VGA output
  • Dual 1GbE RJ45
  • Dual 10/25GbE SFP28
  • IPMI
  • Redundant 1400W power supplies
  • Keyboard and mouse included
  • Rail kit included

Part numbers and capacities

Part number Raw storage Usable storage
WRR-P-S206S2-280TB 280 TB 218 TB (RAID 6)
WRR-P-S206S2-320TB 320 TB 254 TB (RAID 6)
WRR-P-S206S2-360TB 360 TB 291 TB (RAID 6)
WRR-P-S206S2-400TB 400 TB 327 TB (RAID 6)
WRR-P-S206S2-440TB 440 TB 364 TB (RAID 6)
WRR-P-S206S2-480TB 480 TB 400 TB (RAID 6)
WRR-P-S206S2-520TB 520 TB 437 TB (RAID 6)
WRR-P-S206S2-560TB 560 TB 473 TB (RAID 6)
