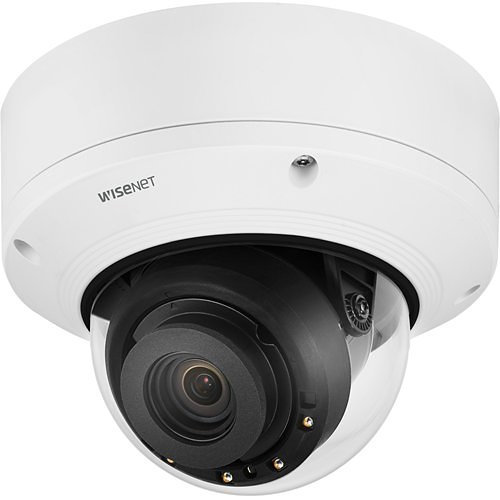

Hanwha XND-8081REV 5MP Indoor Dome, PoE extender camera
,

Hanwha XND-8081REV 5MP Indoor Dome, PoE extender camera

5MP Indoor Dome, PoE extender camera

$1,700.00 USD

Request a quote

Wisenet X powered by Wisenet 5 network IR indoor dome camera with PoE Extender, PoE+ in PoE out, 5MP @30fps, Motorized Varifocal Lens (3.9mm ~9.4mm), triple codec H.265/H.264/MJPEG with WiseStream II technology,WDR 120dB, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, hallway view, HLC, defog detection, DIS(Gyro), PoE/PoE+ , IP52, IK10, -25°C ~ +60°C (-13°F ~ +140°F)

Product notes: PoE+ Required.

Available as Hanwha Vision part number XND-8081REV.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/1.8"
Imaging Device — Type CMOS
Resolution 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×640, 640×360, 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.07
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.007
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 3.9~9.4
Zoom Ratio — Optical 2.4x
Max Aperture Ratio (F number) — Wide 1.3
Angular Field of View — Horizontal 92.1°~38.7°
Angular Field of View — Vertical 67.2°~29.0°
Angular Field of View — Diagonal 119.9°~48.6°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris(IR corrected)

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt -45°~85°
Pan / Tilt / Rotate Range — Rotate 0°~355°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape Rectangular zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED
Light Viewable Length — IR 50m(164.04ft)
IR Wavelength 850nm

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
Business Intelligence — Normal People counting, Queue management, Heatmap

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication HTTPS
Access Control IP-based access control
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)

General

Specification Value
Memory — RAM 1GB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 2slot(Total 512GB)

Environmental & Electrical

Specification Value
Operating Condition — Temperature -25°C~+60°C(-13°F~+140°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption — PoE Max 25.5 W (Main CAM + Extension CAM)
Typical 10.2W (Main CAM)

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions Ø160x125mm(6.30×4.92")
Product Weight 1.45kg(3.20 lb)

Certifications & Standards

Specification Value
Environment IEC 60529 IP52, IEC 62262 IK10

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 49.4m(162.07ft)
Detect (25PPM/ 8PPF) — Tele 146m(479.00ft)
Observe (63PPM/ 19PPF) — Wide 19.7m(64.63ft)
Observe (63PPM/ 19PPF) — Tele 58m(190.29ft)
Recognize (125PPM/ 38PPF) — Wide 9.9m(32.48ft)
Recognize (125PPM/ 38PPF) — Tele 29m(95.14ft)
Identify (250PPM/ 76PPF) — Wide 4.9m(16.08ft)
Identify (250PPM/ 76PPF) — Tele 15m(49.21ft)

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: XND-8081REV Categories: , Brand:
