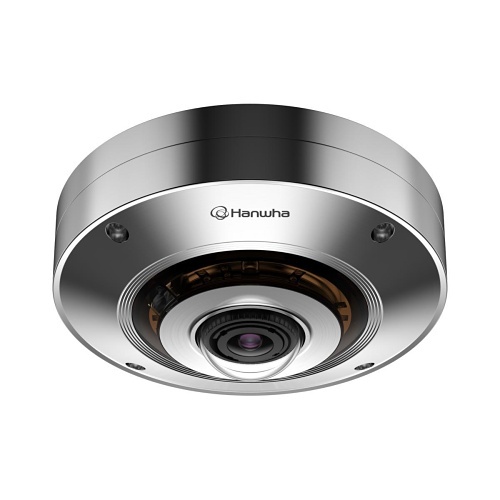

Hanwha XNF-9010RS 12MP Stainless Steel IR Fisheye Camera
,

Hanwha XNF-9010RS 12MP Stainless Steel IR Fisheye Camera

12MP Stainless Steel IR Fisheye Camera

$2,270.00 USD

Request a quote

Stainless steel Fisheye, powered by WN7, 1/2.3″ 12MP CMOS, Max resolution 3008×3008 @ 30FPS, 1.08mm fixed focal lends, Stereo graphic type lens, enhanced resolution for the peripheral regions, H.265, H.264, MJPEG codec supported, Fisheye, Single panorama, Double panorama, Quad view, On board dewarping, Digital PTZ, extreme WDR (120dB), WiseStreamâ…¡ support, Wise IR, IR viewable length 26.2′ (8m), Virtual channel support, selectable I/O port, Video Analytics, Heatmap, People counting, Queue management, Nylon dome, Handover, IP66/IP67/IP6K9K/IK10/NEMA4X, PoE, 12VDC. OnCloud Compatible.

Product notes: Special Order / Please Contact HVA Sales to confirm Lead Time.

Available as Hanwha Vision part number XNF-9010RS.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.3"
Imaging Device — Type CMOS
Resolution 3840×2160, 3584×2688, 3584×1792, 3584×896, 3008×3008, 1920×960, 1920×480, 1792×1344, 1792×896, 1504×1504, 1080×1080, 1024×768, 960×960, 800×600, 768×768, 720×720, 704×576, 640×640, 640×480, 640×320, 640×160, 480×480
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps(@9MP Max. 5fps)
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.39
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.039
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 1.08
Max Aperture Ratio (F number) — Wide 2.2
Angular Field of View — Horizontal 187°
Angular Field of View — Vertical 187°
Angular Field of View — Diagonal 187°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRâ…¤
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape 4point Quadrangle zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Off, Max gain, Manual
White Balance ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC Support(Fill/stretch mode)
Electronic Shutter — Mode Minimum, Maximum, Anti flicker, Prefer shutter control
Electronic Shutter — Speed Range 2~1/12,000sec
Digital PTZ Support
Video Rotation Flip, Mirror
Alarm Interface — In/Out 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In Selectable(mic in/line in), Built-in mic
Audio Out Line out
Light Type IR LED
Light Viewable Length — IR WiseIR 8m(26.25ft)
IR Wavelength 850nm

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
Business Intelligence — Normal People counting, Queue management, Heatmap

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamâ…¡
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Support

Security

Specification Value
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)

General

Specification Value
Memory — RAM 4GB
Memory — Flash 512MB
Edge Storage — Micro SD/SDHC/SDXC Max. 512GB x 2slot(Total 1TB)

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+50°C(-40°F~+122°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption — PoE Max 12.95W, typical 11W
Power Consumption — 12VDC Max 11W, typical 9.1W

Mechanical

Specification Value
Color Silver
Material Stainless(STS316L), Nylon dome
Product Dimensions ø167.9×72.1mm(6.61×2.84")
Product Weight 2,980g(6.57lb)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X, NSF/ANSI Standard 169

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 34.9m(114.49ft)
Observe (63PPM/ 19PPF) — Wide 13.9m(45.60ft)
Recognize (125PPM/ 38PPF) — Wide 7.0m(22.96ft)
Identify (250PPM/ 76PPF) — Wide 3.5m(11.48ft)

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
