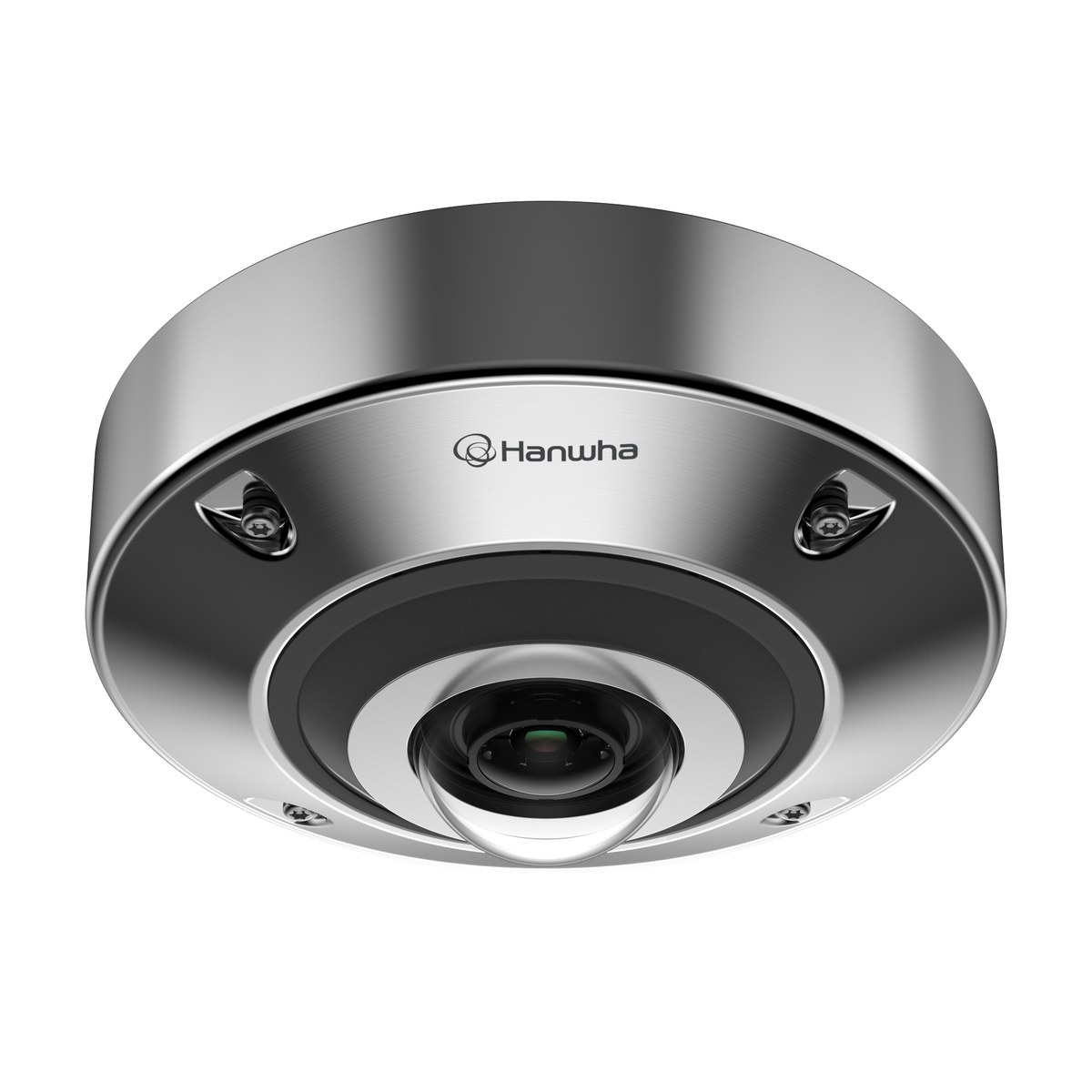

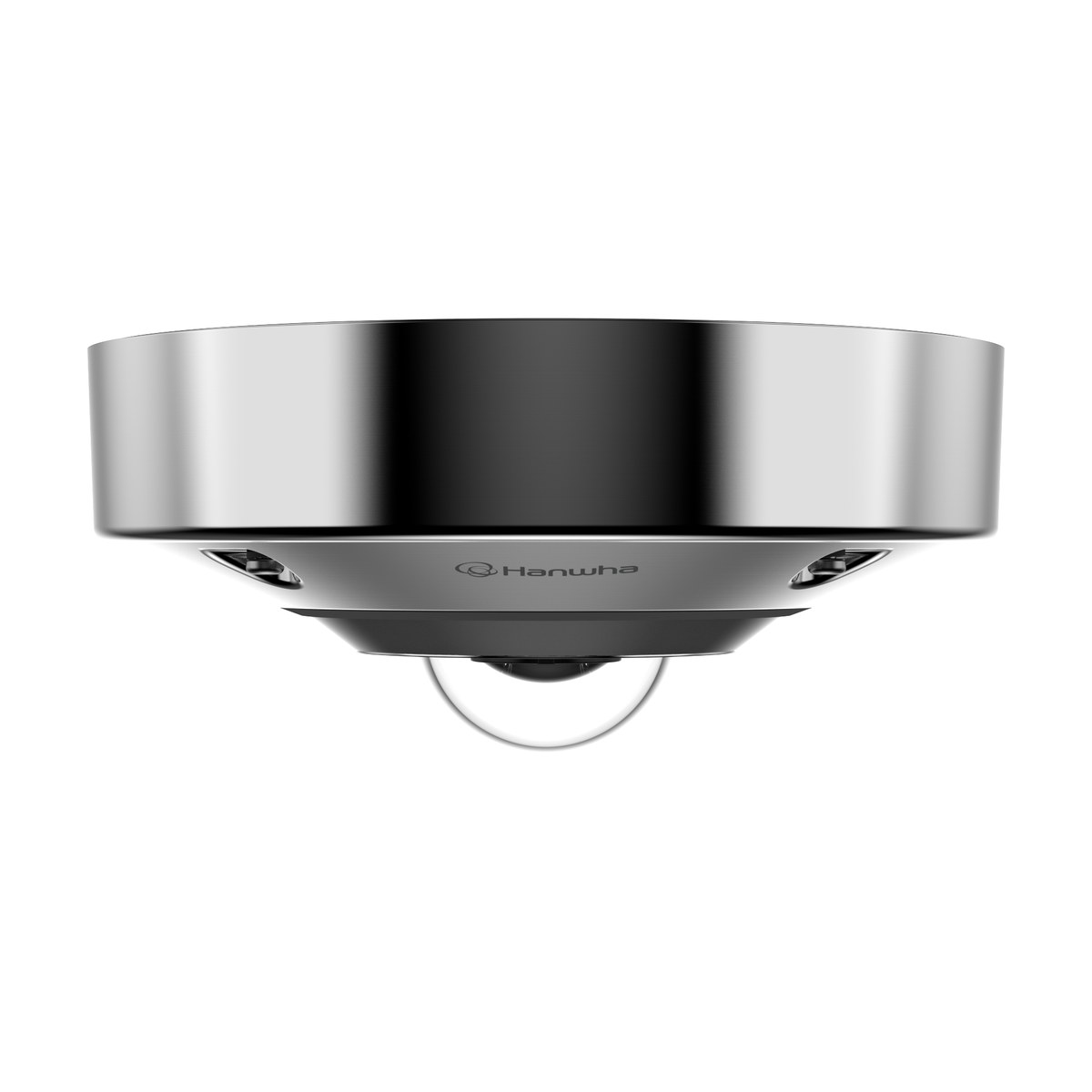

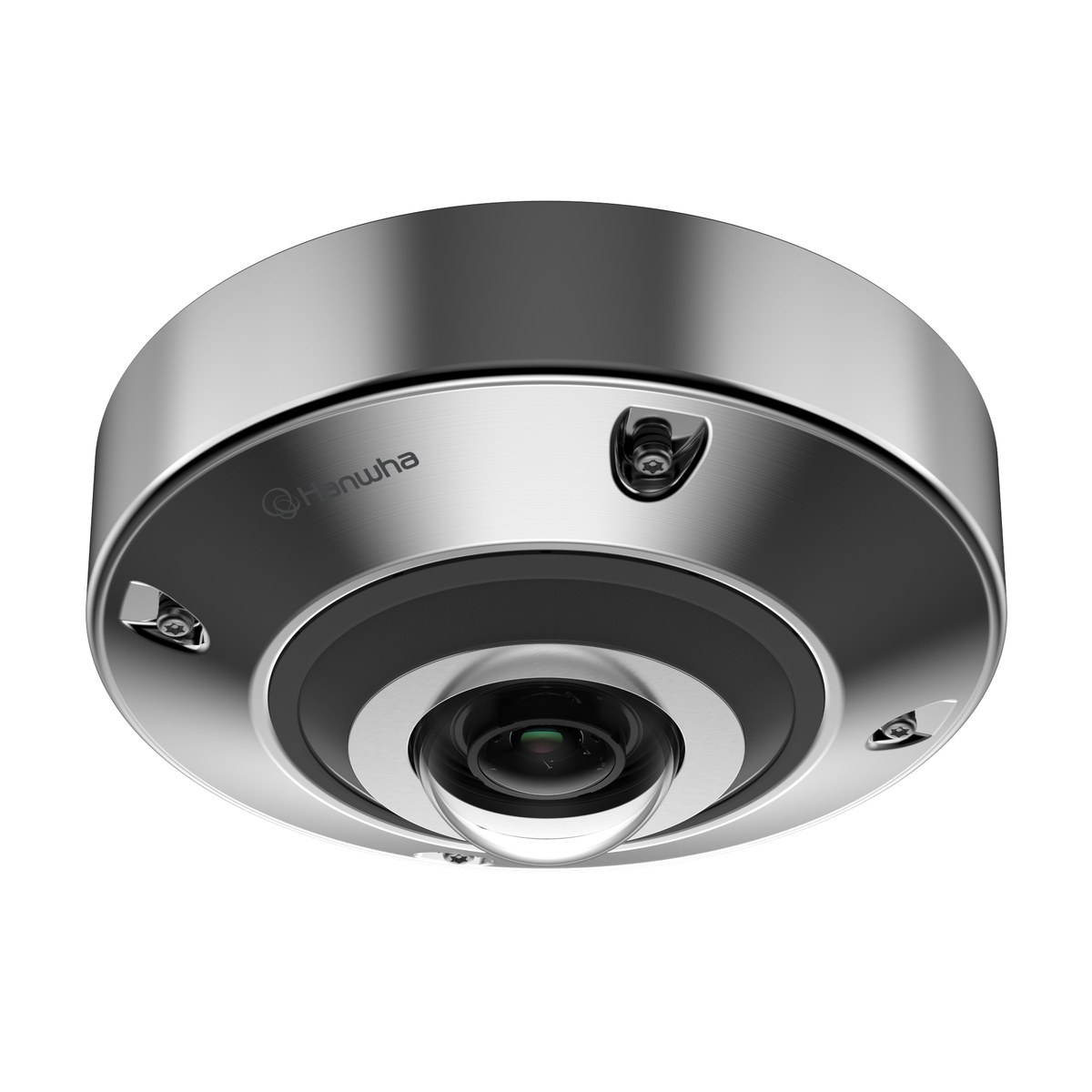

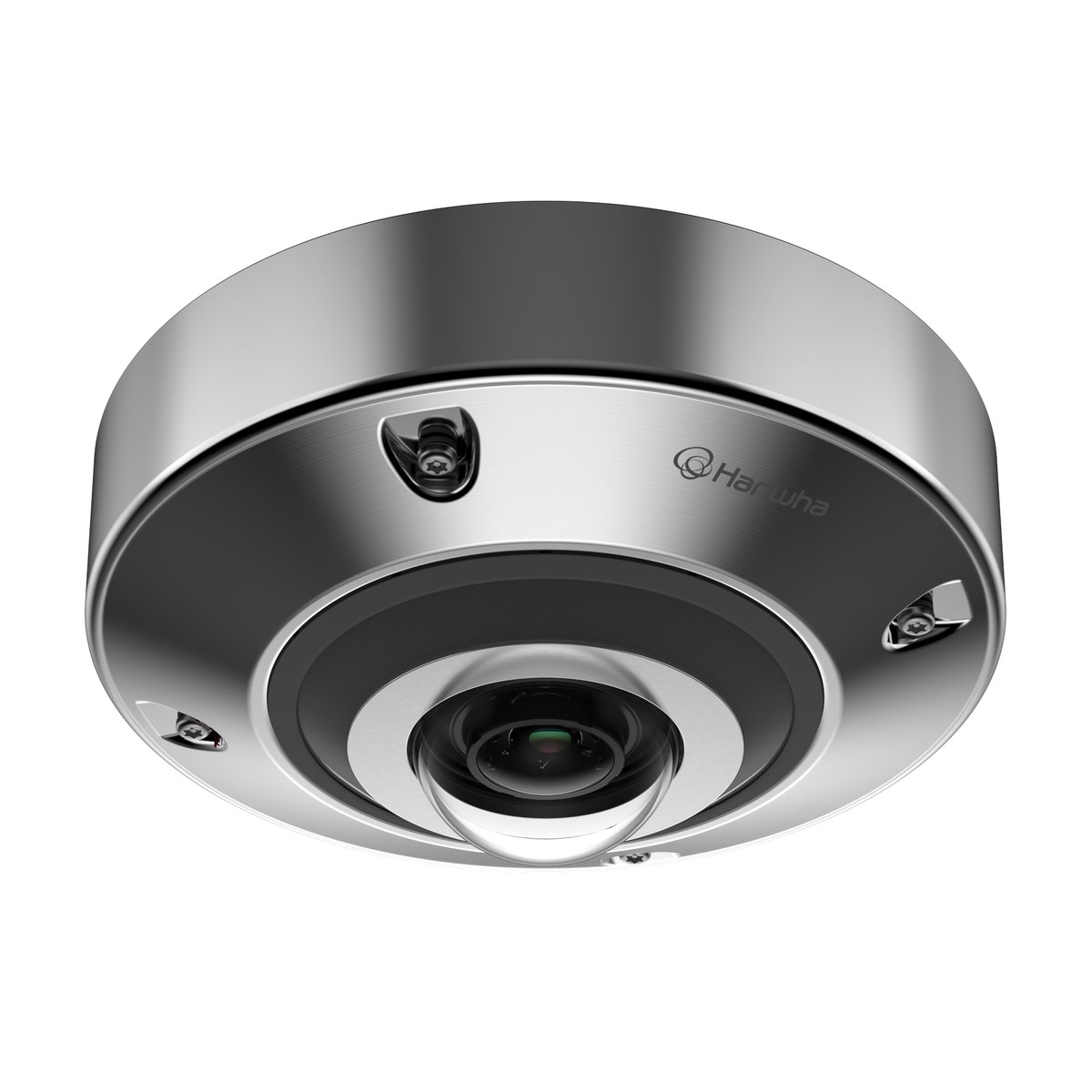

Hanwha XNF-A9014RS 12MP Stainless Steel IR Fisheye AI Camera
12 MP stainless steel IR fisheye AI camera on the Wisenet 9 platform: 3536 x 3536 at 30 fps, 1.76 mm lens (185°), IR to 15 m. Part number XNF-A9014RS.
$2,670.00 USD
Hanwha XNF-A9014RS (part number XNF-A9014RS) is a 12 MP stainless steel IR fisheye AI camera on the Wisenet 9 (WN9) platform. It records up to 3536 x 3536 at 30 fps through a 1.76 mm stereographic lens with a 185° horizontal and vertical field of view, and its built-in IR illumination reaches 15 m (49.2 ft).
On-board AI analytics classify people and vehicles and support line crossing, area events and audio detection, with people, vehicle and crowd counting, queue management and heatmaps. The camera also provides extremeWDR (120 dB), digital rotation, a microSD slot for up to 1 TB and a secure element certified to FIPS 140-3 Level 3. The stainless steel housing with nylon dome cover is rated IP66/IP67/IP68/IP6K9K, IK11 and NEMA 4X, and operates from -40 °C to +50 °C on PoE or -40 °C to +45 °C on PoE+. Power is PoE, PoE+ or 12 V DC.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.6" |
| Imaging Device — Type | CMOS |
| Resolution | 3584×2688, 3584×1792, 3584×896, 3536×3536, 3008×3008, 2560×2560, 2560×1920, 2560×1280, 2560×640, 1920×960, 1920×480, 1792×1344, 1600×1600, 1280×1280, 1280×960, 1280×640, 1280×320, 1024×768, 1024×512, 1024×256, 800×800, 800×600, 640×640, 640×480, 640×320, 640×160, 480×480, 320×240, 160×160 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 5fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.02 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.001 |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 1.76 |
| Max Aperture Ratio (F number) — Wide | 1.8 |
| Max Aperture Ratio (F number) — Tele | 1.8 |
| Angular Field of View — Horizontal | 185° |
| Angular Field of View — Vertical | 185° |
| Angular Field of View — Diagonal | 185° |
| Min. Object Distance | 0.5m(1.64ft) |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Rotate | Digital rotation |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 8point Polygonal zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter — Speed Range | 2~1/30,000sec |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror |
| Alarm Interface — In/Out | 2 configurable I/O ports |
| Alarm Interface — Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | WiseIR 20m(65.61ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Vehicle |
| Attributes — Person | Upper/Lower clothes color |
| Attributes — Vehicle | Color |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events — Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence — Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 5 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec) |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
General
| Specification | Value |
|---|---|
| SoC — Type | Wisenet 9 |
| SoC — Dual NPU | Support |
| Memory — RAM | 4GB |
| Memory — Flash | 8GB eMMC |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) — Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | PoE: -40°C~+50°C(-40°F~+122°F) / PoE+: -40°C~+45°C(-40°F~+113°F) |
| Operating Condition — Humidity | 0~100% RH(condensing) |
| Operating Condition — Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent, In PoE+ mode, IR illuminator will turn off if the temperature is higher than 40°C |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | PoE: Max. 11.2W, typical 7.7W for 20m IR LED distance, PoE+: Max. 19.8W, typical 10.5W for 20m IR LED distance |
| Power Consumption — 12VDC | PoE: Max 11.3W, typical 7.9W, PoE+: Max 20.0W, typical 10.9W |
| WisePower | Power mode, Power monitoring |
| Power Redundance Failover | Support |
Mechanical
| Specification | Value |
|---|---|
| Color | Silver |
| Material | Stainless(STS316L), Nylon dome |
| Material Management — Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| Product Dimensions | ø180×80.5mm(ø7.08×3.17") |
| Product Weight | 2,110g(4.65lb) |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 60529 IP68, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, NSF/ANSI Standard 169, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) — Wide | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) — Wide | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) — Wide | 3.5m(11.48ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 20260615 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
