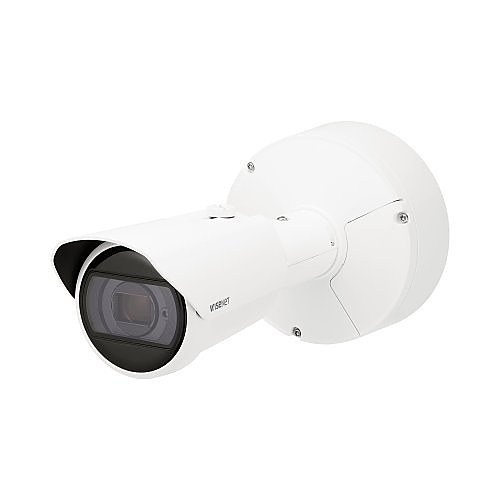

Powered by WN7, Outdoor Network AI IR 12x Zoom Bullet Camera, 2MP @ 120 FPS, 5.2~62.4mm(12x) (54.58°~5.30°) zoom lens, Triple codec (H.265/H.264/MJPEG), IR viewable length 90m (295.28ft), USB port for easy installation, Day & Night (ICR), extremeWDR (150dB), DIS with built-in Gyro sensor, Handover, Hard-coated window, Analytics events based on AI engine: Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear, FIPS 140-2 certified, P66, IP67, NEMA4X, IK10, Power: PoE/12VDC, Metal shielded RJ-45. OnCloud Compatible.
Available as Hanwha Vision part number XNO-6123R.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 120fps/100fps(60Hz/50Hz)(WDR off) / 60fps/50fps(60Hz/50Hz)(WDR on) |
| Max. Framerate — MJPEG | 30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.03 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.003 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 5.2~62.4 |
| Zoom Ratio — Optical | 12x |
| Zoom Ratio — Digital | 32x |
| Max Aperture Ratio (F number) — Wide | 1.6 |
| Max Aperture Ratio (F number) — Tele | 3.0 |
| Angular Field of View — Horizontal | 55°~5° |
| Angular Field of View — Vertical | 33°~3° |
| Angular Field of View — Diagonal | 62°~6° |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 0°~360° |
| Pan / Tilt / Rotate Range — Tilt | 0°~90° |
| Pan / Tilt / Rotate Range — Rotate | 0°~360° |
| Sequence | Preset(300ea) |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | WiseNRâ…¡(Based on AI engine), SSNRâ…¤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | 2 configurable I/O ports |
| Alarm Interface — Others | 12VDC output |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | WiseIR 90m(295.28ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes — Vehicle | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | DetectionShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Analytics Events — Normal | Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamâ…¢ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Specification | Value |
|---|---|
| Memory — RAM | 2GB |
| Memory — Flash | 512MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) — Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition — Humidity | 0~100% RH(condensing) |
| Operating Condition — Others | Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | Max 19.5W, typical 15.5W |
| Power Consumption — 12VDC | Max 16.5W, typical 13.1W |
| Power Redundance Failover | Support |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum, Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions | ø93.4×298.4mm(3.68×11.75") |
| Product Weight | 2,300g(5.07lb) |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 73.8m(242.01ft) |
| Detect (25PPM/ 8PPF) — Tele | 879.5m(2885.51ft) |
| Observe (63PPM/ 19PPF) — Wide | 29.5m(96.81ft) |
| Observe (63PPM/ 19PPF) — Tele | 351.8m(1154.21ft) |
| Recognize (125PPM/ 38PPF) — Wide | 14.8m(48.40ft) |
| Recognize (125PPM/ 38PPF) — Tele | 175.9m(577.10ft) |
| Identify (250PPM/ 76PPF) — Wide | 7.4m(24.20ft) |
| Identify (250PPM/ 76PPF) — Tele | 88.0m(288.55ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
