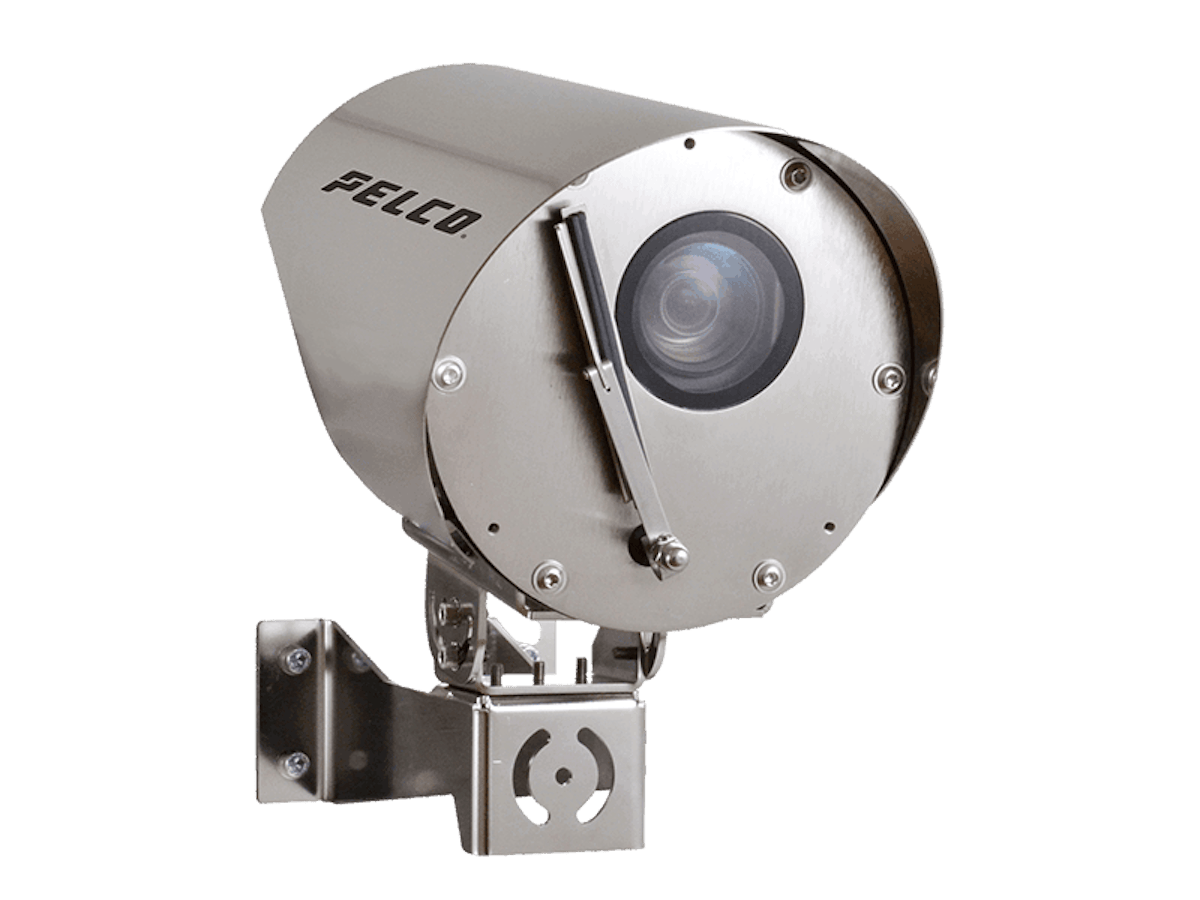

Pelco Esprit Anti-Corrosion Fixed Camera 2MP 40X Stainless Steel
Stainless-steel anti-corrosion fixed camera, 2MP / 40X zoom, IP66-69 + NEMA 4X/6P, Lloyd’s marine approved, with integrated wiper. Built for marine, port, and roadway sites.
$3,880.02 USD
The Pelco Esprit Anti-Corrosion Fixed is a stainless steel fixed camera engineered for exceptional corrosion resistance in offshore and onshore marine environments, ports, and roadways. The ESSE1-2X40-SBT-PAW delivers 2MP Full HD 1080p at up to 60 fps with a 40X optical zoom (4.25–170 mm autofocus lens), 120 dB wide dynamic range, and low-light compensation for clear detail in strongly contrasting light. Built from AISI 316L stainless steel with IP66/67/68/69 ingress protection, NEMA Type 4X/6P ratings, and Lloyd’s Register Marine Type Approval, it stands up to wet, salty, and treacherous conditions from −40°C to +65°C. This SBT-PAW configuration ships with an extra-clear glass window, an integrated wiper, and two digital outputs, and powers via 24VAC, 24VDC, or PoE+.
- AISI 316L stainless steel construction for maximum corrosion resistance (marine, ports, roadways)
- 2MP Full HD 1080p at up to 60 fps with 40X optical zoom (4.25–170 mm autofocus)
- 120 dB wide dynamic range, low-light compensation, and adjustable digital defog
- IP66/67/68/69 + NEMA Type 4X/6P; Lloyd’s Register Marine Type Approval; railway EN50121-4 compliant
- SBT-PAW configuration: extra-clear glass window, integrated wiper, and two digital outputs
- ONVIF Profile G/M/S/T, Pelco Smart Analytics, 128 GB onboard storage; 24VAC / 24VDC / PoE+ power
Technical specifications
Family specifications from the official Pelco datasheet. Manufacturer part number ESSE1-2X40-SBT-PAW; some values vary by model variant — see the datasheet or ask us to confirm your exact configuration.
Lens
| Specification | Value |
|---|---|
| Horizontal | 66.35° – 1.9° |
| Vertical | 39.99° – 1.11° |
| Zoom | Up to 40x |
Image Control
| Specification | Value |
|---|---|
| Video Compression | H.264 and H.265 Pelco Smart Compression, Motion JPEG |
| Streaming | Multi-stream H.264, Multi-stream H.265, Motion JPEG |
| Electronic Shutter Control | Automatic, Manual (1/1 to 1/10,000 sec) |
| Iris Control | Automatic, Open, Closed |
| Day/Night Control | Automatic, Manual |
| Flicker Control | 60 Hz, 50 Hz |
| White Balance | Automatic, Manual |
| Privacy Zones | 3D, up to 64 zones |
| Presets | 500 named presets |
| Tours | No |
| Electronic Image Stabilization | Yes |
Network
| Specification | Value |
|---|---|
| Cabling Type | CAT5e/CAT6 shielded (STP) Ethernet cable is required to fully comply with EMC regulatory standards |
| Connector | RJ-45 |
| ONVIF | ONVIF compliance Profile G, Profile M, Profile S, and Profile T (www.onvif.org) |
| Security | Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS |
| Device Management Protocols | SNMP v2c, SNMP v3 |
| Audio Input/Output | None |
| External I/O Terminals | 2 Digital Output (optional) |
| Onboard Storage | Pre-installed 128 GBytes storage |
Mechanical
| Specification | Value |
|---|---|
| included) | 5.1 kg; 11.2 lb |
| Extra Clear Glass Window | 3 mm thick (0.12") |
| Polycarbonate Window (optional) | 3 mm thick (0.12") |
Electrical
| Specification | Value |
|---|---|
| Power Consumption | 21W |
Power
| Specification | Value |
|---|---|
| External Power | 24 VAC, 1.32A, 50/60 Hz |
| 24 VDC, 0.9A | PoE |
| Power/Signal Connector | 26 AWG to 18 AWG |
| RTC Battery Backup | None |
Environmental
| Specification | Value |
|---|---|
| Operating Temperature | From -40°C (-40°F) up to +65°C (149°F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Humidity | 5% – 95% non-condensing |
| Cold Start | Up to 60 minute startup delay at temperature lower than -10 °C (14 °F) |
Certifications
| Specification | Value |
|---|---|
| Safety | UL 62368-1, CSA 62368-1, IEC/EN 62368-1 |
| Environmental and Performance | UL/CSA/IEC 60950-22, IEC 60529 IP66, IP67, IP68, IP69 Weather Rating,; IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-30, IEC 60068-2-14,; NEMA TS 2 para 2.2.7 – 2.2.9, Type 4X and 6P, MIL-STD-810-H |
| Electromagnetic Emissions | FCC Part 15 Subpart B Class A, IC ICES-003 Class A, EN 55032 Class A, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, EN |
| 50121-4 | Electromagnetic Immunity; EN 55035, EN 50121-4 only for 24 VDC/VAC |
| Warranty | 3-year limited warranty. 5-year extended warranty is available. |
| Railway Applications | Compliance to railway application standard: EN50121-4 (only with 24 VAC or 24 VDC power supply) |
| Lloyd's Register Marine Type Approval | Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 | Environmental: EN60068-2-52, IEC 60068-2-78 |
| OUTLINE DIMENSIONS | ESPRIT AC ENH1 2MPX40 FIXED |
| MM | (ESPRIT ANTI-CORROSION ENHANCED 1 SERIES, 2MP 40X ZOOM, FIXED BULLET, 24V/POE+) |
| Weight | 14.55 lbs |
|---|---|
| Dimensions | 13.78 × 14.17 × 29.25 in |
| Warranty | 3 Years (Extendable to 5 Years) |
