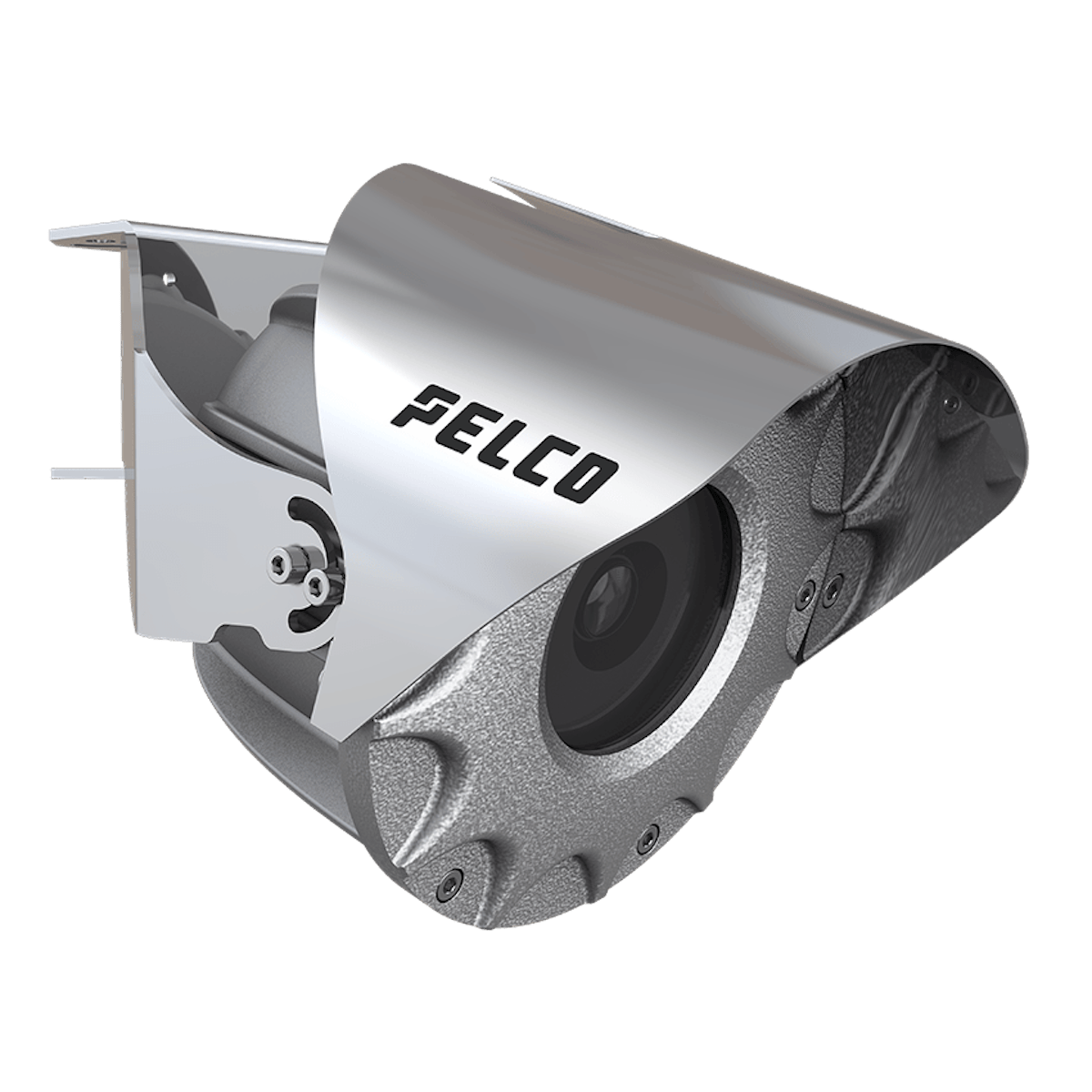

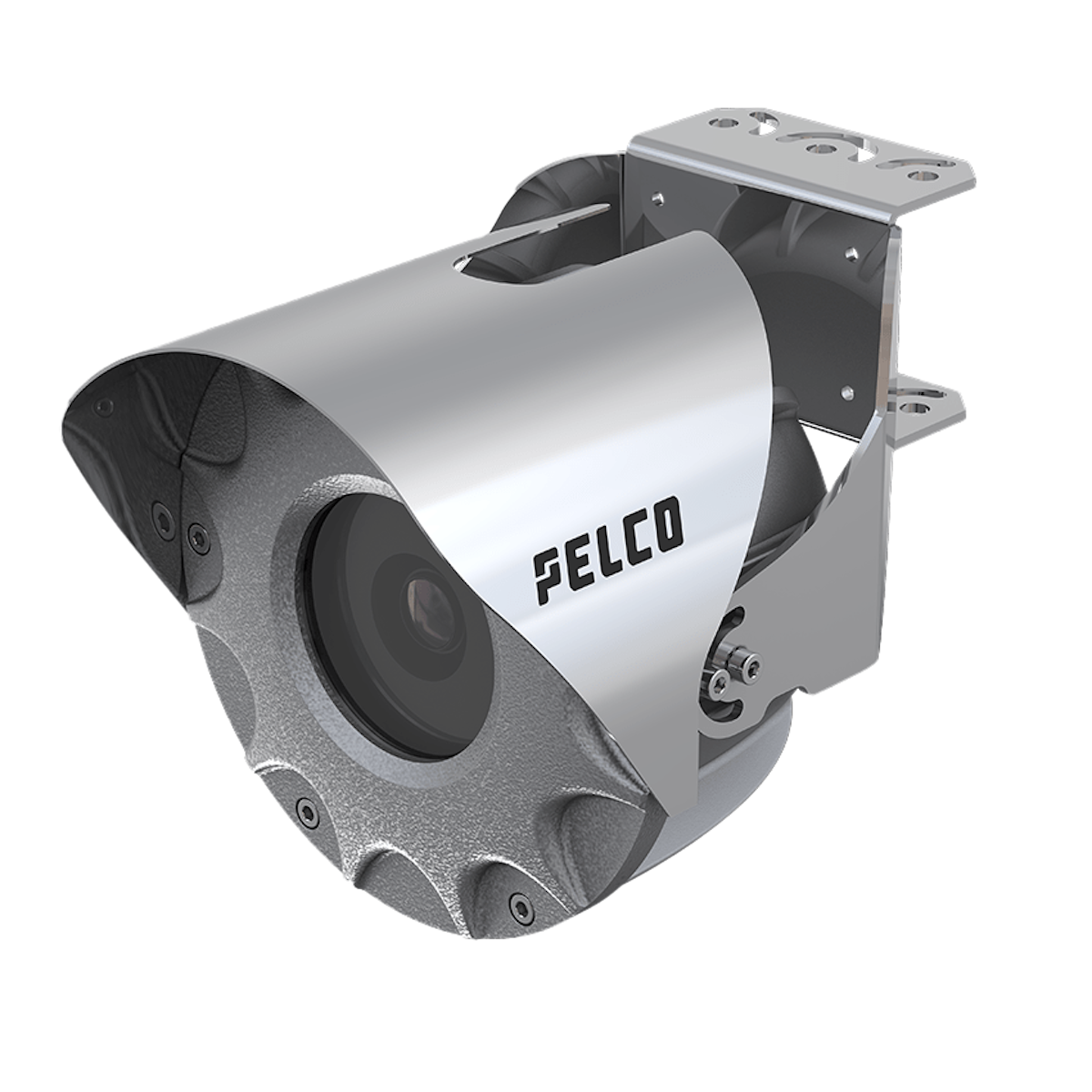

Pelco ExSite Enhanced 2 Explosion-Proof Compact Camera 6MP
ExSite 2 explosion-proof compact, 6MP. Available with no cable, 4m, or 10m armored cable.
Price range: $3,243.45 through $3,973.36 USD
The Pelco ExSite Enhanced 2 Series Compact is a certified explosion-proof and dust-ignition-proof fixed camera built for hazardous areas such as manufacturing lines, loading docks, and processing facilities. The EXC2602-62 delivers 6MP imaging through a 4.9–8mm lens with strong low-light performance, housed in heavy-duty stainless steel rated from −40 to 65°C and suitable for food-safety environments. Armored-cable variants are available — choose the 4m (EXC2602-62-A4) or 10m (EXC2602-62-A0) armored cable, or the base unit with no cable. Power options include 24VAC, 24VDC, and PoE+.
- Explosion-proof and dust-ignition-proof for hazardous locations
- 6MP imaging with 4.9–8mm lens and strong low-light performance
- Heavy-duty stainless steel housing rated −40 to 65°C
- Compact form factor with flexible mounting
- Cable options: none, 4m armored, or 10m armored
- Powered by 24VAC, 24VDC, or PoE+
Note: Pelco explosion-protected cameras are not eligible for advance replacement under warranty.
Technical specifications
Family specifications from the official Pelco datasheet. Manufacturer part number PELCO-EXC2602-62; some values vary by model variant — see the datasheet or ask us to confirm your exact configuration.
Image Performance
| Specification | Value |
|---|---|
| Image Sensor | 1/1.8" progressive scan CMOS |
| Maximum Resolution (H x V) | 3200 (H) × 1800 (V) |
| Aspect Ratio | 16:9 |
| Min Illumination | 0.055 lux (F/1.8) in color mode; 0.028 lux (F/1.8) in monochrome |
| WDR Off | 85 dB |
| WDR On | Up to 120 dB |
| Image Rate | Up to 30 fps |
| Aspect Ratio (Resolution Scaling) | Down to (16:9) 384×216 or (5:4) 320×256 |
| 3D Noise Reduction Filter | Yes |
Lens
| Specification | Value |
|---|---|
| Horizontal | (16:9) 52° – 92° |
| Vertical | (16:9) 29° – 51° |
| Minimum focus distance | 0.5m |
Image Control
| Specification | Value |
|---|---|
| Video Compression | H.264 and H.265 Pelco Smart Compression, Motion JPEG |
| Streaming | Multi-stream H.264, Multi-stream H.265, Motion JPEG |
| Electronic Shutter Control | Automatic, Manual (1/7 to 1/8196 sec) |
| Iris Control | P-Iris, Automatic, Open, Closed |
| Day/Night Control | Mechanical IR cut filter. Automatic, Manual |
| Flicker Control | 60 Hz, 50 Hz |
| White Balance | Automatic, Manual |
| Privacy Zones | Up to 64 zones |
Network
| Specification | Value |
|---|---|
| ONVIF | ONVIF compliance Profile S, Profile G, Profile T and Profile M (www.onvif.org) |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, |
Network
| Specification | Value |
|---|---|
| Device Management Protocols | SNMP v2c, SNMP v3 |
Mechanical
| Specification | Value |
|---|---|
| Dimensions (LxWxH) | Camera and bracket: 254.4 mm x 177 mm x 177.5 mm; 10.0" x 6.97" x 6.99" |
| Weight | Camera and bracket: 6.5 kg; 14.3 Ibs., with 4 m cable: 8.5 kg; 18.7 Ibs., with 10 m cable: 11.5 kg; 25.3 Ibs. |
Construction
| Specification | Value |
|---|---|
| Cable Entry | 1/2" NPT |
| Cable Gland | Ex db and tb 1/2" NPT (with preinstalled cable only) |
| Armored Cable Option | External diameter: 16.8 mm (0.66") ± 0.4 mm (0.016") |
| Color: black RAL 9005 | Composition: 3 × 1.5 mm2 (15 AWG), 4 × 2 × 0.22 mm2 (24 AWG) (cat. 5E F/STP) |
Electrical
| Specification | Value |
|---|---|
| Local Storage | MicroSD/microSDHC/microSDXC slot, up to 2 TB supported – video speed class card required. Class; V10 or better recommended. |
| Ports | 100BASE-TX, RJ45 connector (CAT5E cabling) |
| Power Consumption | 20 W with 24 VDC (0.9 A), 21 W with 24 VAC (1.32A) or with IEEE 802.3 at |
| Input Voltage (Power) | VDC: 24 V ± 10%, VAC: 24 V ± 10%. PoE+: IEEE802.3 at compliant |
Environmental
| Specification | Value |
|---|---|
| Operating Temperature | -40 °C to +65 °C (-40 °F to 149 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Humidity | 10% – 95% non-condensing |
| Cold Start | Up to 1 hour startup delay at temperature lower than -10 °C (14 °F) |
Certifications
| Specification | Value |
|---|---|
| Safety | UL/CSA 62368-1, EN/IEC 62368-1, IS 13252(PART 1):2010/ IEC 60950-1 : 2005 |
| Hazardous | ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31), IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31),; EAC EX (TR CU 012/2011), INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC; 60079-31), UK Ex (EN IEC 60079-0, EN 60079-1, EN 60079-31), KCs (Employment and labor |
| Environmental and Performance | EN/IEC 60529: IP66, IP67, IP68, IP69 |
| EN 60068-2-52: salt spray | UL50E: 4X, 6P |
| Electromagnetic Emissions | FCC Part 15 Subpart B Class A, IC ICES-003 Class A, EN 55032 Class A, EN 61000-6-3 |
Certifications
| Specification | Value |
|---|---|
| Electromagnetic Immunity | EN 50130-4 |
| Vibration Test | EN 50130-5, EN 60068-2-6 |
| Marine Certification | Lloyd's Register Marine Type Approval certification: EN60945. Test Specification Number 1 (ENV1, |
| ENV2, ENV3, ENV5) | Electromagnetic compatibility: EN60945 |
| Warranty | 3-year limited warranty. 5-year extended warranty is available. |
| Temperature | EXC2602-62 |
| DEMKO 17 ATEX 1823X | II 2 G Ex db IIB T6…T5 Gb |
| II 2 D Ex tb IIIC T85°C…T100°C Db | -40°C ≤Ta ≤ |
| +65°C or +70°C | +83.2°C with Ta ≤ |
| +65°C | +88.2°C with Ta ≤ |
| +70°C | IECEx ULD 17.0002X |
| Ex db IIB T6…T5 Gb | Ex tb IIIC T85°C…T100°C Db |
| EAC Ex RU C-IT.H | A91.B.00274/22 |
| 1Ex db IIB T6…T5 Gb X | Ex tb IIIC T85°C…T100°C Db X |
| INMETRO UL-BR 20.0227X | Ex db IIB T6…T5 Gb |
| Ex tb IIIC T85°C…T100°C Db | KCs 20-KA4BO-0312X, 20- |
| KA4BO-0313X | Ex db IIB T6…T5 Gb |
| Ex tb IIIC T85°C…T100°C Db | UKEx UL21UKEX2215X |
| II 2 G Ex db IIB T6…T5 Gb | II 2 D Ex tb IIIC T85°C…T100°C Db; cULUS File E319666 Hazardous |
| Location | Class I, Zone 1, AEx db IIB T6…T5 Gb |
| Zone 21, AEx tb IIIC T85°C…T100°C Db | Class I, Div 2 Group C, D T6…T5 |
| Class II, Div 2, Group F and G T6…T5 | cULUS File E319666 Hazardous |
| Location | Ex db IIB T6…T5 Gb X |
| Ex tb IIIC T85°C…T100°C Db X | Class I, Div 2 Group C, D T6…T5 |
| Class II, Div 2, Group F and G T6…T5 | EXC2602-62-A4 |
| II 2 G Ex db IIB T6…T5 Gb | II 2 D Ex tb IIIC T85°C…T100°C Db |
| -40°C ≤Ta ≤ | +65°C or +70°C |
| +83.2°C with Ta ≤ | +65°C |
| +88.2°C with Ta ≤ | +70°C |
| IECEx ULD 17.0002X | Ex db IIB T6…T5 Gb |
| EAC Ex RU C-IT.H | A91.B.00274/22 |
| 1Ex db IIB T6…T5 Gb X | Ex tb IIIC T85°C…T100°C Db X |
| Temperature | INMETRO UL-BR 20.0227X |
| Ex db IIB T6…T5 Gb | Ex tb IIIC T85°C…T100°C Db |
| UKEx UL21UKEX2215X | II 2 G Ex db IIB T6…T5 Gb |
| II 2 D Ex tb IIIC T85°C…T100°C Db | EXC266200T |
| DEMKO 17 ATEX 1823X | II 2 G Ex db IIB T6…T5 Gb |
| II 2 D Ex tb IIIC T85°C…T100°C Db | -40°C ≤Ta ≤ |
| +65°C or +70°C | +83.2°C with Ta ≤ |
| +65°C +88.2°C with | Ta ≤+70°C |
| IECEx ULD 17.0002X | Ex db IIB T6…T5 Gb |
| Ts mark | Ex db IIB T6…T5 Gb |
| Image Health | Detects incremental changes in the cameras view, such as position shifts or obstructions. Notifies; users through ONVIF conformant events and summarized email reports. |
