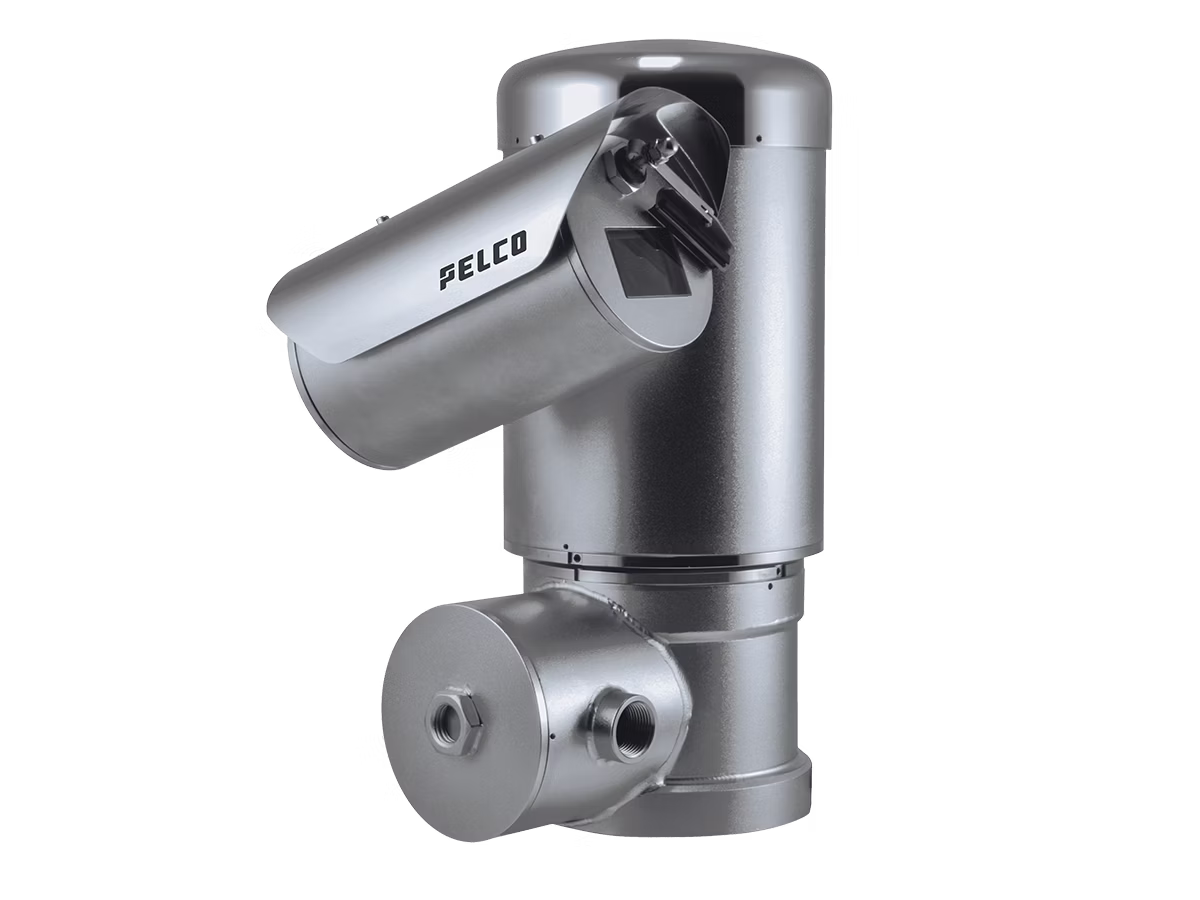

Pelco ExSite Enhanced 2 PTZ Explosion-Proof Camera

Pelco ExSite Enhanced 2 PTZ Explosion-Proof Camera

Pelco ExSite Enhanced 2 PTZ explosion-proof camera — 2MP, 30× zoom, AISI 316L stainless steel, IP66–IP69, –40°C to +60°C, Lloyd’s Marine approved. ATEX/IECEx/UL certified, NDAA compliant. Part numbers: EXP2230-62, EXP2230-65, EXP2230-62-G, EXP2230-65-G.

Price range: $16,434.78 through $22,169.83 USD

Request a quote

Pelco ExSite Enhanced 2 Series PTZ Explosion-Proof Camera

The ExSite Enhanced 2 PTZ delivers 2MP 30× zoom performance in a heavy-duty AISI 316L stainless steel housing rated for the most demanding industrial and marine environments. Electro-polished surfaces resist corrosion in offshore platforms, refineries and chemical plants. With IP66 through IP69 rating, Lloyd’s Register Marine Type Approval and a full suite of hazardous-location certifications, it provides 360° perimeter coverage where standard cameras cannot operate.

  • 2MP 1/2.8" progressive scan CMOS; 30× optical zoom (4.3–129mm, F1.6); HFOV 65.1° wide / 2.3° tele; 60fps
  • AISI 316L stainless steel, micro-shot electro-polished housing; 313 × 232 × 398mm; 26.5 kg
  • IP66/67/68/69, NEMA Type 4X & 6P; –40°C to +60°C; wind resistance 210 km/h
  • True WDR 120dB; 0.05 lux color / 0.005 lux mono; 500 named presets; 10 tours; 360° pan; 100°/s
  • H.264 & H.265 Pelco Smart Compression (up to 70% bandwidth saving); ONVIF Profile G/M/S/T
  • FIPS 140-2 L1 (optional); Pelco Smart Analytics auto-tracking; Lloyd’s Register Marine Type Approval
  • ATEX, IECEx, UL/CSA, UKCA, INMETRO, EAC Ex, KCs, ECAS EX; 3-year warranty (5-year available)

Models & Ordering

Part Number Input Voltage Remote Storage Notes
EXP2230-62 24 VAC Standard
EXP2230-65 120 VAC Standard
EXP2230-62-G 24 VAC With ONVIF G Pre-installed SD card
EXP2230-65-G 120 VAC With ONVIF G Pre-installed SD card

220/230 VAC and TS mark variants available — contact us. Mounting accessories: MPXWBA, MPXWBTA, MPXCOL, MPXCW.

Available in Pelco part numbers EXP2230-67-G, EXP2230-67.

Technical specifications

Family specifications from the official Pelco datasheet. Manufacturer part number PELCO-EXP2230; some values vary by model variant — see the datasheet or ask us to confirm your exact configuration.

Image Performance

Specification Value
Image Sensor 1/2.8" progressive scan CMOS
Active Pixels (H x V) 1945 (H) × 1097 (V)
Imaging Area (H x V) 5.568 mm (H) × 3.132 mm (V); 0.219 ” (H) × 0.123 ” (V)
Min. illumination 0.03 lux (F/1.6) in color mode; 0.02 lux F/1.6) in monochrome
Dynamic Range Up to 120 dB
Image Rate Up to 60 fps
Aspect Ratio (Resolution Scaling) Down to (16:9) 384×216 or (5:4) 320×256
3D Noise Reduction Filter Yes
S/N Ratio More than 50dB

Lens

Specification Value
Horizontal (16:9) 2.34° – 65.1°
Vertical (16:9) 1.36° – 38.4°
Zoom Up to 30x

Image Control

Specification Value
Video Compression H.264 and H.265 Pelco Smart Compression, Motion JPEG
Streaming Multi-stream H.264, Multi-stream H.265, Motion JPEG
Frame Rate 60 fps
Electronic Shutter Control Automatic, Manual (1/1 to 1/30,000 sec)
Iris Control P-Iris, Automatic, Open, Closed
Day/Night Control Mechanical IR cut filter. Automatic, Manual
Flicker Control 60 Hz, 50 Hz
White Balance Automatic, Manual
Smart Compression Technology Yes, lowers bandwidth and storage requirements by up to 70%
On Screen Displays Yes
Privacy Zones 3D, up to 64 zones
Presets 500 named presets
Digital Zoom 12X
Tours 10 named tours
Electronic Image Stabilization Yes

Network

Specification Value
Ports RJ45 connector (CAT5E cabling) and SFP slot
ONVIF ONVIF compliance Profile S, Profile T, Profile G and Profile M (www.onvif.org)
Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP,
Device Management Protocols SNMP v2c, SNMP v3

Mechanical

Specification Value
Dimensions (LxWxH) 313 mm x 232 mm x 398 mm; 12.3" x 9.13" x 15.7"
Weight 26.5 kg; 58.4 lbs

Construction

Specification Value
Pan Movement 360° continuous, max 100°/s
Vertical Tilt -90° to 90°
Maximum Pan/Tilt Speed 100°/s

Wiper

Specification Value
Cable Entry 2 x 3/4" NPT
Pre-set Accuracy 0.2°
Sunshield AISI 316L stainless steel

Electrical

Specification Value
Local Storage Factory installed 128GB, Micro SDXC Card.
Ports 10BASE-T/100BASE-TX, RJ45 connector (CAT5E cabling) and SFP slot
Power Consumption Not moving, Heaters/blower off, no analytics: 40W (the motors are powered even if not moving)
