Bullet Cameras, Explosion-Proof Cameras

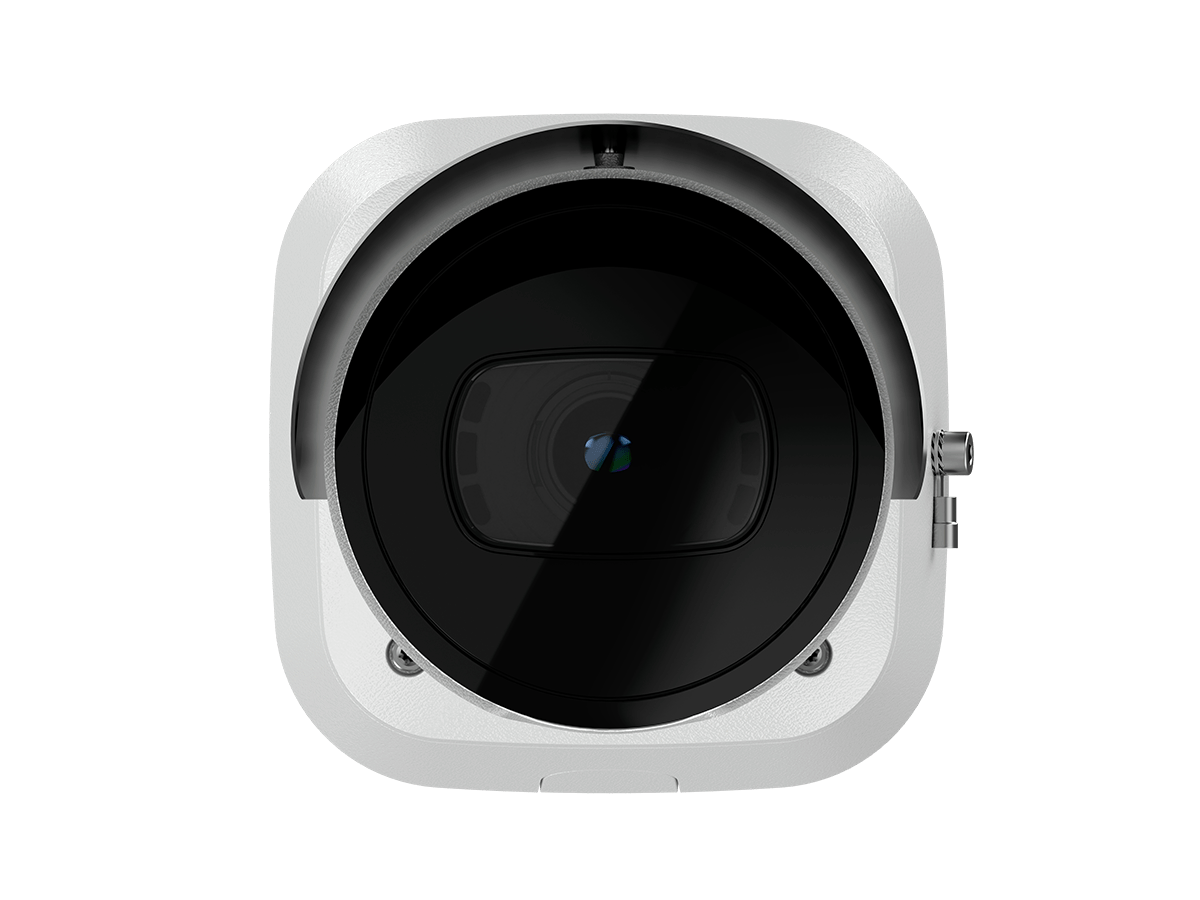

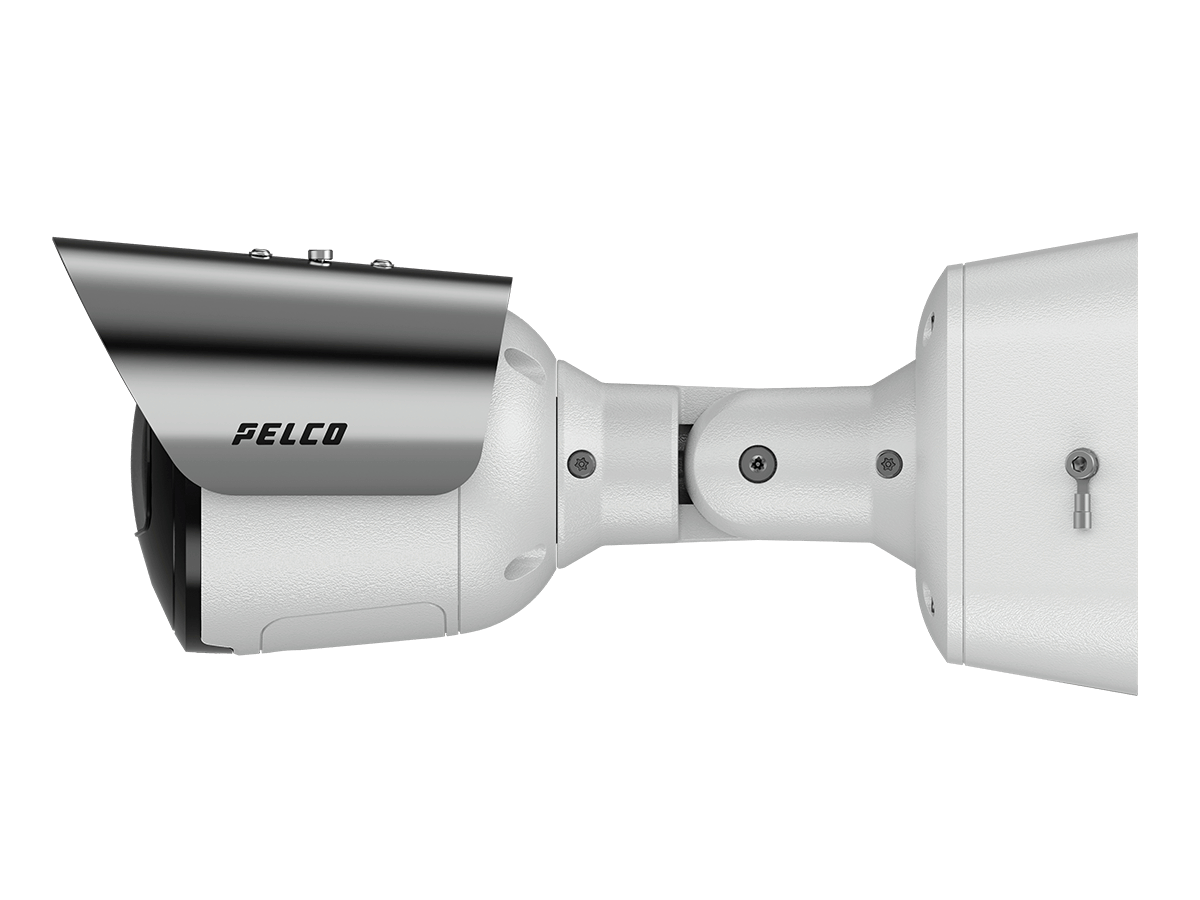

Pelco ExSite Pro 8MP Explosion-Proof IR Bullet Camera
ExSite Pro explosion-proof bullet, 8MP, IR, True WDR, Pelco Smart Analytics.
$3,460.40 USD
The Pelco ExSite Pro Bullet is a cost-effective, analytics-enabled explosion-proof camera for hazardous environments where budget and performance both matter. The EXFP1-8V9-EBT0-IR delivers 8MP resolution through a 4.4–9.3mm varifocal lens with built-in IR for day/night visibility, True WDR, and SureVision imaging for challenging lighting. A surface-mount stainless steel housing withstands corrosive and extreme conditions, while Pelco Smart Analytics add object detection, classification, and crowd monitoring for proactive response.
- 8MP imaging with 4.4–9.3mm varifocal lens and built-in IR
- Explosion-proof and dust-ignition-proof construction
- True WDR and SureVision for difficult lighting
- Pelco Smart Analytics: object detection, classification, crowd monitoring
- Surface-mount stainless steel housing for extreme conditions
- VMS compatibility including Milestone and Genetec
Note: Pelco explosion-protected cameras are not eligible for advance replacement under warranty.
Technical specifications
Family specifications from the official Pelco datasheet. Manufacturer part number EXFP1-8V9-EBT0-IR; some values vary by model variant — see the datasheet or ask us to confirm your exact configuration.
Image Performance
| Specification | Value |
|---|---|
| Primary | (16:9) 3840 x 2160, 3328 x 1872, 3200 x 1800, 3072 x 1728; (4:3) 2880 x 2160, 2560 x 1920 |
| Secondary | (16:9) 3840 x 2160*, 2560 x 1440, 1920 x 1080, 1280 x 720, 768 x 432, 640 x 360, 512 x 288; (4:3) 2880 x 2160*, 2560 x 1920, 2304 x 1728, 1920 x 1440, 1600 x 1200, 1280 x 960, 768 x 576, 640 x; 480, 512 x 384 |
| Tertiary | (16:9) 1920 x 1080 1280 x 720, 768 x 432, 640 x 360, 512 x 288, 384 x 216; (4:3) 1920 x 1440, 1600 x 1200, 1280 x 960, 800 x 600, 640 x 480, 512 x 384, 384 x 288, 368 x 264 |
| Quartenary | (16:9) 1280 x 720, 768 x 432, 640 x 360, 512 x 288; (4:3) 1280 x 960, 640 x 480, 512 x 384, 384 x 288 |
| WDR Off | Up to 83 dB |
| WDR On | (IEC 62676) |
| WDR On | Up to 144 dB (dual exposure, 20 fps or less) |
| Max Image Rate1 | (50 Hz/60 Hz): 25 fps/30 fps |
| Pelco Smart Compression technology; Idle scene mode | Signal-to-Noise Ratio(SNR) |
| > 50 dB | ¹ Max Frame Rate of 15 fps when classified object privacy masking is enabled. |
| Lens and IR Illumination | 4.4 – 9.3 mm |
| IR Illumination Max Distance2 (high | power 850 nm LEDs) |
| 70 m (229 ft), full tele | 30 m (131 ft), full wide |
Illumination
| Specification | Value |
|---|---|
| With IR: 0 lux in monochrome mode | Without IR: 0.006 lux in monochrome mode; 0.02 lux in color mode |
| on Aspect Ratio | (16:9) 47° – 109°; (4:3) 35° – 78° |
| Aspect Ratio | (16:9) 26° – 57°; (4:3) 26° – 57° |
| Max Aperture | F1.3 |
| Remote Zoom and Focus, Autofocus, IR Cut Filter | 2 IR illumination power may be reduced at higher operating temperatures. |
Image Control
| Specification | Value |
|---|---|
| Image Compression Method | H.264, H.265, Motion JPEG, Pelco Smart Compression |
| Streaming | Multi-stream H.264, Multi-stream H.265, Motion JPEG |
Image Control
| Specification | Value |
|---|---|
| Camera Tamper Detection | Yes |
| Electronic Shutter Control | Automatic, Manual (1/7.5 to 1/15000 sec) |
| Iris Control | Automatic, Open, Closed, P-iris |
| Day/Night Control | Automatic, Manual, External |
| Flicker Control | 60 Hz, 50 Hz |
| White Balance | Automatic, Manual |
| Image Rotation | 0°, 90°, 180°, 270° including Corridor Mode |
| Privacy Zones | Up to 64 zones |
Network
| Specification | Value |
|---|---|
| Cabling | CAT5e |
| Connector | RJ-45 |
| ONVIF | ONVIF® compliance Profile S, Profile T, Profile M and Profile G (www.onvif.org) |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, |
| Device Management Protocols | SNMP v2c, SNMP v3 |
| USB Port | USB 2.0 |
| Onboard Storage3 | Two microSD/microSDHC/microSDXC slots – video speed class card required. Class V10 or better |
| recommended. | 3 Tested maximum capacity is 1.5TB. |
| Audio Compression Method | G.711 PCM 8 kHz, Opus |
| External I/O Terminals | 1 x Relay In, 1 x Relay Out, 1 x 12 VDC out at 50 mA |
Mechanical
| Specification | Value |
|---|---|
| Dimensions (LxWxH) | 309 mm x 133 mm x 133 mm; 12.16" x 5.23" x 5.23" |
Camera
| Specification | Value |
|---|---|
| Wall Plate | 0.15 kg; 0.33 lbs |
| Sunshield | AISI 316L stainless steel |
Mechanical
| Specification | Value |
|---|---|
| Finish | Powdercoat grey, pantone 427C |
| Adjustment Range | Hinge +/- 90°, Rotation +/- 175° |
Electrical
| Specification | Value |
|---|---|
| Power Consumption | 25W Max |
| Power Source | PoE |
| IEEE 802.3af Class 3 | PoE+; IEEE 802.3at Class 4 |
| Behavior | PoE |
Power
| Specification | Value |
|---|---|
| External Power | 12-24 VDC +/-10% |
| RTC Backup Battery | 3V manganese lithium |
| Memory | 4GB RAM, 4GB Flash |
| Redundant Power | Seamless failover between PoE and Aux and back without interrupt in camera operation |
Environmental
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +65°C (-40°F to 149°F) |
| Startup Temperature | -40°C to +65°C (-40°F to 149°F) |
| Storage Temperature | -10°C to +70°C (14°F to 158°F) |
| Humidity | 0 – 100% non-condensing |
Certifications
| Specification | Value |
|---|---|
| Safety Standards | UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC 62471 |
| Hazardous | ATEX (EN IEC 60079-0, EN 60079-7, EN 60079-31), IECEx (IEC 60079-0, IEC 60079-7, IEC 60079-31),; UK Ex (EN IEC 60079-0, EN 60079-7, EN 60079-31), UL listed for USA (UL 60079-0, UL 60079-7, UL; 60079-31, UL 121201), UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. |
| Environmental Standards/Ratings | IEC 60529 IP66, IP67, IP68 (1.8m depth for 2 hours), IPX9K, NEMA 4X, IEC 60068-2 Shock & Vibration,; NEMA TS2 Sec 2.2.7-2.2.9, IK10-rated casing |
| Standards | FCC Part 15 Subpart B Class A, ICES-003 Class A, EN 55032 Class B, EN 61000-6-4, EN 61000-3-2, EN |
| 61000-3-3, | EN 50121-4, EN 50130-4 |
| Standards | EN 55035, EN 61000-6-2, EN 50121-4, EN 50130-4 |
| Warranty | Limited 5 Year Warranty1; 1 For more information on the warranty, see Product Warranty Terms. |
| Temperature | EXFP1-8V9-EBT0-IRB |
| ATEX – UL 24 ATEX | 3308X, UL 24 ATEX |
| 3226X | Ex II 3G Ex ec IIC T4 Gc |
| Ex II 2D Ex tb IIIC T135°C Db | -40°C ≤Ta ≤ |
| +65°C | +80°C |
| IECEx ULD 24.0017X | Ex ec IIC T4 Gc |
| Ex tb IIIC T135°C Db | cULus File E319666 |
| America | Class I, Zone 2, AEx ec IIC T4 Gc |
| Zone 21, AEx tb IIIC T135°C Db | Class I Div 2 Group A, B, C, D T4 |
| Class II Div 2 Group F, G T4 | cULus File E319666 |
| Canada | Ex ec IIC T4 Gc X |
| Ex tb IIIC T135°C Db X | Class I Div 2 Group A, B, C, D T4 |
| Class II Div 2 Group F, G T4 | UK EX – UL24UKEX3011X, |
| UL24UKEX3012X | Ex II 3G Ex ec IIC T4 Gc |
| INMETRO – UL-BR | 25.0057X |
| Ex ec IIC T4 Gc | Ex tb IIIC T135°C Db |
| KCs – 25-KA4BO-0192X, | 25-KA4BO-0193X |
| Ex ec IIC T4 Gc | Ex tb IIIC T135°C Db |
| TS mark | Ex ec IIC T4 Gc |
| Image Health | Detects incremental changes in the cameras view, such as position shifts or obstructions. Notifies users through; ONVIF conformant events and summarized email reports. |
| VideoXpert Supported Features | 3.22 |
| Support for video analytic events without vehicle sub-classes. | 3.23 or higher |
