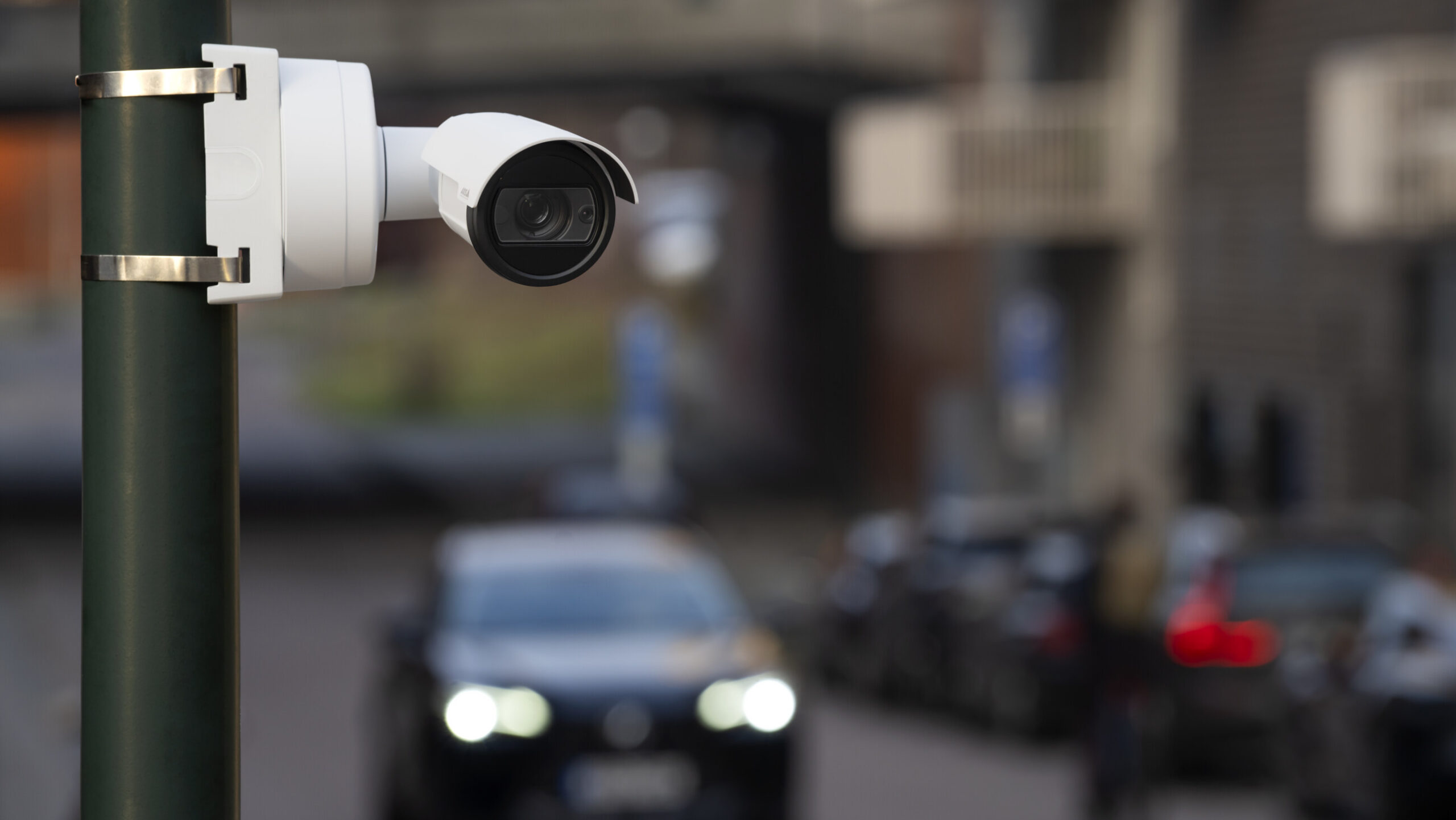

1/1.8” Global Shutter CMOS image sensor, tele outdoor fixed bullet camera, NEMA 4X, IP66, IP67 and IK10-rated, 3 MP resolution, day/night, with Deep Learning Processing Unit (DLPU). ARTPEC-9 SoC. Forensic WDR and Lightfinder 2.0, OptimizedIR, a power-efficient 850nm IR LED technology. Varifocal IR corrected 10-40 mm tele lens, 42°-11° HFOV with remote zoom, focus and corridor format. Multiple, individually configurable H.264/H.265/AV1 with Zipstream and Motion JPEG. 3 MP stream up to 50/60 fps, 720p up to 200 fps and 1024×768 up to 270 fps. Sync output signal for external strobe lights. AXIS Object Analytics, AXIS Image Health Analytics and AXIS Scene Metadata. AXIS Edge Vault with FIPS 140-3 Level 3 for added cyber security. Barrel distortion correction, defogging, electronic image stabilization, shock detection and scene profiles. MQTT Support. Audio in jack, audio out with speaker pai
Product Number: 03384-001.
Technical specifications
Key specifications: video resolution up to 2048×1536; 4x optical zoom; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 60 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 03384-001.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/1.8" |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | 0.02 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 2048×1536 |
| Max frames per second | 270 |
| Electronic image stabilization | Yes |
Lens
| Specification | Value |
|---|---|
| Focal length | 10-40 mm |
| Optical zoom | 4 |
| Horizontal field of view | 42-11 ° |
| Vertical field of view | 30-6 ° |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
Network
| Specification | Value |
|---|---|
| PoE Class | 3 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -40 to 60 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66, IP67 |
| Designed for repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
Power
| Specification | Value |
|---|---|
| Power (max) | – |
| Power (average) | – |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
