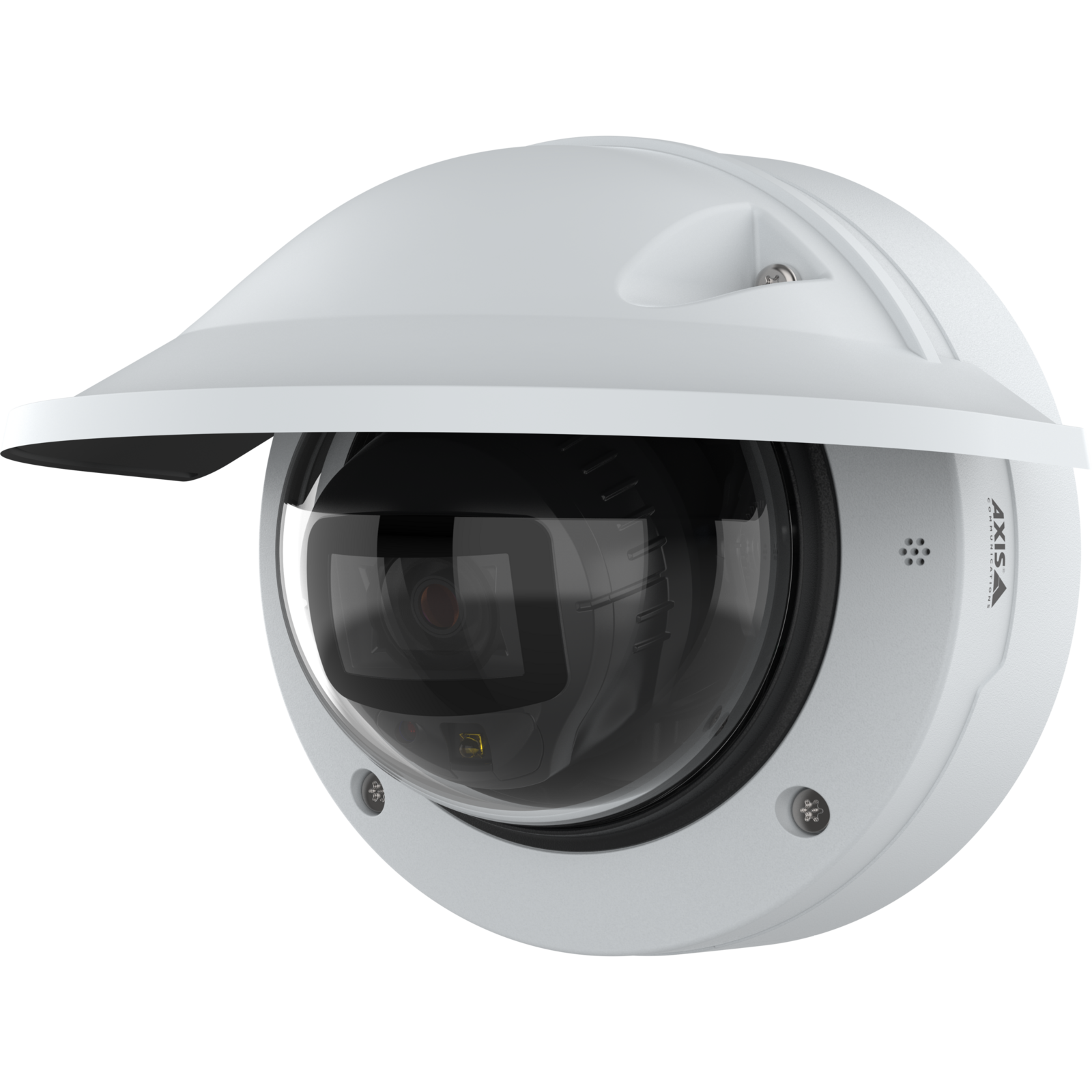

Discreet outdoor, HDTV / 1080p, day/night, dust- and vandal-resistant fixed dome camera with built-in AXIS License Plate Verifier application. Detect and verify vehicles in single lanes with speed up to 30 km/h (19 mph) in 2 to 7 meter distance (7 to 23 feet) to allow vehicle entry/exit into a controlled area. I/O port for direct control, built-in block and allow lists of up to 1000 license plates. License plate reading time less than 1 second.Acoustic sensors for audio analytics. Supervised digital input and output.
Case-open sensor. Axis Edge Vault with FIPS 140-3 level 3 certified.
Shock detection, IK10, IP66/67. Includes mounting bracket for wall/ceiling or junction boxes. License plate verification day and night. Powered by IEEE 802.3af/802.3at Type 1 Class 3. Midspan not includ
Product Number: 03631-001.
Technical specifications
Key specifications: video resolution up to 1920×1080; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 50 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 03631-001.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2.8" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.08 lux |
| Min illumination/ light sensitivity (B/W) |
0 lux |
Video
| Specification |
Value |
| Max video resolution |
1920×1080 |
| Max frames per second |
50/60 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
– |
Lens
| Specification |
Value |
| Focal length * |
3.4 – 9.8 / 10.8 – 28.2 mm |
| Horizontal field of view * |
100-32 / 29.1-11.0 ° |
| Vertical field of view * |
52-18 / 16.4-6.2 ° |
Pan Tilt Zoom
| Specification |
Value |
| Remote PTRZ |
– |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
On |
Audio
| Specification |
Value |
| Audio Support |
– |
| Built-in microphone |
– |
Network
| Specification |
Value |
| PoE Class |
3 |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| Secure keystore |
Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
| Axis Edge Vault |
Yes |
General
| Specification |
Value |
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-40 to 50 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67 |
| Designed for repaint |
Yes |
| Sustainability |
BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
