AXIS Q2112-E 60 mm 30 fps

AXIS Q2112-E 60 mm 30 fps

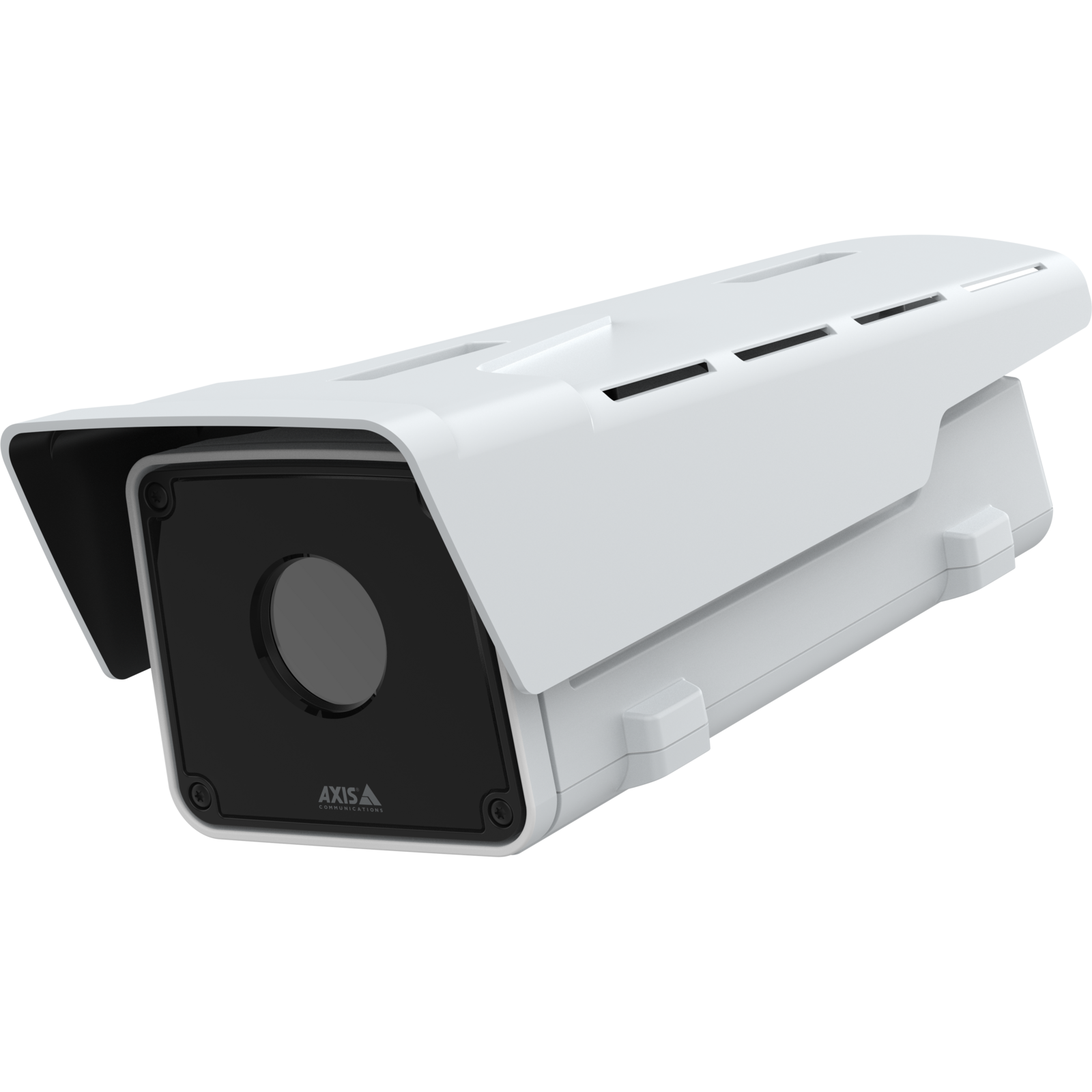

AXIS thermal network camera

  • It comes with a a variety of lens options for long range surveillance
  • Please note that lenses are not user changeable so order the correct version!
  • Robust and impact-resistant (IK10 and IP66/67), it includes built-in cybersecurity features to help safeguard your system
  • The product is halogen free
  • Edge-to-edge functionality lets you connect network speakers and other Axis network devices

$9,029.00 USD

Request a quote

Q2112-E is an ARTPEC 8 based VGA resolution thermal camera with exceptionally high thermal sensitivity (low NETD-value). It comes with a a variety of lens options for long range surveillance. Please note that lenses are not user changeable so order the correct version!
Robust and impact-resistant (IK10 and IP66/67), it includes built-in cybersecurity features to help safeguard your system. The product is halogen free. Edge-to-edge functionality lets you connect network speakers and other Axis network devices.
Q2112-E can be PT-mounted (PT head sold separately). When PT-mounted, Q2112-E supports guard tour, giving you to monitor very large and complex scenes.
No mounting accessory is included so an arm or a PT-unit must be ordered separately.

AXIS Product Number: 02612-001

Technical specifications

Key specifications: video resolution up to 800×600; IP66, IP67 rated; operating range -40 to 60 °C; PoE Class 4 powered. Manufacturer part number 02612-001.

Camera

Specification Value
Image sensor Uncooled microbolometer
Thermal sensitivity (NETD) <20mK @ 25C, F1.0
Thermal sensor resolution 640×480

Video

Specification Value
Max video resolution 800×600
Max frames per second * 8.3 / 30 / 8.3 / 30 / 30 / 30 / 8.3 / 30 / 8.3 / 8.3 / 8.3 / 30
Electronic image stabilization Yes
Thermal palettes Yes

Lens

Specification Value
Focal length * 25 / 19 / 60 / 10 / 25 / 60 / 35 / 35 / 19 / 10 / 100 / 100 mm
Horizontal field of view * 24.1 / 31 / 10 / 63 / 24.1 / 10 / 17 / 17 / 31 / 63 / 6.2 / 6.2 °
Vertical field of view * 18.5 / 24 / 7.7 / 46 / 18.5 / 7.7 / 13 / 13 / 24 / 46 / 4.6 / 4.6 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main

Audio

Specification Value
Audio Support Yes

Sys

Specification Value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4
Serial connectors Yes
Video motion detection Yes

Network

Specification Value
PoE Class 4

Security

Specification Value
Signed OS Yes

General

Specification Value
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
IP rating IP66, IP67

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 02612-001 Category: Tags: , , Brand:
