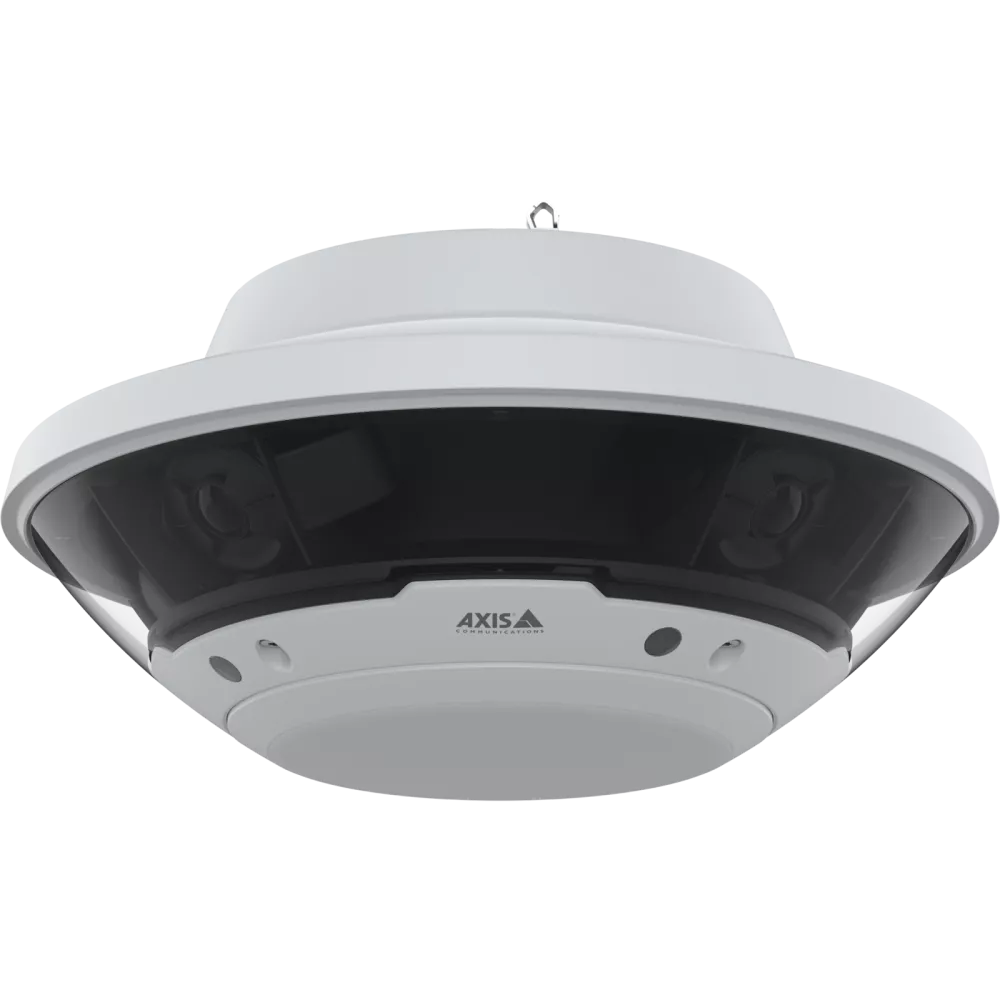

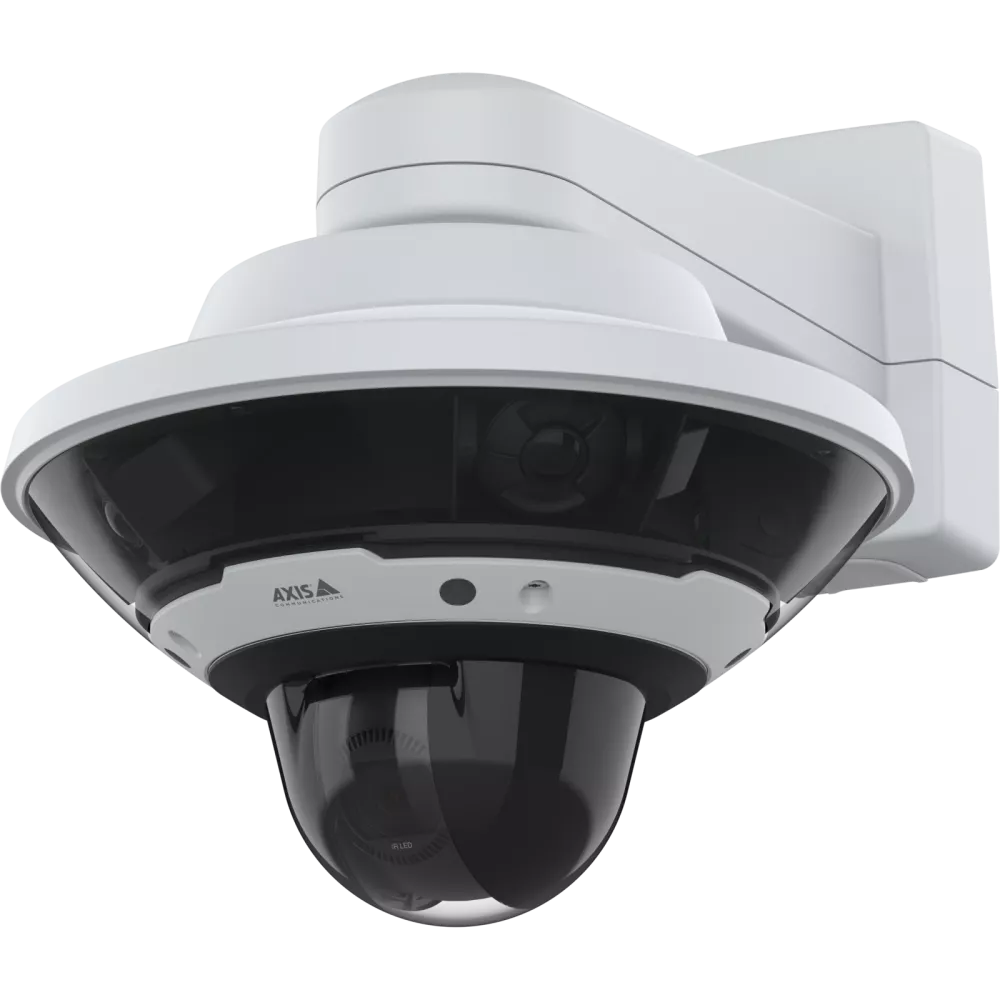

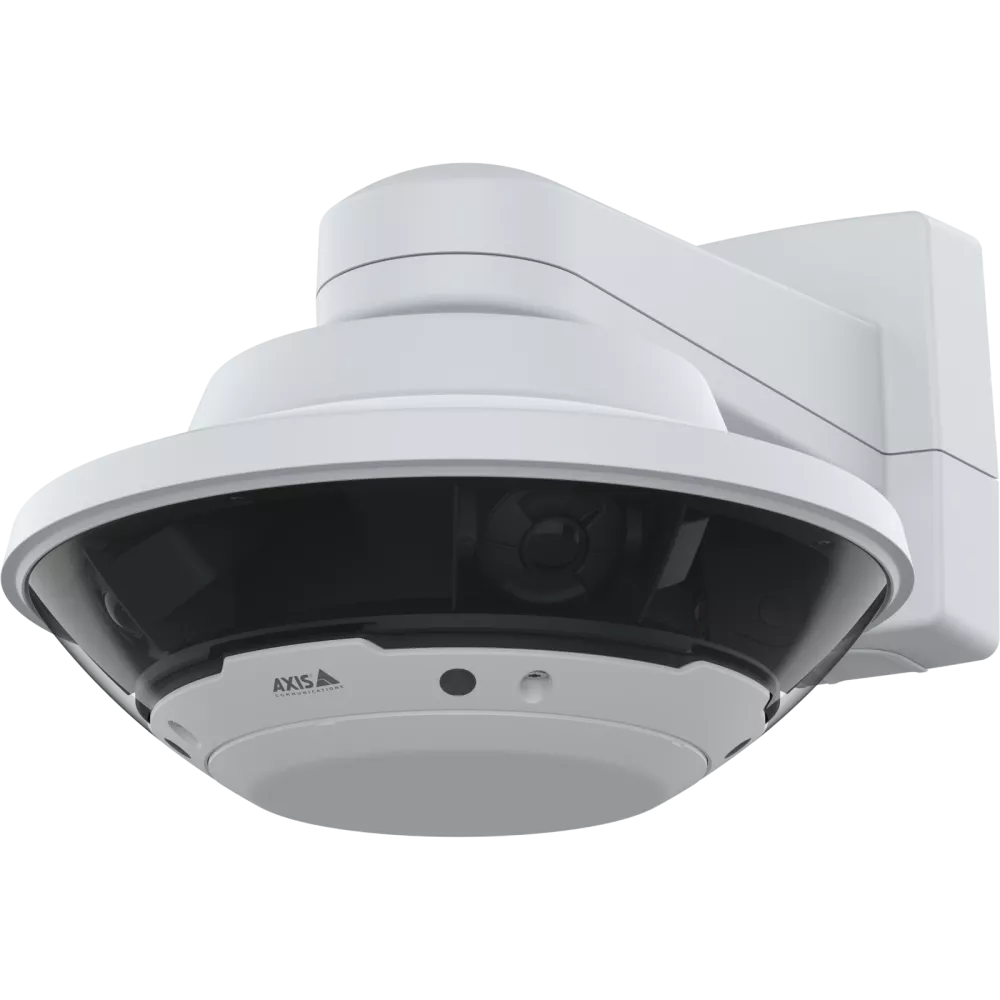

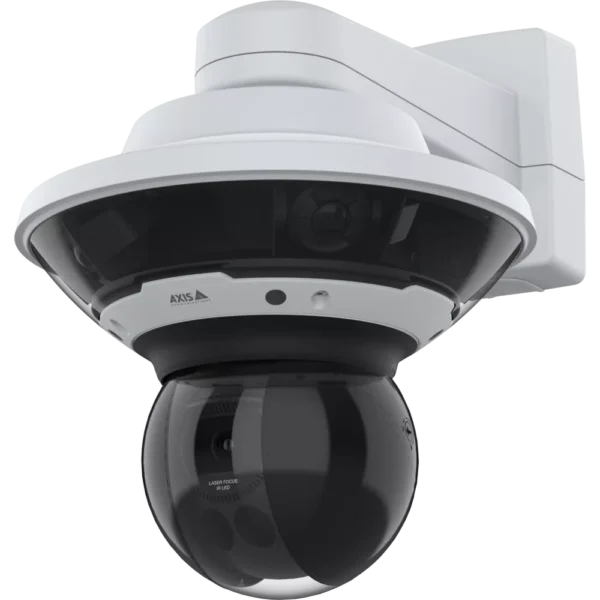

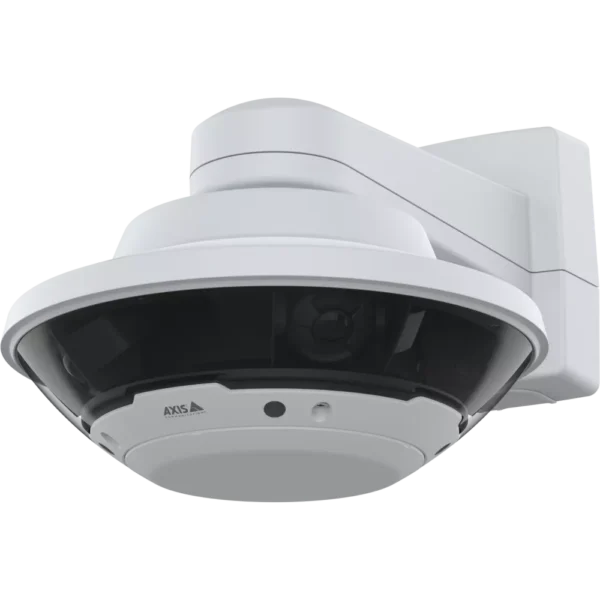

Designed for operation with AXIS Q61/Q63/P56 PTZ Series, this multidirectional camera delivers both 360° overview and great details. With a USB port, installers can insert a Wi-Fi dongle and quickly configure cameras while on site. This multidirectional camera offers four 5 MP sensors and delivers 360° overview for total situational awareness. With four ½” sensors, it ensures clear, bright images and better handling of shadows even in challenging light conditions, often reducing the need for IR illumination in dark scenes. This camera is specially designed for operation with AXIS Q61/Q63/P56 PTZ Series to capture high-resolution overviews and great details in one complete camera solution. And you can move from overview to zoomed-in detailed views with just one mouse click. It’s also easy to change lenses and adjust the field of view. For instance, you can use a wide-angle lens to monitor wide open areas, or a tele lens to get great details from a distance. What’s more, autopilot enables automatic PTZ tracking. And directional audio detection redirects the PTZ camera to the audio source whenever an audio incident is detected.
Product Number: 02943-001
Technical Specifications
Technical specifications
Key specifications: video resolution up to 2592×1944; IP66 rated; IK10 vandal-resistant; operating range -50 to 55 °C; WDR. Manufacturer part number 02943-001.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/2" |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | WDR |
| Min illumination/ light sensitivity (Color) | 0.06 lux |
| Min illumination/ light sensitivity (B/W) | 0.03 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 2592×1944 |
| Max frames per second | 30 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Specification | Value |
|---|---|
| Focal length | 3.7 mm |
| Horizontal field of view | 360 ° |
| Vertical field of view | 84 ° |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | – |
| Built-in IR | – |
| OptimizedIR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -50 to 55 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66 |
| Sustainability | BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
