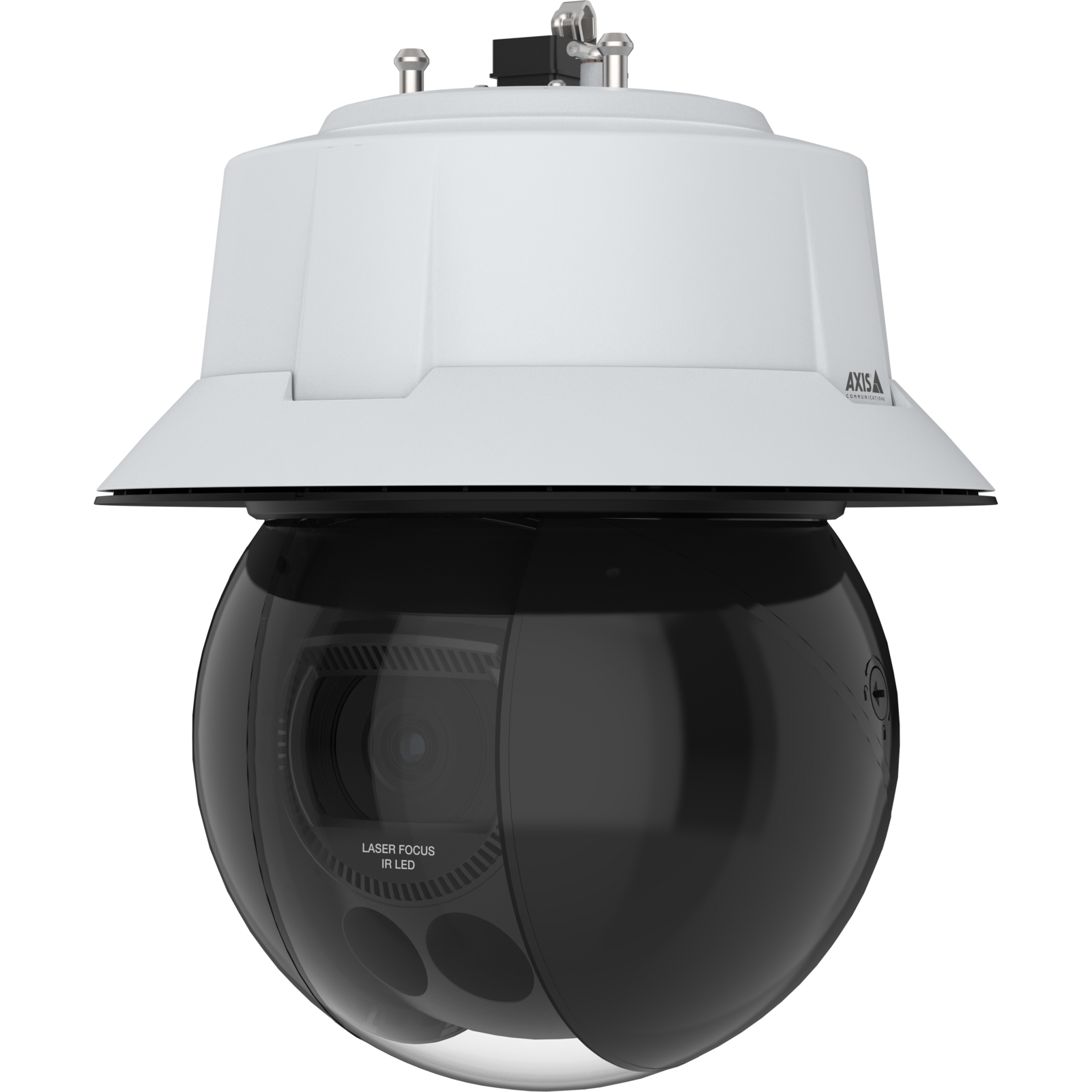

Features very light-sensitive ½” sensor, 31x optical zoom, IR illumination up 300M/984ft Laser Focus and quick-zoom. HDTV 1080 @50/60fps automatic selection, WDR, ARTPEC-9 with Deep learning processing unit enables detection and classification of objects. Auto tracking 2.Tour recording and Active Gatekeeper. Compass ruler overlay, Privacy mask with chameleon masking. IP66-, IK10-, and NEMA 4x, NEMA TS2 rated for temperatures up to 74C/165F°. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth. Smoked dome available as accessory. Midspan not included.
AXIS Product Number: 02976-301
Technical specifications
Key specifications: video resolution up to 1920×1080; 31x optical zoom; IP66, IP67 rated; IK10 vandal-resistant; operating range -50 to 55 °C; PoE Class 6 powered; Forensic WDR. Manufacturer part number 02976-301.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.06 lux |
| Min illumination/ light sensitivity (B/W) |
0.001 lux |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| TPM |
– |
General
| Specification |
Value |
| Built-in IR |
Yes |
| OptimizedIR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-50 to 55 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67 |
| Designed for repaint |
Yes |
Analytics
| Specification |
Value |
| Autotracking version |
Autotracking 2 |
| Orientation aid |
orientation aid PTZ |
Video
| Specification |
Value |
| Max video resolution |
1920×1080 |
| Max frames per second |
50/60 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
Yes |
Lens
| Specification |
Value |
| Focal length |
6.91 – 214.64 mm |
| Horizontal field of view |
60.6 – 2.0 ° |
| Vertical field of view |
36.5 – 1.1 ° |
Pan Tilt Zoom
| Specification |
Value |
| Pan range |
360 endless |
| Tilt range |
+20 to -90 |
| Guard tour |
preset position tour |
| Optical zoom |
31 |
| Digital zoom |
12 |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
On |
Audio
| Specification |
Value |
| Audio Support * |
Yes / – |
| Built-in microphone |
– |
Sys
| Specification |
Value |
| Audio detection |
– |
| Active tampering |
Yes |
| Alarm inputs/outputs |
– |
Network
| Specification |
Value |
| PoE Class |
6 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
