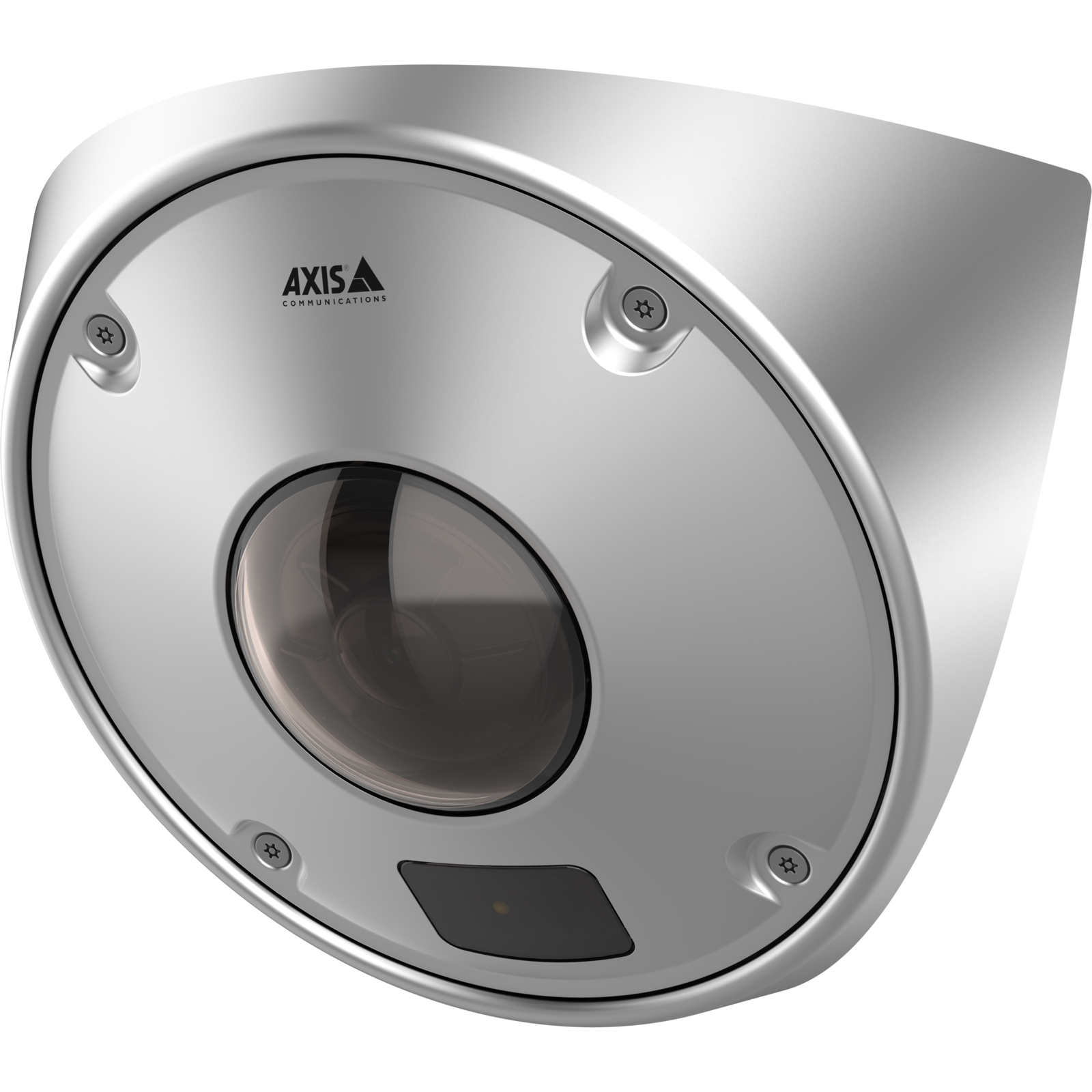

Robust stainless steel corner-mount camera replacing AXIS Q9216. This all-in-one device combines sharp video, audio, actionable analytics, indication RGB LEDs, white illuminator, built in microphone and speaker supporting 2 way communication with echo cancelation. Comes with fall detection, and Axis audio analytics (glass, scream, cough). Other key features: Anti-ligature, IK11, IP66, IP6k9k, 5MP, A8 DL Soc, Compatible Audio Manager Pro, forensic WDR, >89,2° VFoV, >115° HFoV, 940nm LEDs for invisible IR.
AXIS Product Number: 03138-001
Technical specifications
Key specifications: video resolution up to 2880×2160; IP66, IP69, IP6K9K rated; IK11 vandal-resistant; operating range -20 to 50°C °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 03138-001.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/1.7" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.06 lux |
| Min illumination/ light sensitivity (B/W) |
0 lux |
Video
| Specification |
Value |
| Max video resolution |
2880×2160 |
| Max frames per second |
30 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
– |
Lens
| Specification |
Value |
| Focal length |
3.7 mm |
| Horizontal field of view |
115 ° |
| Vertical field of view |
89.2 ° |
Pan Tilt Zoom
| Specification |
Value |
| Remote PTRZ |
– |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
– |
Audio
| Specification |
Value |
| Audio Support |
Yes |
| Built-in microphone |
Yes |
Network
| Specification |
Value |
| PoE Class |
3 |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| Secure keystore |
Secure Element (CC EAL6+) |
| Axis Edge Vault |
Yes |
General
| Specification |
Value |
| Remote focus |
Yes |
| Remote zoom |
– |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-20 to 50°C °C |
| Outdoor Ready |
– |
| Vandal rating |
IK11 |
| IP rating |
IP66, IP69, IP6K9K |
| Designed for repaint |
Yes |
| Sustainability |
BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
